Products of Electrosmith
Electrosmith believes that designing audio devices is an art form, not just a science.
That belief drives the creation of a seamless hardware and software platform that lets audio designers, musicians, and developers focus on making the world sound better – instead of reinventing the wheel.
Since its launch in 2019, the Electrosmith Daisy platform has powered million-dollar Kickstarter audio products, been taught in Ivy League university courses and brought cutting-edge sound to interactive art installations around the world.
New
Electrosmith - Daisy Patch Submodule
sold out at the moment
The Daisy Patch Submodule is a powerful embedded DSP platform for developing custom Eurorack modules. It combines a fast STM32H7 processor, high-fidelity stereo audio conversion and extensive memory with signal conditioning designed specifically for the Eurorack environment.Developers only need to create a carrier board and user interface, while the Patch Submodule handles audio processing, CV, gates and digital connectivity. Its 480MHz processor and 64MB of RAM support advanced applications such as oscillators, samplers, granular processors, effects and long-form audio looping with buffers of up to ten minutes.Firmware can be created using C++, Arduino, Pure Data, Max/MSP Gen~ and other supported environments. The open-source DaisySP library provides ready-made DSP building blocks for synthesis, filtering, dynamics and audio effects, while firmware can be uploaded over USB using the browser-based programmer.Stereo audio I/O, twelve analog inputs, CV and gate connections, GPIO and multiple communication protocols make the Daisy Patch Submodule a flexible foundation for commercial products, prototypes and experimental Eurorack instruments. The hardware includes reverse-power protection and is FCC and CE tested for integration into finished designs.Features• STM32H7 processor running at 480MHz.• 24-bit stereo audio at 96kHz.• 64MB RAM for audio buffers of up to ten minutes.• 12 analog inputs for bipolar CV signals or potentiometers.• Two 12-bit CV outputs.• Two gate inputs and two gate outputs.• Twelve general-purpose GPIO connections.• USB firmware loading via an open-source web programmer.• Supports C++, Arduino, Pure Data and Max/MSP Gen~.• SDMMC, SPI, UART, I2C and USB connectivity.• Reverse-power protection included.• FCC and CE tested and compliant.The mini JTAG header is not included.
€52.00*

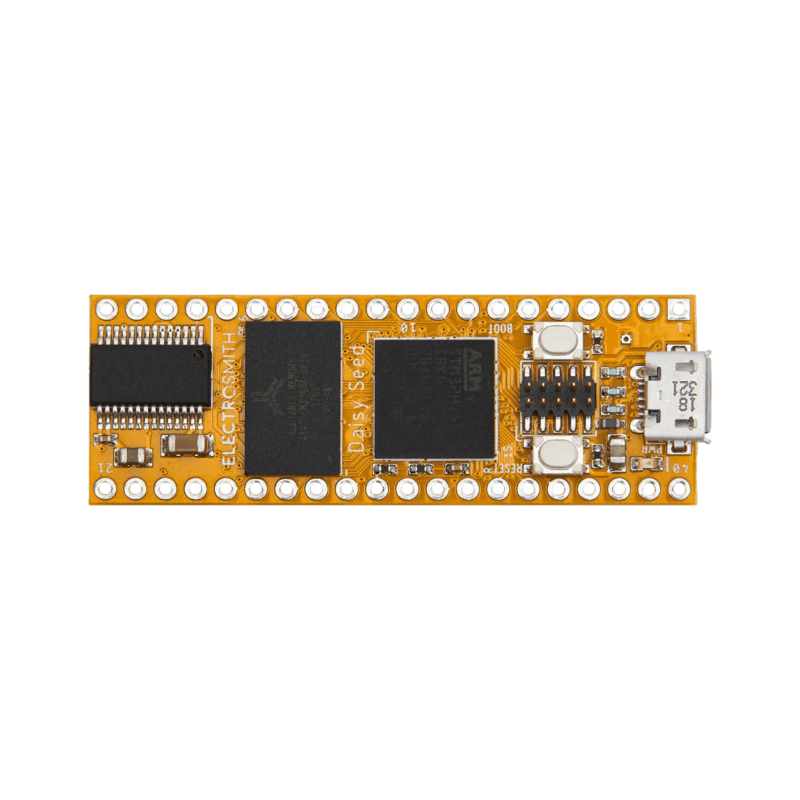

Electrosmith - Daisy Seed (With Headers)
available
Daisy is an embedded music platform that provides everything needed to build high-fidelity audio hardware:Plug in a USB cable to power the board and start making sound, upload an example program over USB, and tweak it in real time. Firmware developed for Daisy is released free under a permissive open-source licence, and the platform is programmable in C++, Arduino, Max/MSP Gen~ and Pure Data.Hardware highlights include stereo audio I/O at 96 kHz / 24-bit (AC-coupled), an ARM Cortex-M7 MCU running at 480 MHz, 64 MB of SDRAM (enough for up to 10-minute audio buffers), 8 MB of external flash, an SD-card interface, 31 GPIOs, 12 16-bit ADC inputs, 2 12-bit DC-coupled DAC outputs, PWM outputs and common serial buses (SPI, UART, SAI/I2S, I2C), plus a dedicated VIN pin for external power – everything you need for complex, standalone audio devices.Features:• Stereo audio I/O – 96 kHz / 24-bit audio hardware (AC-coupled)• Programmable in: C++, Arduino, Max/MSP Gen~, Pure Data• ×31 GPIO, ×12 ADC inputs (16-bit), ×2 DAC outputs (12-bit, DC-coupled)• ARM Cortex-M7 MCU running at 480 MHz• 64 MB of SDRAM for up to 10-minute audio buffers, 8 MB external flash• SD-card interface, PWM outputs, and various serial protocols for external devices (SPI, UART, SAI/I2S, I2C)• Dedicated VIN pin for external power
€46.00*

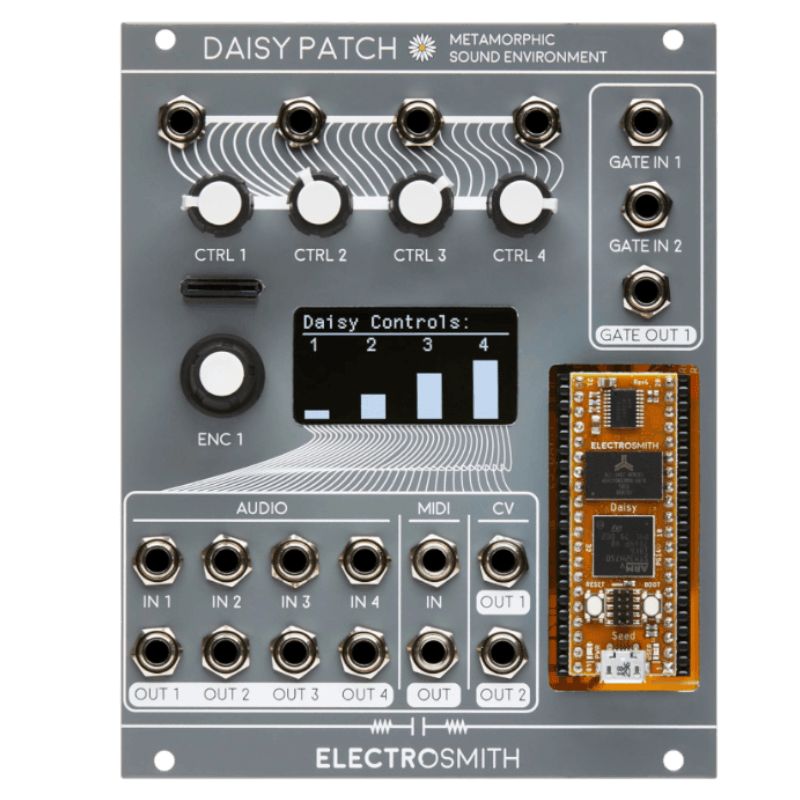

Electrosmith - Patch (Assembled)
sold out at the moment
Daisy Patch is a metamorphic sound environment built on the Daisy DSP platform, a blank-slate hardware design that can transform into a wide range of digital instruments.The unit provides quad 24-bit audio I/O (up to 192 kHz) and a browser-based programmer for uploading a growing library of ready-to-run firmware – samplers, granular engines, physical-model voices and more – without the need for special upload tools.Custom firmware is authored with Pure Data, Arduino, Max/MSP Gen~, or C++, and starter templates accelerate development. Onboard USB connectivity and a high-resolution OLED simplify debugging and real-time interaction, making the Patch both a performance device and a development platform.The package includes one Daisy Seed (65 MB) and ships as an open-source DSP platform ready for experimentation, prototyping, and deployment as a compact standalone instrumentFeatures:• Open source DSP platform• Vast library of ready to go firmware files• Quad 24-bit audio IO, up to 192kHz• MIDI IO (TRS+USB)• High res OLED display
€375.00*
Electrosmith - Patch.Init() (Assembled)
sold out at the moment
If you can code it, you can make it – patch.Init() is an open-source Eurorack development interface built around the Daisy Patch Submodule that converts the submodule into a versatile DSP module.Supplied with a Daisy Patch Submodule, the platform pairs a utilitarian front panel (open-source under MIT) whose parameter names match the code with high-fidelity audio performance: 24-bit, 96 kHz sample rate, an STM32 H7 processor and 64 MB of SDRAM. Stereo I/O and the Patch Submodule’s I/O options enable everything from samplers and granular processors to reverbs, glitchy effects and complex oscillators, while the freely available front-panel files let designers adapt the hardware for bespoke or commercial modules without licensing friction.Features:• Eurorack development platform for the Daisy Patch Submodule• High Fidelity Daisy architecture: 24-bit, 96kHz sample-rate, 64MB SDRAM, STM32 H7 processor• Stereo I/O• Utilitarian design, with code-matching front panel parameter names
€225.00*

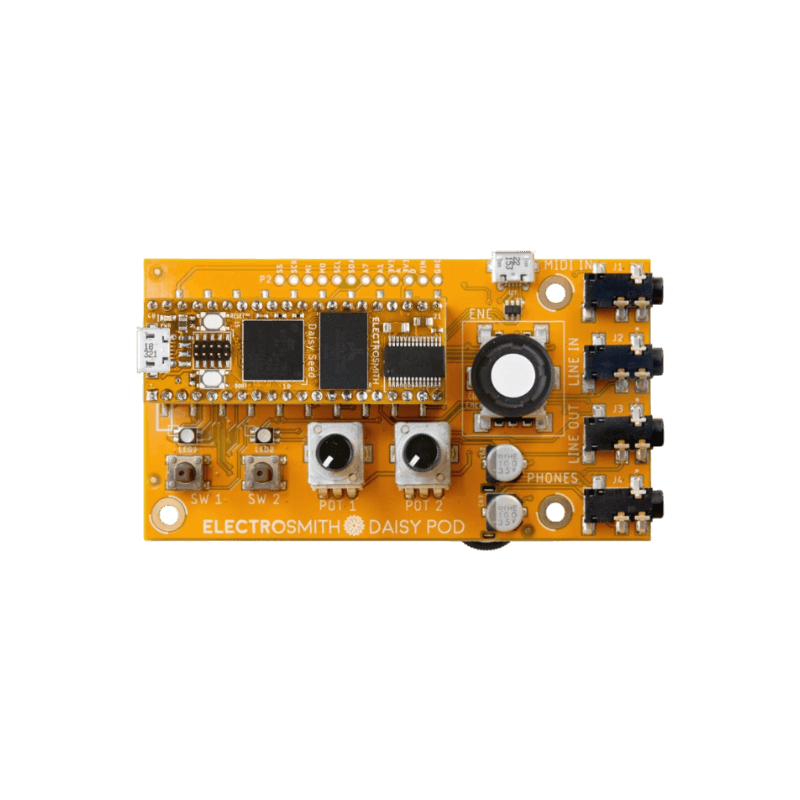

Electrosmith - Pod
available
The Pod is a compact USB-powered breakout board for the Daisy, bundled with a Daisy Seed (65 MB), that brings stereo line-level I/O, a headphone output with dedicated volume control and a TRS MIDI input into a small development-friendly package.Onboard controls include two push buttons, two RGB LEDs and a rotary encoder with push switch, while an SD-card slot and a secondary micro-USB port expand connectivity for standalone projects. Designed as a convenient prototyping companion, the Pod provides the essential audio and control interfaces needed to move a Daisy project from idea to playable hardware. Note: powering the Pod from a computer can introduce hum via ground loops; using an external USB power source typically improves audio performance.Features:• USB Powered• 3.5mm stereo jacks for line level audio I/O, headphone output, and TRS MIDI input.• Built In headphone amplifier with dedicated volume control.• 2 Buttons, 2 RGB LEDs, and rotary encoder with push button.• SD Card Slot, and secondary USB micro port
€99.00*
