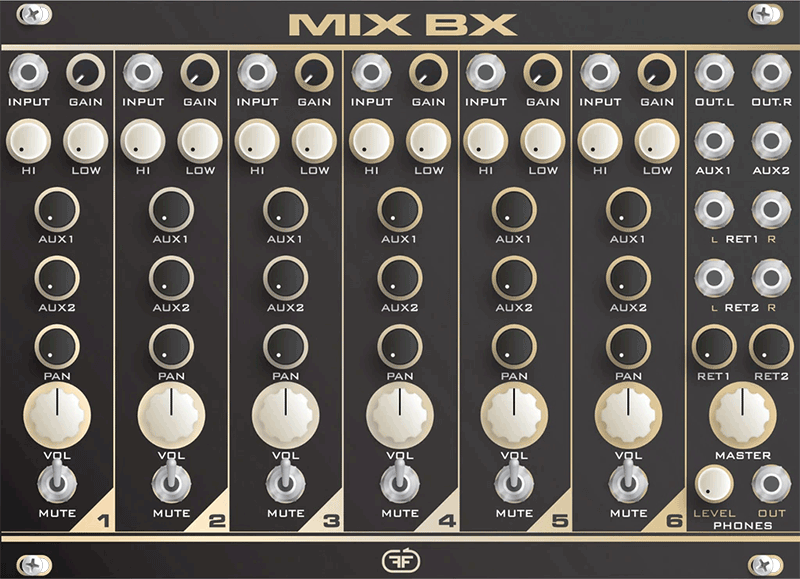

Feedback Modules - MIX BX
Product information "Feedback Modules - MIX BX"
As probably many of you know the MIX BX (like our PRE BX channel strip) is based on a very popular mixer used by techno artists in the nineties and loved for its specific sound.
Features:
• Input Level from -50dBm to -10dBm
• EQ Hi +-10dBm/10kHz shelf type
• EQ Low +-10dBm/100Hz shelf type
• Output Level 20Vpp
• 6 mono input jacks ( 1 per channel)
• Pot controls for channels: Gain, Hi, Low, Aux1 send, Aux2 send, Pan, Volume
• 6 mute switches ( 1 per cannel)
• Pot controls for master: Master Level, Headphone Level, Aux1 Return, Aux2 Return
• 2 mono aux send jacks
• 4 mono input jacks for two stereo Aux returns
• 2 jacks for master left and right out
• One 3,5mm stereo jack for headphone out
• Boxed 10 pin euro power (+12V / -12V)
DIY-Kit-Type:
SMD-Kit-2. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. It includes SMD and through-hole parts! For build guide, more info, videos etc. please check the buttons below.
Features:
• Input Level from -50dBm to -10dBm
• EQ Hi +-10dBm/10kHz shelf type
• EQ Low +-10dBm/100Hz shelf type
• Output Level 20Vpp
• 6 mono input jacks ( 1 per channel)
• Pot controls for channels: Gain, Hi, Low, Aux1 send, Aux2 send, Pan, Volume
• 6 mute switches ( 1 per cannel)
• Pot controls for master: Master Level, Headphone Level, Aux1 Return, Aux2 Return
• 2 mono aux send jacks
• 4 mono input jacks for two stereo Aux returns
• 2 jacks for master left and right out
• One 3,5mm stereo jack for headphone out
• Boxed 10 pin euro power (+12V / -12V)
DIY-Kit-Type:
SMD-Kit-2. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. It includes SMD and through-hole parts! For build guide, more info, videos etc. please check the buttons below.
| Current draw +12 V [mA]: | 50 |
|---|---|
| Current draw -12 V [mA]: | 50 |
| DIY Level: | Advanced |
| Depth [mm]: | 35 |
| Width [HP]: | 35 |
| Format: | 3U |
| Panel / Color: | Black FR4 |
