The MetaModule puts real knobs and jacks on virtual software modules. Step back from the computer and make music with hardware, while keeping the flexibility and expandability of software.THIS PRODUCT IS ASSEMBLED AND NO DIY!The MetaModule comes with over 160 built-in modules from 4ms Company, Befaco, HetrickCV, NonlinearCircuits, and Scanner Darkly, plus clones of popular classics such as the Mutable Instruments Eurorack modules, fun physical modeling algorithms, and lots of handy utilities.All of the included modules are also available on the computer using the free program VCV Rack. Whether you make patches on VCV Rack and transfer them to the MetaModule, or if you just create patches directly on the MetaModule, there are plenty of creative modules to inspire new ways to make music.MetaModule PluginsIf the 160+ built-in module aren’t enough, you can load more modules as plugins. Already there are over 200 modules in third-party plugins from Bogaudio, Valley, ChowDSP, NANO Modular, and the list is growing. We have an SDK available to make it easy for VCV Rack plugin developers to convert their plugin to a MetaModule plugin. Our licensing terms are non-restrictive: developers are welcome to distribute their plugin in any way they wish, commercially or not.Mapping Knobs and JacksThe MetaModule has 12 knobs that can be mapped to virtual knobs. Each knob can be mapped to up eight virtual knobs, and each mapping can have a different range and offset. You also can save a group of mappings as a Knob Set and switch between Knob Sets with the encoder. You also can map the 8 inputs and 8 outputs to virtual module jacks. Also, the MetaModule is a USB MIDI host, so you also can map MIDI CC, note, gate, and other parameters to knobs and jacks.ExpandersThere are lots of ways to customize your MetaModule. A Wifi expander allows you to wirelessly transfer patches from your computer. Add eight more knobs with the Knob expander, or buttons with the Button expander. A CV/Audio expander adds more high-resolution inputs and outputs, and the Gate In/Out expander adds not only gate jacks but also TRS MIDI and I2C.Under the HoodThere are six CV/Audio inputs, two gate inputs, and six CV/Audio outputs. The CV/Audio jacks are all 24-bit, 48kHz DC-coupled, -10V to +10V. A USB-C jack accepts MIDI devices and thumb drives. Patches and plugins can be loaded via a USB drive or microSD Card, and internal flash memory lets you save patches you always want to come back to.The processor is more advanced than anything 4ms has used in the past, and is among the most powerful processors found in Eurorack. Startup time and latency are blazingly fast.Features:Patches• Patches are loaded from microSD Card, USB drive, or via the Wifi expander• Patches can be optionally saved onto internal flash memory• Create patches using VCV Rack or directly on MetaModule• Patches can be given a name and descriptionMappings• Map each physical knob to up to 8 virtual knobs• Set range and offset for each mapping, including inverted control• Knob mappings are grouped into Knob Sets, and changing Knob Sets can be done quickly without menu-diving• Map physical jacks to virtual jacks, seamlessly making splits/mults• Add or edit modules, cables, and mappings in real-time while the patch is playing• Create alias names for mappings like "Kick Drum Level"Interface• Simple, intuitive graphical interface lets you zoom in on details, or zoom out to get a big picture• Patch View displays the patch as faceplates and cables, with knobs, buttons, and lights animating in real-time• Knob Set View simplifies the display, showing only the mapped knobs for the current Knob Set• Module View shows just one module and lists the names of each jack, knob, and control legibly• Mapping View lets you adjust details of a knob mapping• Adjust styles and visual preferences to your liking• Save, rename, duplicate, and delete patches• Firmware updater and plugin loader read from microSD Card or USB driveHardware• 12 Knobs• 8 CV/Audio outputs, 24-bit 48kHz, -10V to +10V, DC-coupled• 6 CV/Audio inputs, 24-bit 48kHz, -10V to +10V, DC-coupled• 2 Gate inputs• USB-C jack: MIDI Host or MSC (External drive) Host• microSD Card slot• Internal Flash RAM for additional patch storage• Dual-core 800MHz Cortex-A7 plus Cortex-M4 co-processor• 512MB DDR3 533MHz RAM• Bare-metal operation for fast startup and low latencyDIY-Kit-Type:Assembled unit. This is completely ready to use, nothing to solder or to assemble.
ADDAC714 is a dual channel soft clipping module.Diode based passive clipping acts as a “brick wall” limiter with a fixed knee given by the inherent diode physics. A passive RC low pass circuit adds a 3,3KHz -3db low pass filter which sculpts the overall tone while also adding further character to the effect.At the top an On/Off [BYPASS] switch routes the signal into the Effect (Up: Active) or to the bottom output gain stage (Down: Bypassed).The amount of clipping is set by the [GAIN] control, it mostly works as a threshold control for how much clipping will be applied. As more clipping is applied the signal’s amplitude will also decrease, to compensate for this we set up a gain compensation stage to keep the output amplitude balanced across the Gain range.Symmetry chooses between bipolar clipping or positive clipping, this relates to the harmonics generated, bipolar for odd and even harmonics (up position) and unipolar for odd harmonics only (down position).At the second stage, an op-amp based x2 output gain with a clipping led, which monitors the clipping at the output, and an [Output] control to set the output volume.Having the top and middle gain stages provides flexibility allowing the user to completely distort the signal on the top stage and tame it’s output level with the second stage.At the bottom, Input jacks for both channels (Left input is normalled into Right input) and output jacksDIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.

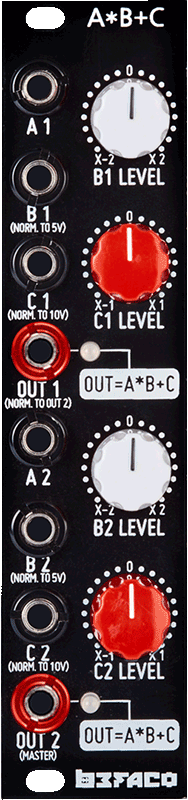

A*B+C is a dual, four-quadrant multiplier with VC Offset that can act as Dual Ring Modulator, Dual VCA and Four Channel Mixer. Each section can perform the analog multiplication of two signals (A and B) and add an offset (C).Features:• Dual-channel bipolar VCA’s• Adjustable VC Offset per channel.• AM and Ring Modulation capabilities.• Output allows it to work as a four-channel mixer.DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
Chopping kinky is a voltage controllable, dual channel wavefolder.As an unique feature it has a chop out that will choose between both channels with a zero cross detector or an external gate.• A wavefolder converts simple signals into richer and more dynamically changing ones. In contrast to a filter, wave folding adds harmonic content to the waveform. It works by amplifying the waveform until it begins to saturate, then rather than clipping, the waveform gets folded back in on itself.• Each of the module’s two channels has a unique wave folding profile. At each input, there are two CV inputs for controlling the level of waveshaping including one that passes through an attenueverter.• Chopping Kinky is DC coupled allowing it to be used for both CV and audio duties; to generate harmonics on an audio signal or kinking LFOs and envelopes.Features:• Two unique wavefolder circuits• Two CV inputs per channel, one with attenuverter.• DC Coupled inputs allowing CV signals.• Chop out with zero cross detector.DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
A Multi FX module based on game carts!Fx Boy is a multi-FX module designed in collaboration with several talented manufacturers. This is an effect unit with CV control over the parameters and dry/wet control, with a Built-in CV controllable four bands EQ.Each effect is physically hosted in a hot-swappable game cart and designed by a different manufacturer: Touell Skouarn with Skuara a harsh fuzz with overdrive, Instruo with micro Phaser, a two-flavoured Phaser, Feedback modules with a vintage Flanger, XOR with FX-Girl, a digital double effect module: Delay + Granularizer, Making sound machines with an analog Wave folder, Tesseract with a bit crusher and Befaco Trash distortion!Please note that the cards add current consumption on top of the values stated here.Features:• CV control over all parameters and dry/wet• CV controllable four-band EQ, routable post or pre-effect.• Selector for two different flavours of each cart.• Open specifications to design your own carts• Hot swap for all carts. (A tiny pop can occur depending on the cartridge design)DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
Experimental synth voice focused on ambient pads and drone-like soundscapes.Features:• Stereo External input with selectable gain.• 5-second looper Records either the stereo input or the module’s output• Sine oscillator• Supersaw oscillator• Wavetable oscillator that uses the Looper buffer• Multimode filter: low-pass, band-pass, high-pass, and comb filter.• 3-band resonator• 2-tap echo• Reverb with macro control for size, filtering, and direction.• CV Control with attenuators on most parameters.• Various types of self-modulation with configurable routing and control over level and speed.• External synchronization via sync input.• Powerful randomizer with four different targets, three levels of intensity and undo/redo.• Knobs catch behavior functionality for re-coupling parameters’ positions.DIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
This is our take on an analog spring reverb module. Featuring VCAs for the two available inputs (with different routing), CV control for DRY/WET and visual feedback for signal levels at input and output of the tank.Reverberation can be defined as the sum of all the reflections created from an initial sound source within a space, at a point within that space, over time.To simulate this effect we can pass a sound through a spring with two transducers at either end. As the sound propagates it will cause the spring to expand and contract, creating a series of reflections that are picked up by the transducers (along with the original sound). This creates a simulation of reverberation with (in the case of spring of the reverb) a characteristic and classic colour.Electronically generated audio will usually sound starkly different to acoustically generated sound. This is more-often-than-not a desirable thing, but there are times when you might want to bring the “depth” of an acoustic environment back into your mix.The obvious difference between acoustic and synthesised sounds is that acoustic instruments have resonators, and exist in reverberant spaces. One way to add depth to an electronic sound is to somehow simulate the characteristics of a space, and mix this with the original signal.Features:• Two CV controlled audio inputs. In 1 (routed to Dry) and In 2 (routed directly to the tank)• Two independent Mix and Wet output.• High-pass filter on tank’s input to control the colour of the reverberation.• Vu-Meter to visualize level on Wet output.DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
This is our new collaboration with Robin Vincent aka Molten Music Technology. A Stereo bypass module to gate control the send of your signals to your favorite effect!Molten bypass features a hard/soft bypass control, to hard cut the return of your effect or allow the long tails of your reverb to stay after you bypass the effect. Also a gate/latch control to use either triggers or gates for control and a gain control for the returned signal.Festures:• Full stereo signal path• DC coupled• Hard or soft bypass selection• Gate or Latch possibility• Manual or Gate control• Gain control over the returnDIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
Cosmos is a new kind of module that will help you to creating complex modulation, sounds, patterns with ease and will lead you to new sounds territories.Inspired by early analog computers, Cosmos is a unique, innovative, very flexible and fully analog module allowing it to be used as: VCO, LFO, Ring Mod, Polarizer, “VCA”, “LPG”, Phase Lock Loop, Cross-Modulation, Minimum, Maximum, Logic Gates, Waveshaper, Complex gate generator, Fuzz, Distorsion, Gate extractor, Trig extractor, Gate generator, Voltage generator, Trig Generator, comparator, window comparator, complex comparator, Half-Rectifier, Full-Rectifier, Inverter, Buffered Multiples, Mixer, Difference, Compressor, Sidechain, compressor, VC Clipper, VC Switch, Clock doubler, Envelope follower, and more.With its wide fields of application Cosmos can replace many modules but it will also bring new colors to your palette thanks to its unique character. This makes Cosmos the ideal module whether you have a small case or a big system. 100% analog and with an intuitive interface Cosmos is also very easy to use, no menu and button combo problems.Inspired by the past and crafted for the future, 100% analog Cosmos was not only thought to be the center of any system but also to blend perfectly with the rest of your case to form a consistent and coherent system.Cosmos was designed not only to be a swiss army knife module but also to push you to explore and you help create new sounds and explore sonic territories that were previously unattainable.DIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.

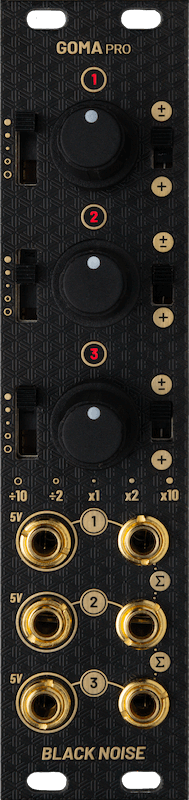

The GOMA Pro pushes the boundaries of the attenuverter-mixer concept.Attenuator, attenuverter, offset generator, voltage generator, waveshaper, distorsion, GOMA Pro can do all of that and more. Engineered for precision, GOMA Pro is crafted using high-quality components to ensure maximum accuracy, including low-tolerance resistors and low-noise op-amps.GOMA Pro offers 3 channels fully analog to amplify (up to x10 gain!), attenuate or polarize (attenuverter) any signal, from CV, audio to line level sources.Additionally, each channel can act as a high precision voltage generator (–10V to +10V) to offset another channel or control external parameters.The 3 channels can be processed separately or summed through cascade mixing, which can extend further than a single module since all the GOMA family (I, II, Pro) can be daisy chained to unlock virtually infinite mixing.DIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
VOLTAGE PROCESSOR have been designed to pack a lot of features in a small module.Here a some of the features you can achieve with VOLTAGE PROCESSOR. You can find how to setup those features in the manual below.Features:• Dual VCA• Stereo VCA• CV Crossfader 2:1• CV Crossfader 1:2• Dual AM• CV PAN• Dual Attenuator• Dual Inverter• Dual Offset generator• Dual Voltage generator• Dual Exponential converter• Logarithmic converter• Dual PWM• Dual CV overdrive• Dual waveshaper• Complex waveshaper• Dual RingMod• RindMod• Compressor• Sidechain compressorDIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
The Dannysound Dynamics is a compressor / expander originally designed to process drums but like most processing devices, it can be used for a wide variety of applications.The module comprises of:• Compressor / Expander• Sub Bass Enhancer• 3 Band Inductor-based EQ• Harmonic ExciterThe compressor / expander section uses a discrete transistor-based circuit that allows for soft clipping when overdriven.The envelope detector is known as a feedforward type of circuit; taking it’s input from the signal before it goes to the compressor rather than after.This type of circuit is known for having fast attack times.The Sub Bass enhancer has its own compression circuit that “ducks” the initial transient. This allows the sub bass to be increased without distortionon the transient peaks increasing the overall level.There is a MIX control to allow the unprocessed signal to be mixed back in with the processed signal.The 3 band EQ is an inductor based LCR design. After trying out various EQ topologies this was the design that sounded the nicest.When overdriven it gives a nice “bite” to the sound and it has a certain characterful charm that’s hard to put into words.The controls have a response that are subtle to begin with and get more pronounced as the controls are increased.The Harmonic Exciter adds a little distortion to the high frequencies which bring out the sparkle of cymbals or the snap snare drums.The operating bandwidth can be switched between Low (snare drum snap) or High (Cymbals sparkle).There are inputs for side chaining and control with an external envelope as well as an envelope out to make the envelope detector output available to drive other modules.It also features separate inputs and outputs for the Compressor / Expander and EQ sections, so they could be used as 2 separate modules.Features:• Compressor / Expander• Sub Bass Enhancer• 3 Band Inductor-based EQ• Harmonic Exciter• Envelope In/Out• Sidechain Input• Separate In/Out for Comp/Exp and EQ sectionsDIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
The Timbre is a 6HP Eurorack module based on the wave folder section of the Buchla 259 oscillator as implemented in the Music Easel.The wave folder adds extra harmonics to input signals that have low harmonic content to creating rich and interesting timbres.Typical input sources to use would be Sine and Triangle waves but you are welcome to try other sources as well!The Dannysound Timbre adds an extra input to the Buchla design to allow 2 oscillators to drive the wave-folder simultaneously –this dramatically increases the range of possible tones that can be generated and allows the folder to go wild!Buchla 259 inspired waveshaper, the perfect module to put in-between your Dannysound Cali and EN129 oscillators!Features:• Osc1 / Osc2 Mix – Adjusts mix between oscillator 1 and 2 inputs, also acts as an attenuator if only one of the inputs is used.• Timbre Control – Adjusts the overall wave fold amount.• Timbre CV – Bipolar (attenuverter) controls the Timbre CV input.• Symmetry – Adds an offset to the input so the top half of the wave starts folding earlier.• Blend – Mixes between the clean and effected sound.DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.

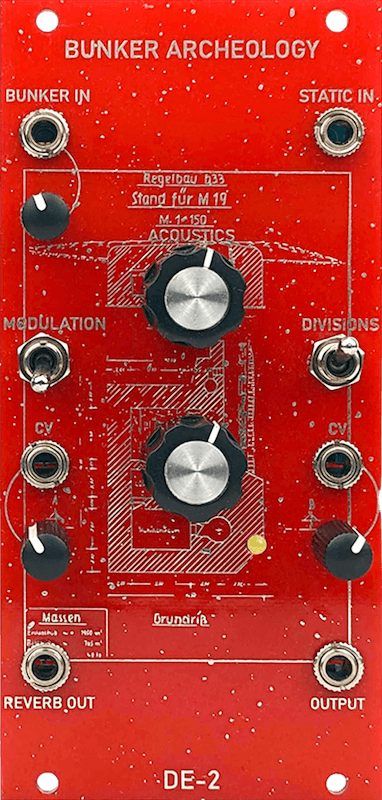

This module simulates the sounds of a Bunker by pushing a digital reverb tank to it’s limits, then adding in feedback and static tremolo circuits!Bunker Archeology is a 12HP Eurorack module and the world’s first ”bunker simulator”. The module is composed by two different sections: an overdriven digital reverb “tank” as well as frequency driven tremolo/VCA. The module is normalised so the incoming signal is first sent to the reverb and then to the static (tremolo) circuit. The latter can also be used as a crude (albeit backwards) VCA. However one can easily self patch the module so the signal goes the other way around by inserting an incoming signal to the “Static in” and patching “Output” to “Bunker In”.Using “Bunker Input” you can attenuate the incoming signal, this is helpful since the reverb tank is pushed to its very limits. Depending on how you attenuate the incoming signal (also of course depending on how “hot” the incoming signal is, digital oscillators for instance tend to be a lot hotter) the module will behave differently, not just in regards of distortion. You can regard the whole circuit as a bastardized envelope follower of sorts (that being said placing a VCA before the input is usually a fun idea, or any modulation of frequency really). When the modulation switch is switched on (ie. Downwards) it causes the reverb tank to gradually shut down (or attacking itself), shorting out the tank using a LDR and a LED. This creates interference and noise which is sent to the static circuit. It can be used for drones (shaped with the acoustics knob) or percussive sounds. The modulation knob lets you dial in the amount and character of that sound and how much of the tank that should be shorted. This knob also has CV control (expecting 0 to 5V and ignoring negative voltages).The kit includes all parts to build the module EXCEPT the reverb brick, which you can get here: http://www.banzaimusic.com/Accutronics-Digi-Log-BTDR-3H.htmlThe “Acoustics” knob lets you change the overall acoustics of the bunker which in turn effects how static behaves . Since the static circuit is frequency driven, altering the frequency changes the overall behaviour of the static circuits speed and/or stuttering. Feedback is the amount of signal being fed back into the reverb tank. “Reverb Out” is a dedicated output for the reverb section and can be used for mixing downstream in your rack for those times you don’t want the static interference, just a grainy lo-fi reverb). You can of course also use an external mixer to combine the two outputs. Plugging in a cable into the “Reverb Out” will not stop sending the reverb signal to the static circuit.“Static in” is a dedicated input for the static circuit. Plugging in a cable here will remove the reverb from the static circuit completely (but still present at the reverb out, as described above). The “Divisions” switch determines the overall speed of the static circuit. There are three different options. The CV input on the static side of the module lets you replace the frequency driven tremolo with a positive CV. Remember that this works as a backwards VCA, ie. shutting the signal up when voltage goes high and leaving it audible when voltage is low. It expects a 0- 5V incoming signal and might not track your incoming envelope perfectly but it does its job! The CV knob lets you either dial in the tremolo amount (when no cable is inserted into “CV”) or attenuates the incoming CV signal. At about 11-12 a clock using the tremolo it should chop the sound up in and makes it grainy. Feeding this CV input an audiorate signal creates bell like tones (similar to a ring modulator) or bitcrushing sounds depending on the division setting and the modulating waveform. This is made possible by using a lighting fast transistor based optocoupler rather than the much more sluggish, standard LDR/LED or vactrol configuration. The “Output” is the end station of the module, when nothing is plugged into “Static In” it contains the reverb and the static circuit in series, when the input to the static circuit is used it just contains the static out. Which means you can use either half of this module if you want, or both, or use the reverb to effect one sound and the static a different sound in patch.The input attenuator, the acoustic knob, feedback, modulation and static CV amount are all meant to play around with, there are usually several sweet spots here, but remember it is also affected by your incoming signal. Try different incoming signals, and see what you like (VCA’s and filters are usually a good idea too to alter the signal before it hits the bunker). It is also possible and encouraged to use this module without any incoming signal, just turn the modulation switch and introduce noise/drones to the static circuit. Use acoustics and feedback to shape it. Use a 0-5v incoming CV signal to effect the LED/LDR and making different sounds and volume (usually a lower setting on the CV pot here causes bigger changes when using incoming CV). Plug in a steady, or polyrhythmic clock into the static CV in. What do you hear?DIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
Broken Tape-Machine SimulatorNødsignal is a true stereo broken tape-machine simulator in a 6HP Eurorack module. As such this module is capable of doing vibrato, chorus as well as ring mod(ish) sounds with the right modulation. Input on channel one (left) as well as CV for the same channel is normalled to channel two (to the right). This means you can get a stereo signal out from just a mono input if you prefer, and you can modulate both channels with just a single cv input. The invert switch inverts the incoming CV signal on channel one before it reaches channel two, creating the opposite of what is modulating channel 1, while the dry/wet switch removes the dry input when pushed down.Traditionally chorus is done with the dry signal present and with faster modulation, whereas vibrato is done without the dry input and with slower modulation. You can experiment with this, even doing fast cv on one channel and slow on the other. The Station switch presents two different kinds of tape saturation, most notable with the wet signal present. The second mode is an envelope follower of sorts which is shown by the white LEDs tracking the signal. The tune knob, with no CV present at the inputs acts as a tuner of sorts, skipping the tape around when turned. With a CV signal at the input it works as a attenuator for both CV inputs. At maximum setting (full CV) it also acts as a soft bypass for the wet signal.DIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.

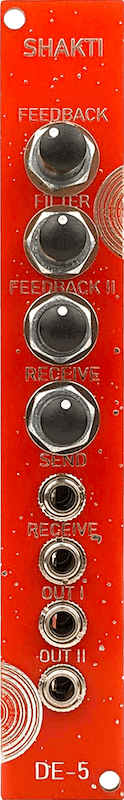

No Input Feedback MixerShakti contains no less than 3 different feedback loops in a very small 4HP package. There are 2 internal loops represented by the pots FEEDBACK and FEEDBACK II.Where FEEDBACK is a normal signal, FEEDBACK II is an inverted signal and RECEIVE is an external path (one that you send out from the module, through any other modules of your choice and then back again).When working with feedback all three of these will intermingle fast which means both FEEDBACK pots and RECEIVE knobs will affect each other. A filter is attached to the first feedback path but since all signals will intermingle in this circuit (it is a mixer after all) the filter will affect all three paths.Starting with the knob in the middle, it has a lowpass filter to the right and high pass to the left. OUTPUT I contains the inverted signal whereas OUTPUT II contains the normal signal. Shakti can be used as a stereo module since the 2 outputs can differ drastically at times.!! WARNING !! DEALING WITH FEEDBACK CAN BE HAZARDOUS TO YOUR EARS AND GEAR SUCH AS OTHER MODULES, SPEAKERS, DAWS, MIXERS ETC. TO BE SURE YOU HAVE HEALTHY LEVELS ALWAYS PLACE AN ATTENUATOR OR ATTENUATED MIXER OUTPUT BETWEEN YOUR MODULAR AND OTHER GEAR. WE TAKE NO RESPONSIBILITY IF GEAR WITHIN YOUR MODULAR OR OUTSIDE IS HARMED BECAUSE OF SHAKTI. YOU HAVE BEEN WARNED! PROCEED WITH CAUTION!DIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.

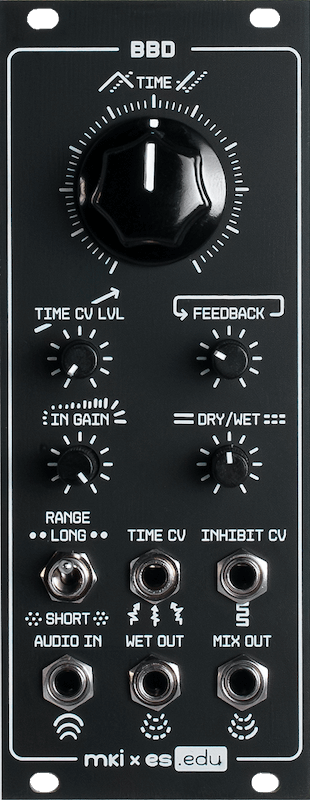

This module is based around a BBD integrated circuit and allows for classic delay-based effects, from slapback echoes to trailing reverberations, from flanger-like sounds to crusty down-sampled madness.The module is DIY, sold as a kit by Erica Synths and comes with a very thorough assembly manual that provides deep insight into the functioning of every part of the circuit you'll build.The module itself features all your classic delay-related controls, from delay time to feedback amount, a dry/wet mix control and even a switch to select between 2 different delay ranges.A nice, surprising addition is a patch point labeled "Inhibit CV" which, whenever it is presented with a gate signal, will disconnect the clock signal from the BBD chip, essentially stopping the effect in its tracks. The clock will resume as soon as the gate goes low at this patch point, and the BBD circuit will then return to normal operation. This feature lets the player add some rhythm to the effect or perform other interesting shenanigans.We - Erica Synths and Moritz Klein - have developed a series of educational DIY kits under the brand name mki x es.EDU with one specific goal in mind: to teach people with little-to-no prior experience how to design analog synthesizer circuits from scratch. What you’ll find in the box is not simply meant to be soldered together and then disappear in your rack. Instead, we want to take you through the circuit design process step by step, explaining every choice we’ve made and how it impacts the finished module.NB! All kits in these series are simple and come with extensive user manuals which can be downloaded separately, therefore we will not provide customer support in case your DIY build fails to function or similar.DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
Even though wavefolding is more of a west coast synthesis concept, it’s a great addition to the otherwise very east coast mki x es.edu DIY system. Why? Because it can provide a ton of unusual timbres for your patches: from a slight dash of brightness to harsh metallic drones. That’s why we came up with this super simple BJT-based double wavefolder.We – Erica Synths and Moritz Klein – have developed a series of educational DIY kits under the brand name mki x es.EDU with one specific goal in mind: to teach people with little-to-no prior experience how to design analog synthesizer circuits from scratch. What you’ll find in the box is not simply meant to be soldered together and then disappear in your rack. Instead, we want to take you through the circuit design process step by step, explaining every choice we’ve made and how it impacts the finished module.In total, we have developed 9 kits to build a fully-featured modular monosynth: a sequencer, a VCO, a wavefolder, a noise/S&H module, a mixer, a VCF, an Envelope generator, a dual VCA, and an output stereo mixer with a headphone amplifier. Additionally, an affordable eurorack case with a DIY PSU will also be available. While these kits are easy to build, we did not compromise on design and functionality. We will launch one kit every 4-6 weeks. For each kit, there is an extensive user manual (40+ pages; can be downloaded separately) that will dive deep into not only the electronics behind each circuit but also the fundamental principles of sound synthesis. We hope that the mki x es.EDU project will inspire future engineers and will contribute to the ever-growing diversity of electronic music technology.DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
4HP Compressor designed for continuous adjustment of gain, threshold and compression ratio with a single potentiometer. There is also a knob for input level and a knob for make-up gain. The module is based on high-performance THAT4305 Blackmer® VCA chip.Features:• 1 audio input (In)• 1 audio level pot (Input)• 2 control pots:Less/More = compression, Make-Up Gain• 1 output (Out)DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
As the name suggests this module can produce sub frequencies of -1 and -2 octaves relative to the square wave signal provided at the input jack.But this is not just a simple SUB generator. It also has a little mixer that will let you add different levels of -1 and -2 octave signals to the original square wave. You can select the -2 octave signal to be a square wave or a pulse wave.The module has individual outputs for the mixed signal, the -1 octave and the -2 octave.DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
€53.50*
