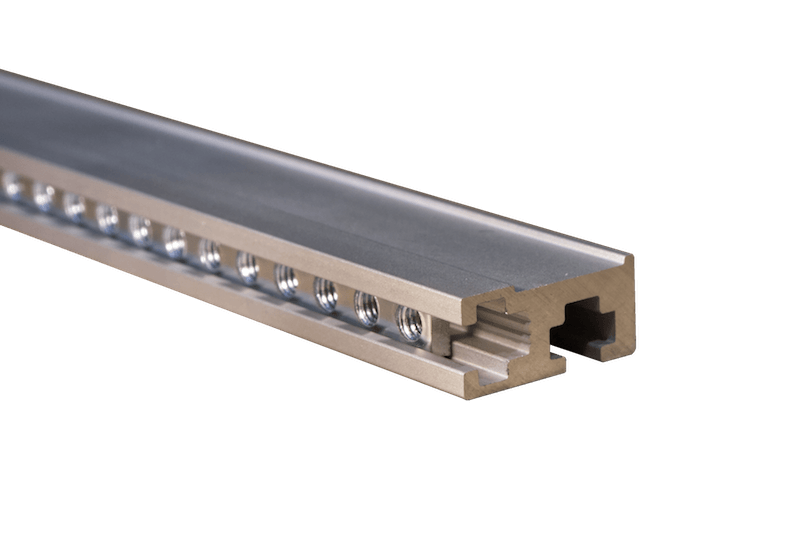

Eurorack Rails - Low Profile - Type B (silver) - 196 HP
Product number:
102007-196
Product information "Eurorack Rails - Low Profile - Type B (silver) - 196 HP"
These ones are smaller and lighter than the standard ones. The basis is the same as Type B standard but without the whole back.
Type B rails DO NOT feature a lid, they are thinner.
Rail (one piece, threaded strip not included) for building DIY Eurorack cases. 84 HP = 427mm, 104 HP = 529mm, 114 HP = 579mm, 126 HP = 640mm, 168 HP = 854mm, 196 HP = 996mm.
For building your case you also might need some additionals: threaded strips and M3 screws holding your modules and M5 screws for mounting the rails (we have various types of screws here). As an alternative to the M3 threaded strips you can also use M3 slide nuts.
The hole where the M5 screw sits later has no threading - an M5 screw will carve its way when you insert them. Alternatively you could use a tapping tool, but it's not really necessary.
Type B rails DO NOT feature a lid, they are thinner.
Rail (one piece, threaded strip not included) for building DIY Eurorack cases. 84 HP = 427mm, 104 HP = 529mm, 114 HP = 579mm, 126 HP = 640mm, 168 HP = 854mm, 196 HP = 996mm.
For building your case you also might need some additionals: threaded strips and M3 screws holding your modules and M5 screws for mounting the rails (we have various types of screws here). As an alternative to the M3 threaded strips you can also use M3 slide nuts.
The hole where the M5 screw sits later has no threading - an M5 screw will carve its way when you insert them. Alternatively you could use a tapping tool, but it's not really necessary.
| Color: | Silver |
|---|---|
| Length [HP]: | 196 |
| Profile: | Low-Profile |
| Type: | B |
