SOLDERING IRON

Why you need it

The soldering iron is the core tool in any electronics toolset. Without it, you can’t assemble synth DIY projects repair modules. For beginners, we recommend a simple hand soldering iron that plugs directly into 230 V mains. These models are affordable, compact, and reliable.

Fixed vs. temperature-controlled

Fixed-temperature irons are best for starting out: easy to handle, no risk of setting the wrong heat, and less chance of damaging your PCB or components.

Temperature-controlled irons are more versatile but also more complex — a good choice once you gain some experience and work on varied or sensitive projects.

Recommended beginner’s choice

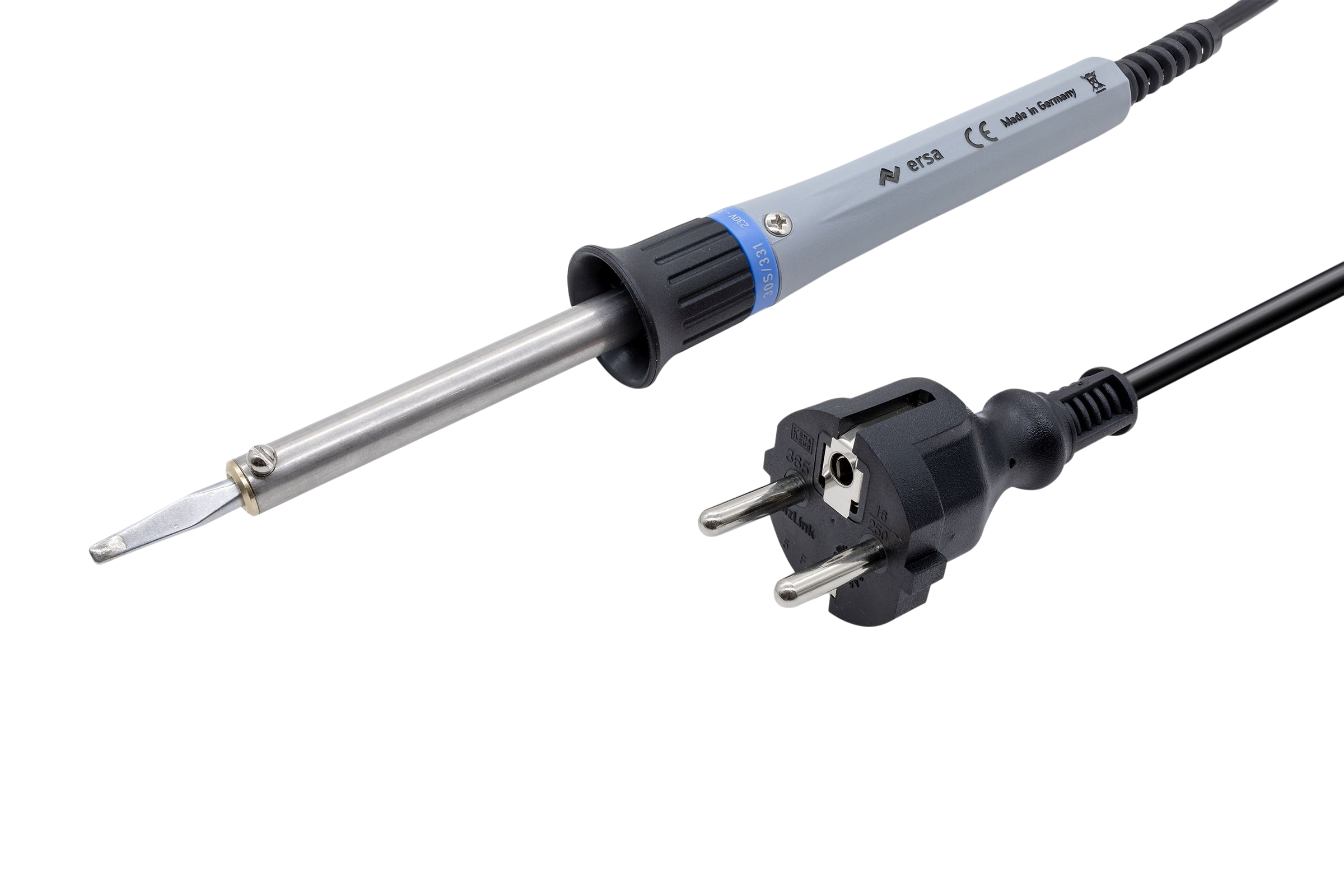

Ersa 30 S (30 Watt) – a proven, affordable iron that can handle most DIY synth builds.

Add an extra tip like the Ersa 032BD for precision work on compact PCBs.

More on this in the Soldering Tip section.

For advanced users

PTC-70 (75 Watt) – a temperature-controlled iron with more power and flexibility for broader applications.

Warning

Avoid cheap, no-name soldering irons!

Good solder joints are crucial for the performance of your module.

SOLDERING IRON

Why you need it

The soldering iron is the core tool in any electronics toolset. Without it, you can’t assemble synth DIY projects repair modules. For beginners, we recommend a simple hand soldering iron that plugs directly into 230 V mains. These models are affordable, compact, and reliable.

Fixed vs. temperature-controlled

Fixed-temperature irons are best for starting out: easy to handle, no risk of setting the wrong heat, and less chance of damaging your PCB or components.

Temperature-controlled irons are more versatile but also more complex — a good choice once you gain some experience and work on varied or sensitive projects.

Recommended beginner’s choice

Ersa 30 S (30 Watt) – a proven, affordable iron that can handle most DIY synth builds.

Add an extra tip like the Ersa 032BD for precision work on compact PCBs.

More on this in the Soldering Tip section.

For advanced users

PTC-70 (75 Watt) – a temperature-controlled iron with more power and flexibility for broader applications.

Warning

Avoid cheap, no-name soldering irons!

Good solder joints are crucial for the performance of your module.
