Alfa Rpar - AS13704D - Quad Operational Transconductance Amplifiers (OTA)
Product number:
103102SP24
Product information "Alfa Rpar - AS13704D - Quad Operational Transconductance Amplifiers (OTA)"

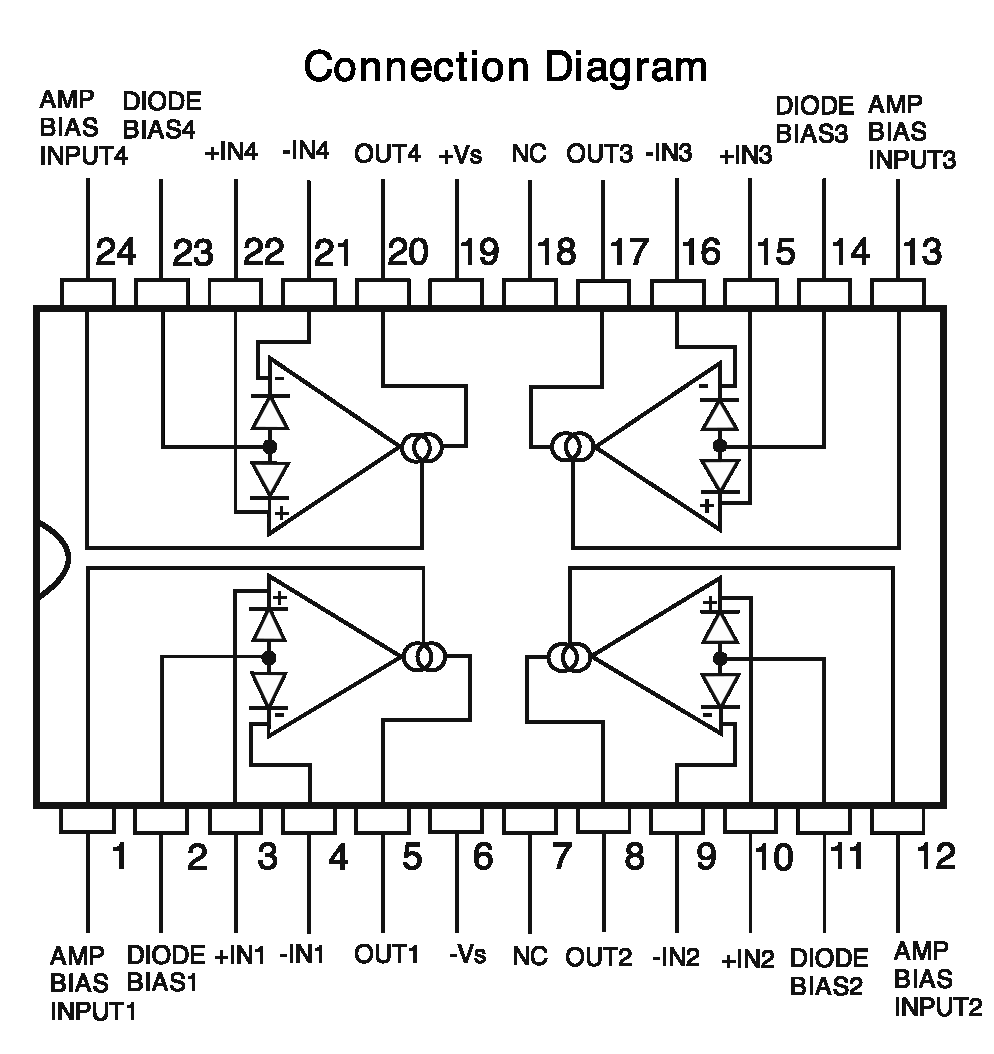

The AS13704D consists of four current-controlled transconductance amplifiers OTA, each with differential inputs and a push-pull output. All amplifiers share common supplies, but operate independently. Linearizing diodes are provided at the inputs to reduce distortion and allow higher input levels. The result is a 10-dB signal-to-noise improvement referenced to 0.5 percent THD.
Features:
• gm adjustable over 6 decades
• excellent gm linearity
• excellent matching between amplifiers
• linearizing diodes for reduced output distortion
• high output SNR
• LM13700 functional replacement (without output buffers)
Applications:
• current-controlled amplifiers
• stereo audio amplifiers
• current-controlled impedances
• current-controlled filters
• current-controlled oscillators
• multiplexers
• timers
• S&H circuits
Features:
• gm adjustable over 6 decades
• excellent gm linearity
• excellent matching between amplifiers
• linearizing diodes for reduced output distortion
• high output SNR
• LM13700 functional replacement (without output buffers)
Applications:
• current-controlled amplifiers
• stereo audio amplifiers
• current-controlled impedances
• current-controlled filters
• current-controlled oscillators
• multiplexers
• timers
• S&H circuits
| Basic Function: | OTA (4x) |
|---|---|
| IC Package: | SSOP-24 (SMT) |
| Pin Count: | 24 |
| Pin Pitch [mm]: | 0,635 |
| Technology: | SMT |
