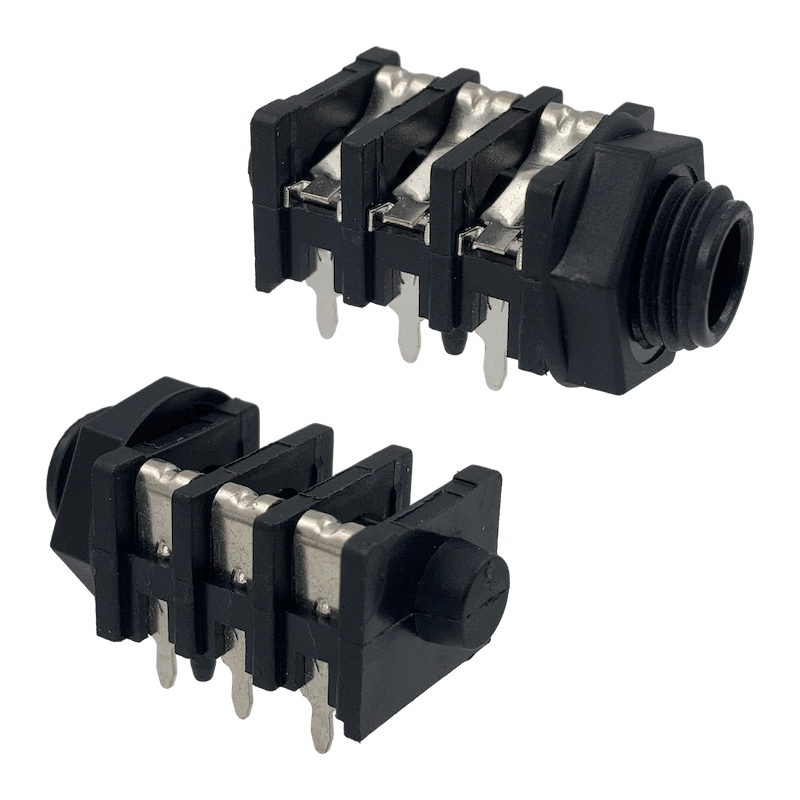

A very reliable 6,3 mm TRS (stereo) connector with switching function. Slimline version, very useful when space is limited, for example in DIY pedals or synths. Quite similar to the Neutrik slimline ones. PCB mount. Nuts are included.
Potentiometer, vertical PCB mount.Rotation angle approx. 300°. 6 mm D shaft shaft for push-on knobs or knobs with set screw, shaft length 15 mm including thread. 7 mm mounting hole required in the front panel.Nut and washer included.
Linear potentiometer, vertical PCB mount.Rotation angle approx. 300°. 6,35 mm round shaft for knobs with set screw, shaft length 15 mm including thread.Nut and washer included.
Potentiometer, vertical PCB mount.Rotation angle approx. 300°. 6 mm T18 shaft for push-on knobs or knobs with set screw, shaft length 15 mm including thread. 7 mm mounting hole required in the front panel.Nut and washer included.
Dual Potentiometer, vertical PCB mount.Rotation angle approx. 300°. 6 mm D shaft for knobs with set screw, shaft length 15 mm including thread. 7 mm mounting hole required in the front panel.Nut and washer included.
Dual Potentiometer, vertical PCB mount.Rotation angle approx. 300°. 6 mm T18 shaft for push-on knobs or knobs with set screw, shaft length 15 mm including thread. 7 mm mounting hole required in the front panel.Nut and washer included.

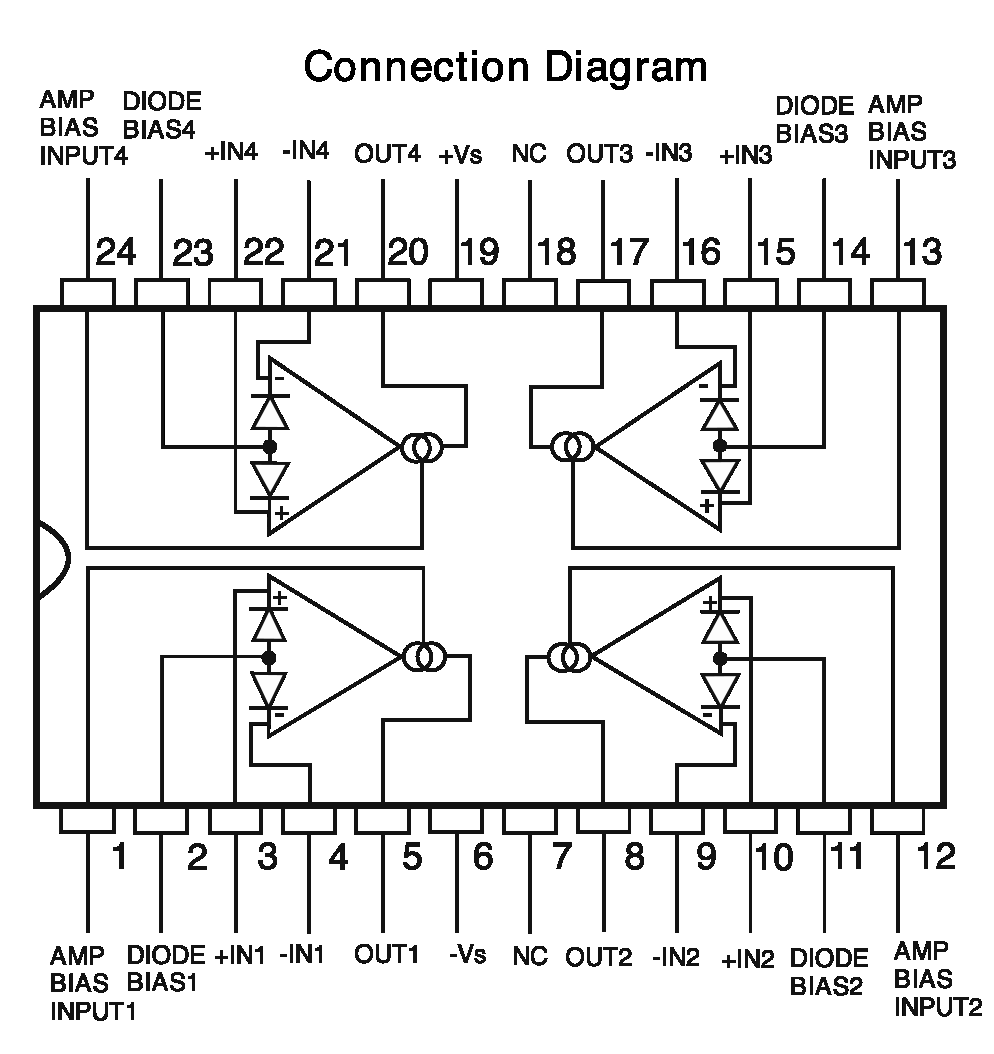

The AS13704D consists of four current-controlled transconductance amplifiers OTA, each with differential inputs and a push-pull output. All amplifiers share common supplies, but operate independently. Linearizing diodes are provided at the inputs to reduce distortion and allow higher input levels. The result is a 10-dB signal-to-noise improvement referenced to 0.5 percent THD.Features:• gm adjustable over 6 decades• excellent gm linearity• excellent matching between amplifiers• linearizing diodes for reduced output distortion• high output SNR• LM13700 functional replacement (without output buffers)Applications:• current-controlled amplifiers• stereo audio amplifiers• current-controlled impedances• current-controlled filters• current-controlled oscillators• multiplexers• timers• S&H circuits

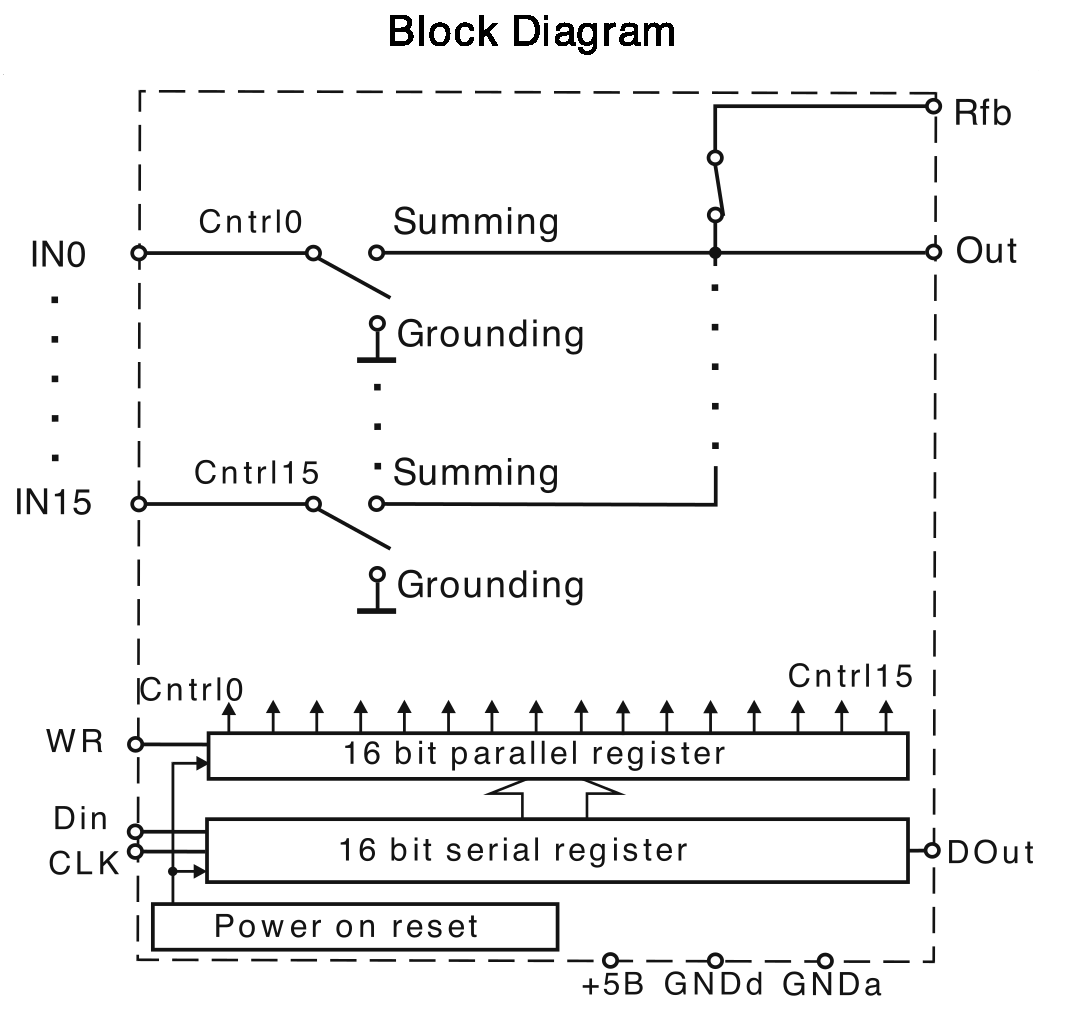

The AS16M1 analog switch with serial digital interface offers 16 individually controlled single-pole-change-over (SPCO) switches. All switches conduct equally in either direction and on-resistance (170 Ω) is constant over the analog signal range.These CMOS switches can operate continuously with power supply +5V and switch input currents in any combination to output node (summing) or ground them.Upon power-up, all summing switches are off, grounding switches are on and the internal serial and parallel shift registers are reset to zero.The AS16M1 is controlled by a serial interface. The interface is compatible with the SPI interface standard.Features:• 16 individually serial controlled SPCO switches• SPI-compatible serial interface• multiple devices can be daisy chained• compact 28-Pin package: QFN-28Applications:• Electronic music• Instrumentation• Signal Routing• Audio commutation• Data Acquisition and Process Control

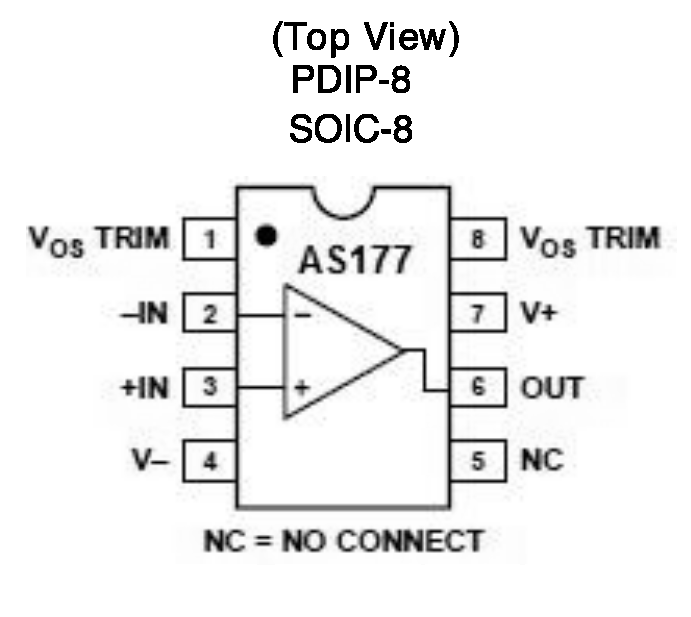

The AS177 op-amp has a very small offset voltage, which is achieved by trimming the microcircuit at the manufacturing stage and a wide range of supply voltages. The AS177 op-amp has low input currents and a high gain. Low offset voltage (UIO) and high gain (AU) make this op amp particularly attractive for use in instrumentation circuits.A wide input voltage range (UICMAX) in combination with a high common-mode input voltage attenuation coefficient (KCMR) and high impedance provides high accuracy for non-inverting switching circuits. In deep feedback circuits, high values of linearity and accuracy can be achieved. The op-amp has high and normalized stability of the offset voltage and the difference of the input currents (IIO) in time and from changes in ambient temperature.The accuracy and stability of the AS177, even at high gain, combined with the freedom from external nulling have made the AS177 an industry standard for instrumentation applications.Features:• Ultralow offset voltage TA = 25°C, 25 μV (typ)• Wide range of supply voltages from ±3V to ±16,5V• Outstanding offset voltage drift ± 0,1 μV/°С• High long-term stability offset voltage• Increased speed f1 – 0,9 MHz, SR-0,36 V/μS• Wide range of common mode input voltage ±13V• Small input current 2nA (max)• Excellent open-loop gain 10 V/μV typical• Common-Mode Rejection Ratio 120dB

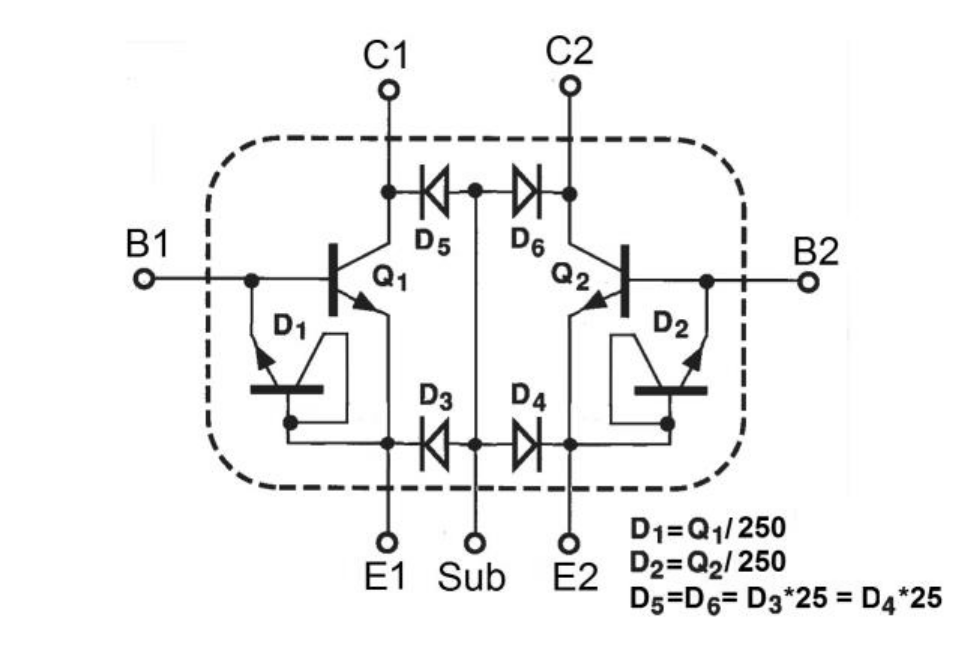

The AS194 and AS394 are junction isolated ultra well-matched monolithic NPN transistor pairs with an order of magnitude improvement in matching over conventional transistor pairs.Electrical characteristics of these devices such as drift versus initial offset voltage, noise, and the exponential relationship of base-emitter voltage to collector current closely approach those of a theoretical transistor. Extrinsic base and emitter resistances are very low, giving very low noise and operating over a wide current range.To guarantee long term stability of matching parameters, internal clamp diodes have been added across the emitter-base junction of each transistor. These prevent degradation due to reverse biased emitter current- the most common cause of field failures in matched devices. The parasitic isolation junction formed by the diodes also clamps the substrate region to the most negative emitter to ensure complete isolation between devices.The AS194H, AS394H, AS394CH are available in the 8-pin metal can TO5-8 package, the AS194DE and AS394DE in the 8-lead plastic SOIC-8 (150mil) EPAD package.Features:• "Ideal" and identical transistors• Common-mode rejection ratio > 120dB• Emitter-base offset voltage < 100v• Emitter-base offset voltage temperature drift 0.1µV/°C• Current gain (hFE) matched <2%• Parameters are guaranteed in the range of collector current of 10µA - 1mA• Noise Voltage Density of 1.8nV/srt(Hz)• Ideal logarithmic properties

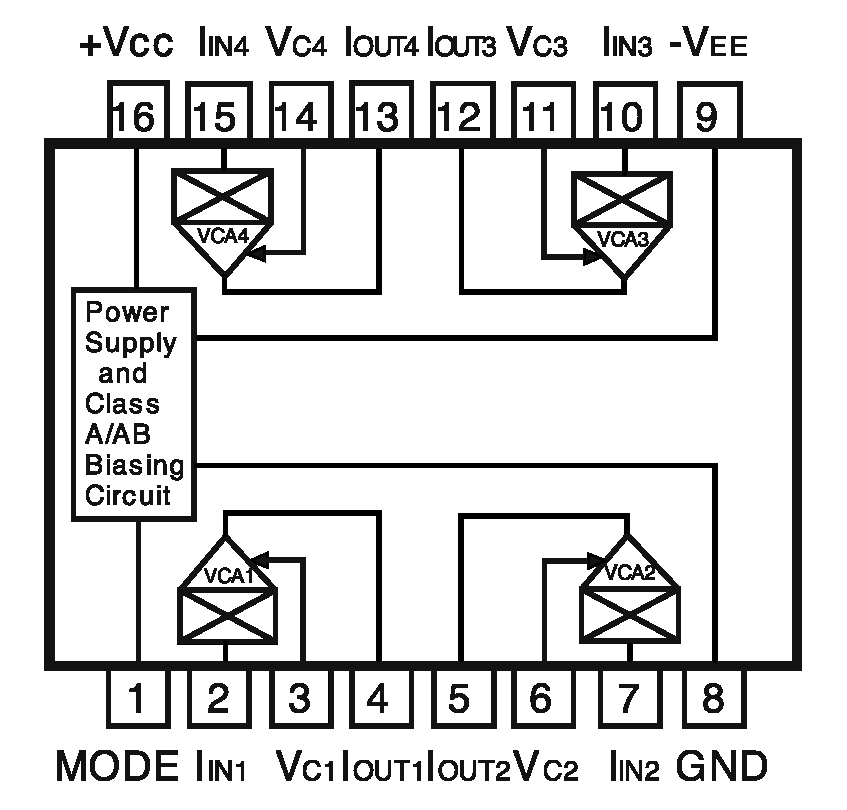

AS2164 contains four independent voltage controlled amplifiers (VCAs) in a single package. High performance (dynamic range 100 dB) provides excellent use of VCA's in gain control applications. Each VCA offers current inputs and outputs for maximum design flexibility, as well as a –33 mV/ dB ground control port. All channels are closely matched to within 0.07 dB at unity gain, and 0.24 dB at 40 dB of attenuation. A 120 dB gain range is possible.A single resistor tailors operation between full Class A and AB modes.AS2164 is internally protected in situations where negative supply is turned OFF.The AS2164 will operate over a wide supply voltage range of ±4 V to ±18 V.Features:• protection from negaive supply turned OFF• four high performance VCAs in a single package• no external trimming• 120 dB gain range• 0.07 dB gain matching (unity gain)• class A or AB operationApplications:• Remote, Automatic, or Computer Volume Controls• Automotive Volume/Balance/Faders• Compressor/Limiters/Compandors• Noise Reduction Systems• Automatic Gain Controls• Voltage Controlled Filters• Special Sound Processors

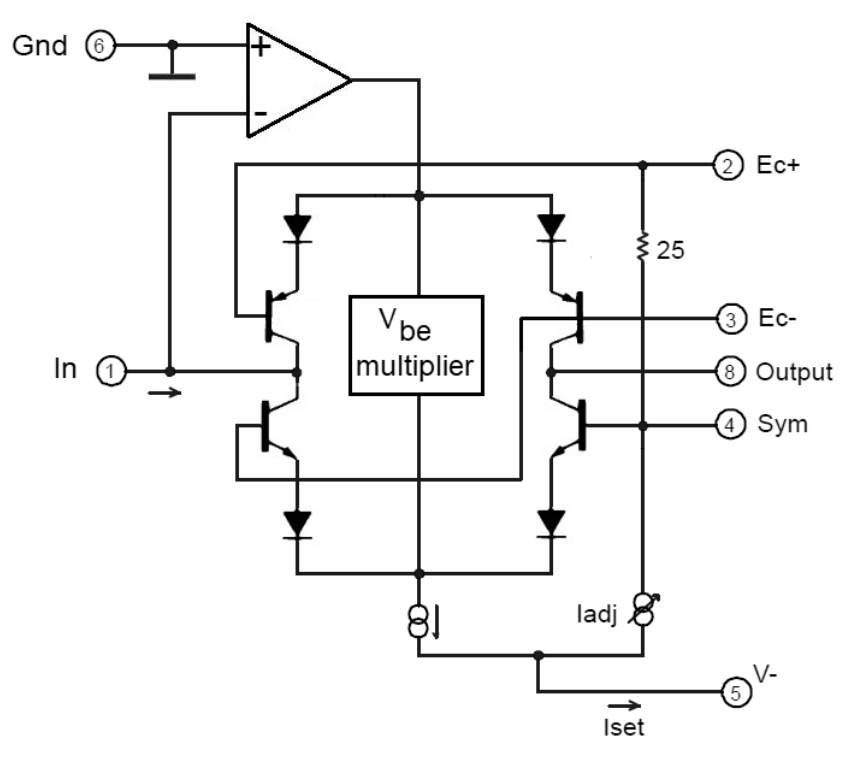

AS2180 voltage controlled amplifier (VCA) is a high performance current-in/current-out device with two opposing-polarity, voltage-sensitive control ports which offer wide-range exponential control of gain and attenuation with low signal distortion. AS2180 is trimmed at wafer stage for low THD and control-voltage feedthrough without further adjustment. Exposed pad has slight internal electrical contact with V- (pin 5).Features:• wide dynamic range > 120 dB• wide exponential gain range > 130 dB• low distortion < 0.01 %Applications:• Industrial control• Music devices• Filters, etc.

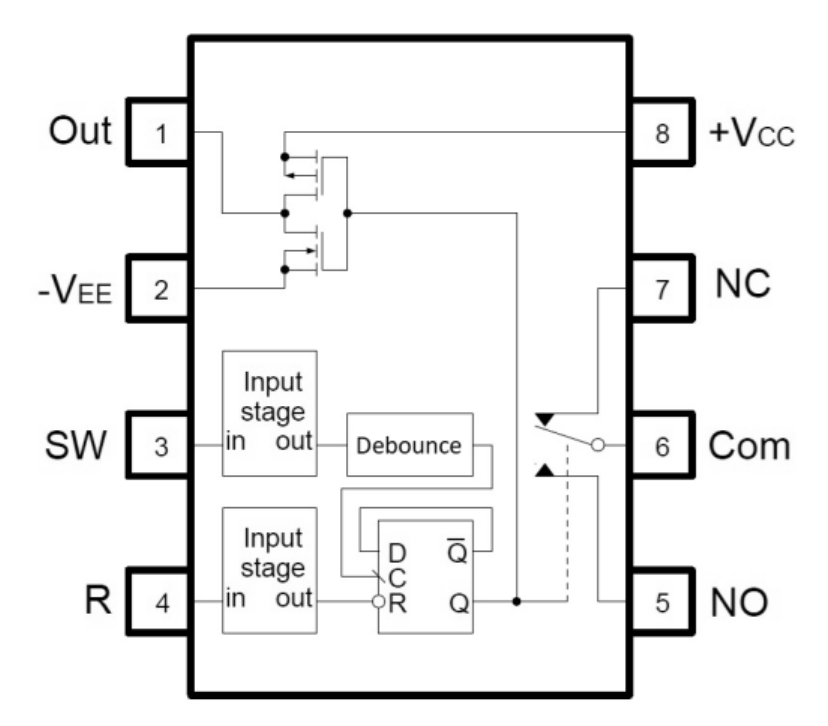

The AS2M1 is a tact switch controller with anti-bounce block, which “converts” tact switch into toggle switch and controls SPDT analog switch with (LED) indication on digital output status of toggle switch.During Power-On NС input is connected to COM and OUT is switched to +Vсс. If “high-current”-signal is applied to SW, after anti-bounce delay (approximately 80 ms) , internal trigger change it’s status and switching SPDT switch and Out.Inputs SW and R are current inputs. If current flowing out from SW or R is less than 100 uA, then input level is high. If external circuit sources from those inputs more than 100 uA, then input level is low.Transition from high level to low level leads to change of status of internal trigger (after anti-bounce delay).Low level on Reset input resets internal trigger to initial state. During low level on Reset input controller don’t response on SW input.Features:• Anti-bounce > 80 ms (typ)• Flexible control• High-voltage +/-12V• Analog switchApplications:• Industrial control• Music devices• HMI

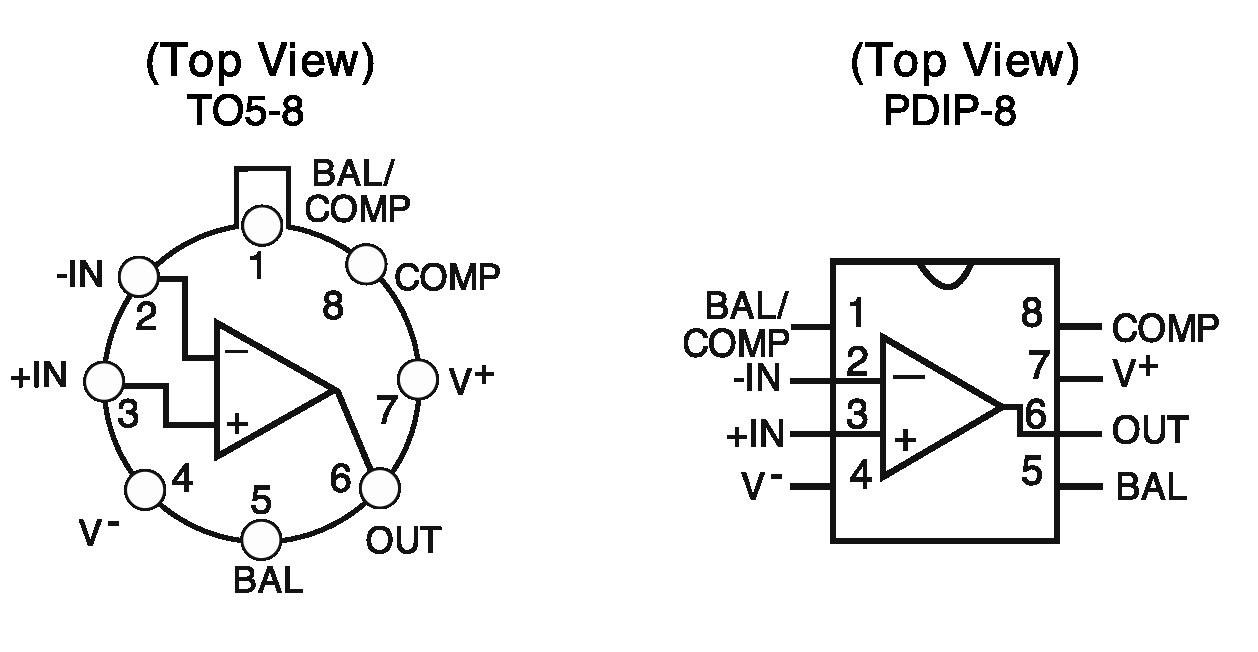

The AS301A is a general purpose operational amplifier. This amplifier offers many features which make its application nearly foolproof: overload protection on the input and output, no latch-up when the common mode range is exceeded, and freedom from oscillations and compensation with a single 30 pF capacitor. It has advantages over internally compensated amplifiers in that the frequency compensation can be tailored to the particular application.For example, in low frequency circuits it can be overcompensated for increased stability margin. Or the compensation can be optimized to give more than a factor of ten improvements in high frequency performance for most applications.In addition, the device provides better accuracy and lower noise in high impedance circuitry. The low input currents also make it particularly well suited for long interval integrators or timers, sample and hold circuits and low frequency waveform generators. Further, replacing circuits where matched transistor pairs buffer the inputs of conventional IC op amps, it can give lower offset voltage and a drift.The AS301A is guaranteed over a temperature range of 0 °C to +70 °C and maintains performance at -45 °CAnd +85 °C.

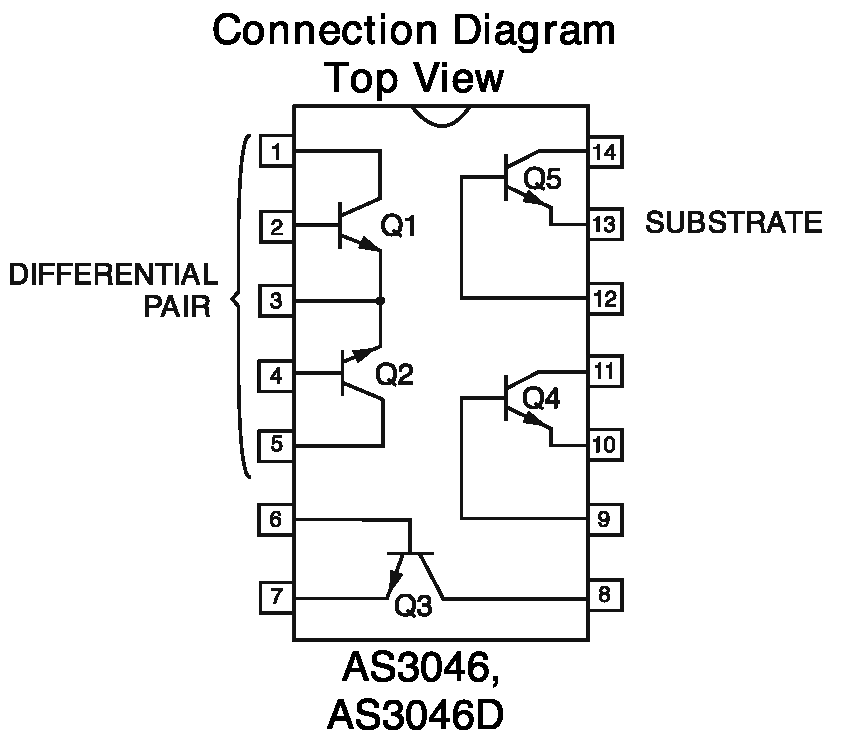

The AS3046 consists of five general purpose silicon NPN transistors on a common monolithic substrate. Two of the transistors are internally connected to form a differentially-connected pair. The transistors are well suited to a wide variety of applications in low power system. They may be used as discrete transistors in conventional circuits however, in addition, they provide the very significant inherent integrated circuit advantages of close electrical and thermal matching.Features:• matched pair of npn transistors• VBE matched less than ±1 mV• 5 general purpose monolithic transistors• wide operating current rangeApplications:• filters• custom designed differential amplifiers• temperature compensated amplifiers

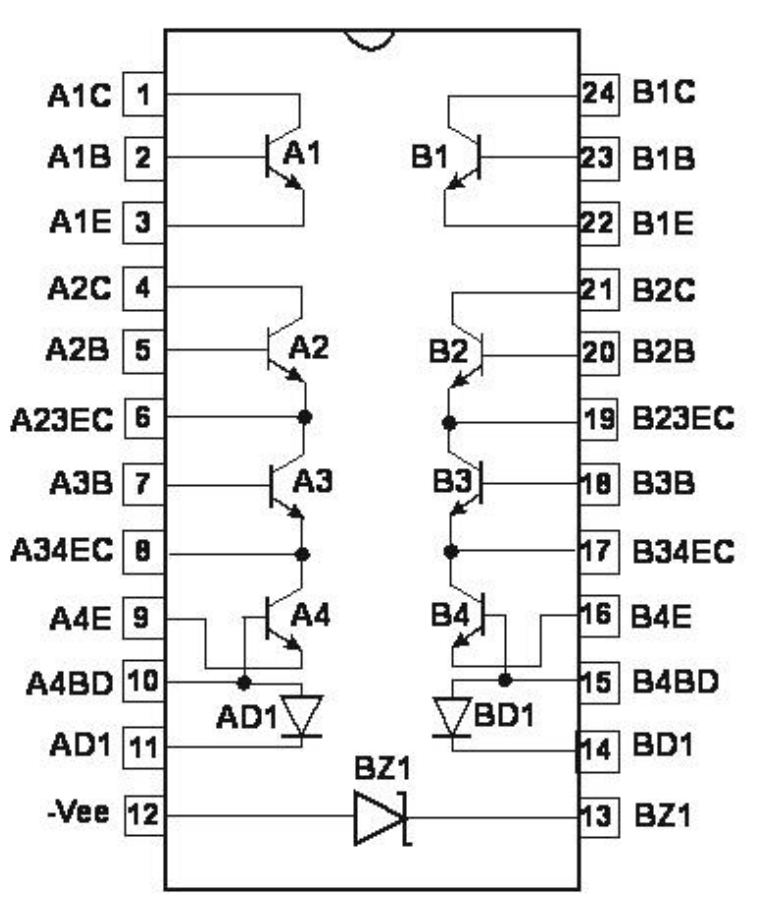

The AS3052 consists of 8 NPN transistors, 2 diodes and 1 buried zener on a common monolithic substrate. Transistor array allows variety of connections - differential pairs, different type of current sources, and different kind of multipliers/dividers. They may be used as discrete transistors in conventional circuits, however in addition, they provide the very significant inherent integrated circuit advantages of close electrical and thermal matching.Features:• 8 matched npn transistors, 2 diodes, 1 burried zener diode• VBE matched less than ±1 mV• wide operating current rangeApplications:• filters (Moog type)• multipliers (like MC1496)• dividers• Gilbert cells• custom designed differential amplifiers• temperature compensated amplifiers

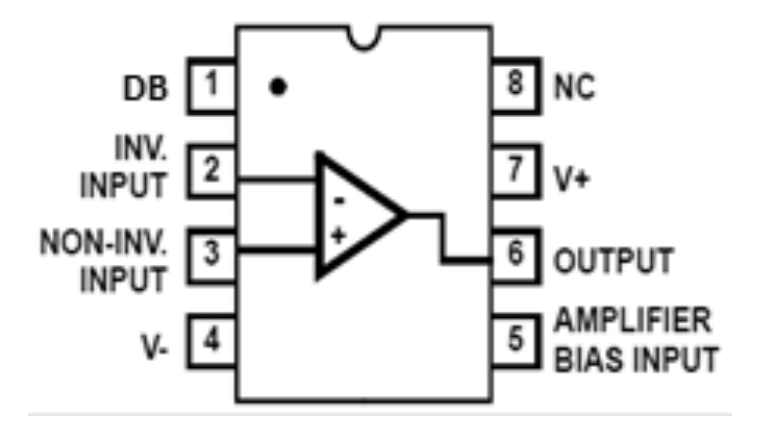

The AS3080E is a gain block which is the operational-transconductance-amplifier (OTA).The AS3080E have differential input and a single-ended, push-pull, class A output. Amplifier bias input may be used either for gating or for linear gain control. High output impedance and transconductance (g_M) is directly proportional to the amplifier bias current (I_ABC). Linearizing diodes are provided at the inputs to reduce distortion and allow higher input levels. The result is a 10-dB signal-to-noise improvement referenced to 0,5 percent THD.The AS3080E is notable for it’s high slew rate (50V/μs), which makes it especially useful for multiplexer and fast unity-gain voltage followers. It is especially applicable for multiplexer applications because power is consumed only when the devices are in the “ON” channel state.Features:• maximum offset < 800 μV• slew rate (unity gain, compensated) 50V/μs• adjustable power consumption 10μW to 30μW• flexible supply voltage range ±2V to ±15V• fully adjustable gain 0 to g_M R_L Limit• tight g_M spread 1,6:1• extended g_M linearity 4 Decades• linearizing diodesApplications:• Sample and Hold• Multiplexer• Voltage Follower• Multiplier• Comparator

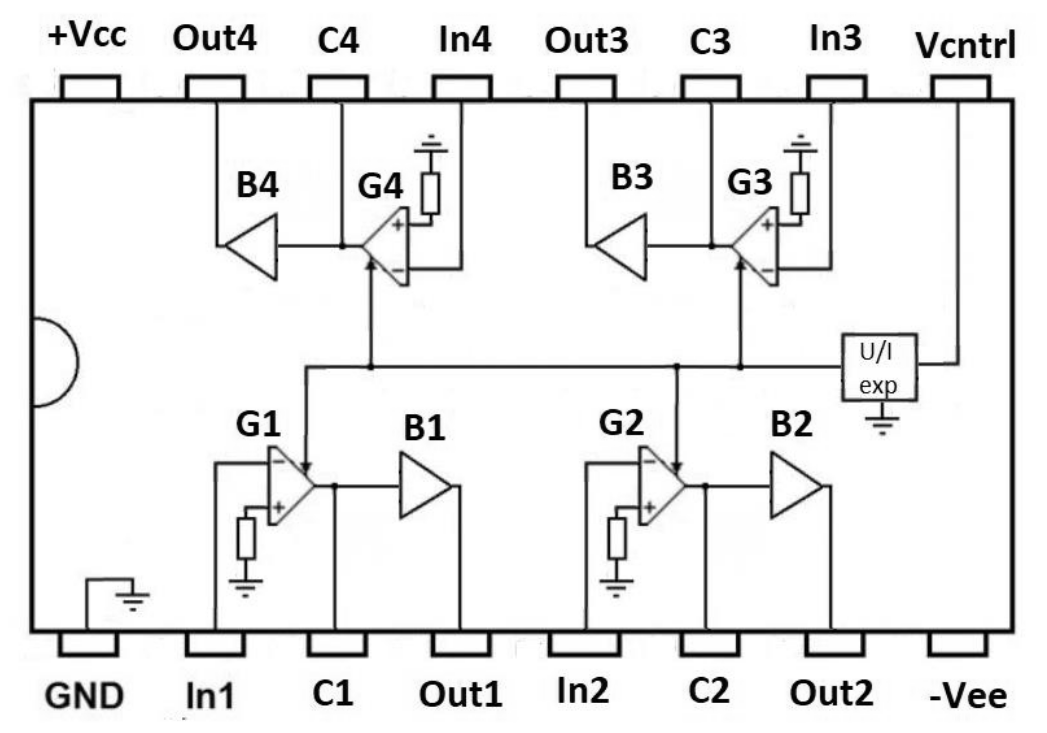

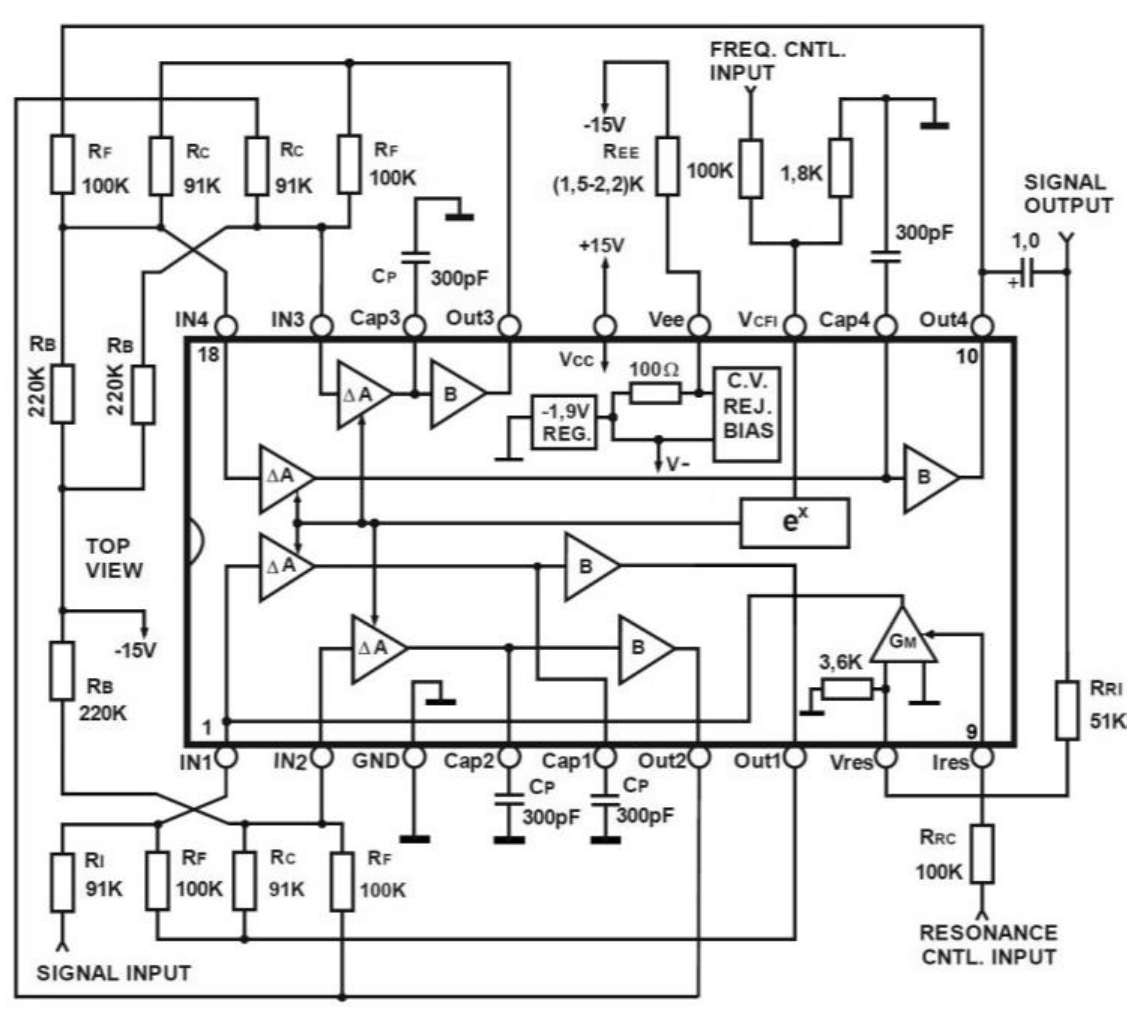

AS3109 is a high performance voltage controlled four-pole filter. The four independent sections may be interconnected to provide a wide variety of filter responses, such as low pass, high pass, band pass and all pass. A single input exponentially controls the frequency over greater than a 15 octave range with little control voltage feedthrough. AS3109 benefits from high input impedance buffers.Features:• voltage controllable range – till 15 octave• accurate exponential frequency scale• high input impedance buffers• wide transconductance range• low input offset voltage• low control voltage feedthrough - 45 dB typicalApplications:• for electronic music

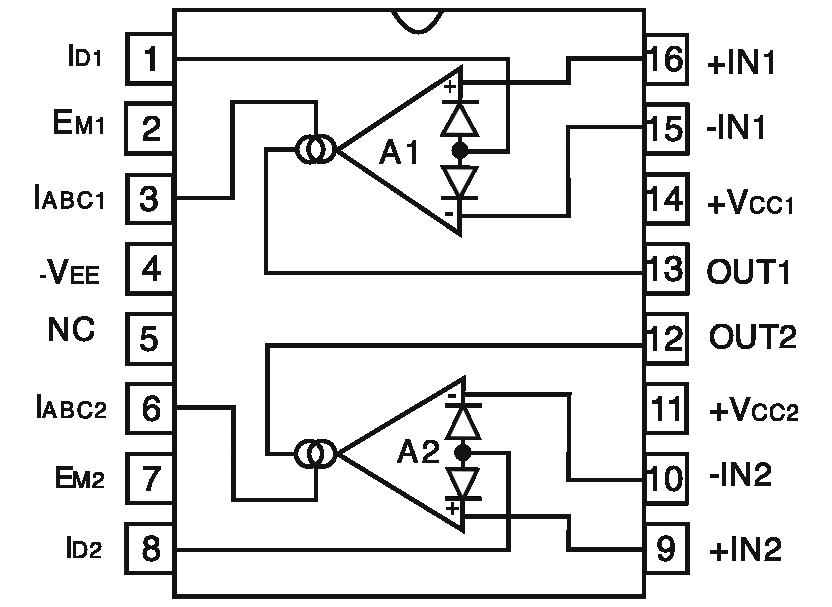

The AS3280 and AS3280A types consist of two variable operational amplifiers that are designed to substantially reduce the initial input offset voltage and the offset voltage variation with respect to changes in programming current. This design results in reduced "AGC thump," an objectionable characteristic of many AGC systems. Careful design of critical places of the circuit reduces the amplifier dependence upon thermal and processing variables.The AS3280 has all the generic characteristics of an operational voltage amplifier except that the forward transfer characteristics is best described by transconductance rather than voltage gain, and the output is current, not voltage. The magnitude of the output current is equal to the product of transconductance and the input voltage. This type of operational transconductance amplifier has since gained wide acceptance as a gateable, gain controlled building block for instrumentation and audio applications, such as linearization of transducer outputs, standardization of widely changing signals for data processing, multiplexing, instrumentation amplifiers operating from the nanopower range to high current and high speed comparators.Features:• Low Initial Input Offset Voltage: 500 μV (Max) (AS3280A)• Low Offset Voltage Change vs I_ABC: <500 μV (Typ)• Low Offset Voltage Drift: 5μV/°C (Max) (AS3280A)• Excellent Matching of the Two Amplifiers for All Characteristics• Internal Current-Driven Linearizing Diodes Reduce the External Input Current to an Offset Component• Flexible Supply Voltage Range ±2V to ±15VApplications:• Voltage Controlled Amplifiers Oscillators• Multipliers• Demodulators• Sample and Hold• Instrumentation Amplifiers• Function Generators• Triangle Wave-to-Sine Wave Converters• Comparators• Audio Preamplifier
The AS3280 and AS3280A types consist of two variable operational amplifiers that are designed to substantially reduce the initial input offset voltage and the offset voltage variation with respect to changes in programming current. This design results in reduced "AGC thump," an objectionable characteristic of many AGC systems. Careful design of critical places of the circuit reduces the amplifier dependence upon thermal and processing variables.The AS3280 has all the generic characteristics of an operational voltage amplifier except that the forward transfer characteristics is best described by transconductance rather than voltage gain, and the output is current, not voltage. The magnitude of the output current is equal to the product of transconductance and the input voltage. This type of operational transconductance amplifier has since gained wide acceptance as a gateable, gain controlled building block for instrumentation and audio applications, such as linearization of transducer outputs, standardization of widely changing signals for data processing, multiplexing, instrumentation amplifiers operating from the nanopower range to high current and high speed comparators.Features:• Low Initial Input Offset Voltage: 500 μV (Max) (AS3280A)• Low Offset Voltage Change vs I_ABC: <500 μV (Typ)• Low Offset Voltage Drift: 5μV/°C (Max) (AS3280A)• Excellent Matching of the Two Amplifiers for All Characteristics• Internal Current-Driven Linearizing Diodes Reduce the External Input Current to an Offset Component• Flexible Supply Voltage Range ±2V to ±15VApplications:• Voltage Controlled Amplifiers Oscillators• Multipliers• Demodulators• Sample and Hold• Instrumentation Amplifiers• Function Generators• Triangle Wave-to-Sine Wave Converters• Comparators• Audio Preamplifier
