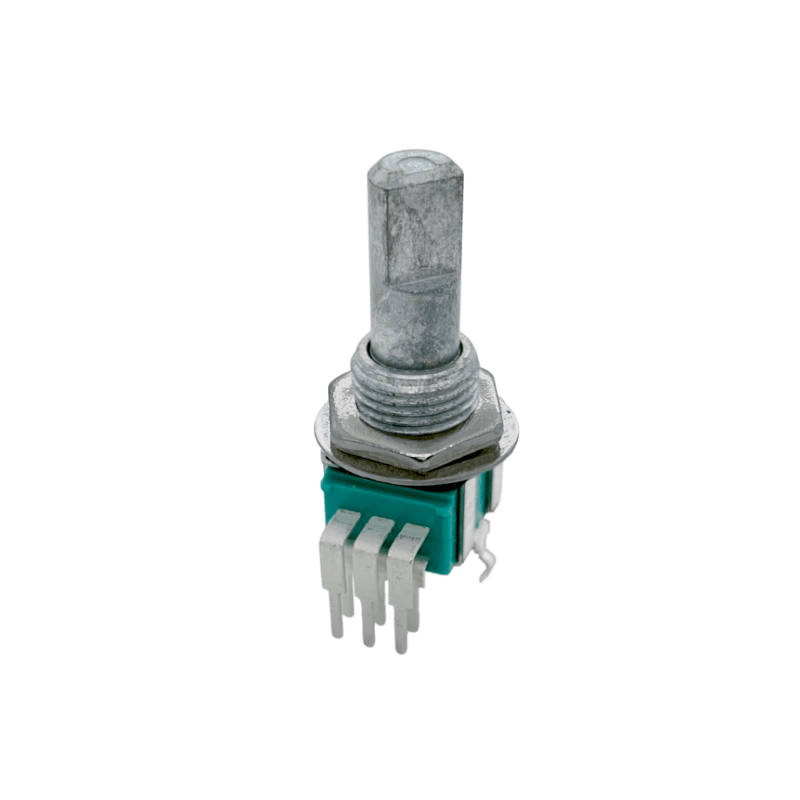

Alps - RK09 Dual (vertical)
Product number:
100894-B10K
Product information "Alps - RK09 Dual (vertical)"
Alps RK09 dual (stereo) vertical potentiometer with various resistances and tapers. Body height = 10 mm. 5 mm threading plus 12 mm shaft = 17 mm from the body in total. The shaft starts with a 5 mm long round shaft and then changes into a 7mm long D-shaft (usual 6 mm diameter), means it’s kind of stepped. M9x0,75 threading, needs a 9 mm hole. Rotation angle 300°.
| Mounting / Direction: | PCB, Vertical |
|---|---|
| Number of Tapers: | 2 |
| Rotation Angle [Deg]: | 300 |
| Shaft Length [mm]: | 12,5 |
| Shaft Type: | 6mm D shaft |
| Threading Length [mm]: | 5 |
| Threading [Type/mm]: | M9 x 0,75 |
