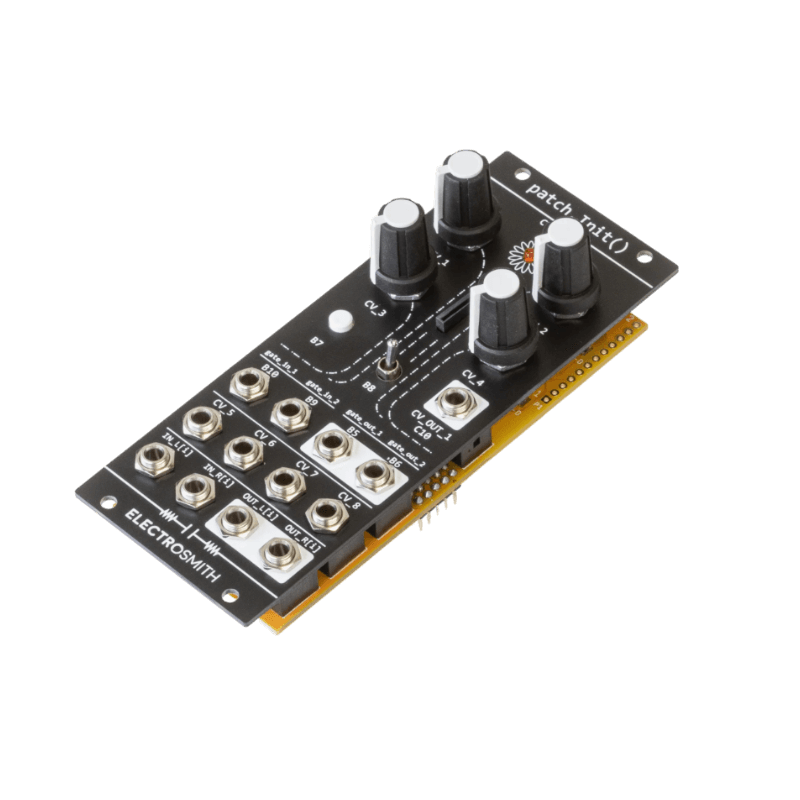

Electrosmith - Patch.Init()
Product information "Electrosmith - Patch.Init()"
Supplied with a Daisy Patch Submodule, the platform pairs a utilitarian front panel (open-source under MIT) whose parameter names match the code with high-fidelity audio performance: 24-bit, 96 kHz sample rate, an STM32 H7 processor and 64 MB of SDRAM. Stereo I/O and the Patch Submodule’s I/O options enable everything from samplers and granular processors to reverbs, glitchy effects and complex oscillators, while the freely available front-panel files let designers adapt the hardware for bespoke or commercial modules without licensing friction.
Features:
• Eurorack development platform for the Daisy Patch Submodule
• High Fidelity Daisy architecture: 24-bit, 96kHz sample-rate, 64MB SDRAM, STM32 H7 processor
• Stereo I/O
• Utilitarian design, with code-matching front panel parameter names
| Current draw +12 V [mA]: | 95 |
|---|---|
| Current draw -12 V [mA]: | 95 |
| DIY Level: | NOT DIY |
| Depth [mm]: | 28 |
| Width [HP]: | 10 |
| Format: | 3U |
| Panel / Color: | Black / Alu |
Electrosmith believes that designing audio devices is an art form, not just a science.
That belief drives the creation of a seamless hardware and software platform that lets audio designers, musicians, and developers focus on making the world sound better – instead of reinventing the wheel.
Since its launch in 2019, the Electrosmith Daisy platform has powered million-dollar Kickstarter audio products, been taught in Ivy League university courses and brought cutting-edge sound to interactive art installations around the world.
