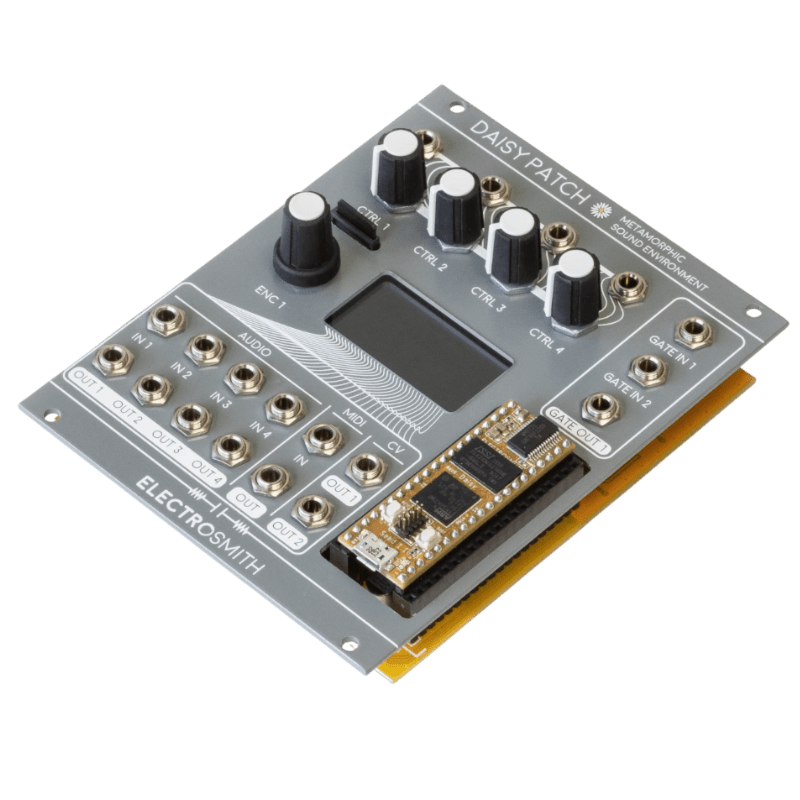

Electrosmith - Patch
Product information "Electrosmith - Patch"
The unit provides quad 24-bit audio I/O (up to 192 kHz) and a browser-based programmer for uploading a growing library of ready-to-run firmware – samplers, granular engines, physical-model voices and more – without the need for special upload tools.
Custom firmware is authored with Pure Data, Arduino, Max/MSP Gen~, or C++, and starter templates accelerate development. Onboard USB connectivity and a high-resolution OLED simplify debugging and real-time interaction, making the Patch both a performance device and a development platform.
The package includes one Daisy Seed (65 MB) and ships as an open-source DSP platform ready for experimentation, prototyping, and deployment as a compact standalone instrument
Features:
• Open source DSP platform
• Vast library of ready to go firmware files
• Quad 24-bit audio IO, up to 192kHz
• MIDI IO (TRS+USB)
• High res OLED display
| Current draw +12 V [mA]: | 95 |
|---|---|
| Current draw -12 V [mA]: | 95 |
| DIY Level: | NOT DIY |
| Depth [mm]: | 28 |
| Width [HP]: | 20 |
| Format: | 3U |
| Panel / Color: | Black / Alu |
Electrosmith believes that designing audio devices is an art form, not just a science.
That belief drives the creation of a seamless hardware and software platform that lets audio designers, musicians, and developers focus on making the world sound better – instead of reinventing the wheel.
Since its launch in 2019, the Electrosmith Daisy platform has powered million-dollar Kickstarter audio products, been taught in Ivy League university courses and brought cutting-edge sound to interactive art installations around the world.
Login
Manufacturer / Hersteller:
Electro-Distro
1100 Calle Cordillera
San Clemente, CA 92673-6238 United States
orders@electro-distro.com
EU responsible:
Tech Creation Lab Leipzig UG (haftungsbeschränkt)
Nonnenstrasse 19
04229 Leipzig, Germany
support@exploding-shed.com
WEEE-Nr.: DE94097895
Product Safety Information
Please read this safety guide before installation or use.
Important Notice & Intended Use
• This module is intended for adult users experienced in electronics and modular synthesis.
• The module is intended for installation in a Eurorack-compatible synthesizer system powered by ±12V and +5V.
• Use outside this scope may result in malfunction, damage, or safety risks.
General Warnings
Electrical Hazards:
• Ensure the power supply matches the module’s specified voltage and current ratings (refer to the product manual). Incorrect voltage can damage the module and pose a safety risk.
• Never connect or disconnect the module while the Eurorack system is powered on.
• Wrong polarity can damage your module or system. Make sure the module is connected with correct polarity.
Heat Generation:
• The module may generate heat during operation. Ensure proper ventilation within your Eurorack case to prevent overheating.
Sharp Edges:
• The module’s faceplate and components may have sharp edges. Handle with care to avoid cuts or scratches.
Small Parts:
• Contains small parts that could cause a choking hazard. Keep away from children and pets.
Compatibility:
• This module is designed specifically for Eurorack-compatible systems. Connecting it to non-compatible systems may result in damage or malfunction.
Installation and Use
• Mount securely in a Eurorack case using the provided screws.
• Use only the included or manufacturer-recommended power cable.
• Connect only when the power is off.
• Follow the module's user guide for instructions on operation. Do not exceed the input/output limits specified.
Environmental Safety
• Dispose of the module, its components, and packaging in accordance with local electronic waste regulations.
Liability Disclaimer
• The manufacturer or distributor is not responsible for any injury, damage, or malfunction resulting from improper installation, use, or modification of this product.
