Frequency Central - XVCO TWO

Product information "Frequency Central - XVCO TWO"

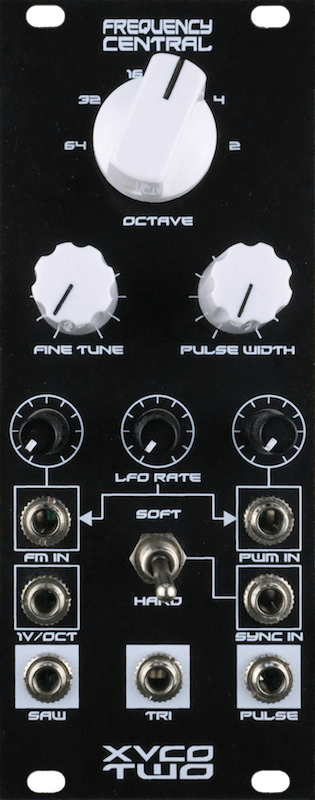

XVCO TWO is essentially the Roland 100M VCO adapted to Euro. There are individual outputs for ramp, square and triangle - an improvement on the original. The six position rotary switch for octaves gives the oscillator plenty of range, with a pitch control to fine tune. An internal LFO (thanks MC202) can be used to introduce FM and/or PWM. Super!

We’ve spent a lot of time tweaking the levels of the waveforms relative to 0V to take into account Euro’s +/-12V supply (instead of the 100M’s +/-15V supply). Care has been taken to set XVCO TWO so that it needs only minimal tweaking of the trimmers for scaling. It’s easy to set up without recourse to ‘scopes, frequency counters, and precision reference oscillators! Accurate up to 7 octave too!

THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
Current draw +12 V [mA]: 29
Current draw -12 V [mA]: 60
DIY Level: Easy/Medium
Depth [mm]: 35
Width [HP]: 10
Format: 3U
Panel / Color: Black Alu
Manufacturer "Frequency Central"

Hey there synth friends! It’s me, Rick of Frequency Central I founded Frequency Central in 2009, mostly as an excuse to my wife to spend more time messing around with synthesisers. Since that time, I and my small but trusty team of collaborators have endeavoured to crank out a range of fun and exciting Eurorack modules and accessories. By 2015 we’d dipped our toes into MU modular, we are now expanding further into that format. And now in 2024 we're just about to embark on a new adventure - fully standalone synthesisers. But... none of this would be possible without you! We value you deeply in a fraternal way, and we think you are rather special too. It is our honour and duty to design pointless yet fascinating audio tools to exhilarate your senses. Thank you so much for coming here, let’s hang out, turn the volume up to 1.61803399 and make ourselves unpopular with the local cats and dogs...
