SetonixSynth - Voltage Indicating Multiple

Product information "SetonixSynth - Voltage Indicating Multiple"

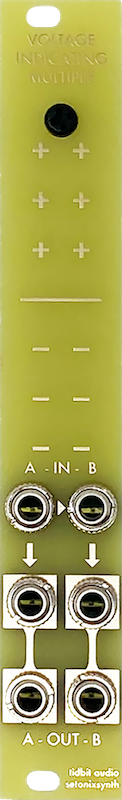

The Voltage Indicating Multiple is a high performance 2-channel buffered multiple with a 12-segment LED indicator for each channel that attractively shows the approximate voltage at the input and output of each channel. This custom designed, low current draw LED indicator is entirely discrete! The range is adjustable via the two rear trimmers to show a wide range of signals. Common ranges include +/-5V, +/-8V (default “factory” setting) and +/-10V. The Multiple section offers rail-to-rail performance with a <1mV offset between the input and output. These are two simple dual op-amp buffers, with each input transmitting signal to the two outputs below it. With nothing patched to the second input, the signal from the first input is normalized and its two outputs will also output the voltage present at the first Input jack. Features: • Two channel 1:2 precision buffered multiple • Can be used as 1:4 buffered multiple via normalization • 12-segment bi-polar LED bar indicators for each channel DIY-Kit-Type: SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
Current draw +12 V [mA]: 35
Current draw -12 V [mA]: 35
DIY Level: Easy
Depth [mm]: 30
Width [HP]: 4
Format: 3U
Panel / Color: Natural FR4
Manufacturer "SetonixSynth"
SetonixSynth is an independent music technology company specializing in the design and production of Eurorack modular synthesizers. This company is a project by audio engineer and musician Jack Schoonover. Our modules are designed and manufactured in Westport, NY, USA. Here's their website.
