84 HP 19″ Rackmount Kit
available
With this DIY kit you can easily put your modular in a any standard 19" case. It offers 84 HP space four your modules. It is ready mounted and includes:2 x rails 86 HP Type-B black2 x rack ears black2 x 84 HP threaded strips M34 x M5x20 screwsOther than on the picture it features Type-B.
€59.50*
Eurorack Rails - Double Rail Low Profile - Type A (black)
available
This is our new double rail! If you build a case with two or more rows, you can place this one in the middle and save 1 rail. Instead of 4 rails you only need 3 for a two row system.We recommend to use them with our new side brackets 3U + 1U, which need 2 low profile rails and 1 double rail to create a resulting frame of 1x 3U + 1x 1U (Intellijel).84 HP = 427mm104 HP = 529mm114 HP = 579mm126 HP = 640mm168 HP = 854mm196 HP = 996mmRail (one piece, threaded strip not included) for building DIY Eurorack cases.Type A rails feature a lid, which holds your modules in place so they cannot move up and down.For building your case you also might need some additionals: threaded strips and M3 screws holding your modules and M5 screws for mounting the rails (we have various types of screws here). As an alternative to the M3 threaded strips you can also use M3 slide nuts.The hole where the M5 screw sits later has no threading - an M5 screw will carve its way when you insert them. Alternatively you could use a tapping tool, but it's not really necessary.
€20.00*
Eurorack Rails - Double Rail Low Profile - Type A (gold)
available
This is our new double rail! If you build a case with two or more rows, you can place this one in the middle and save 1 rail. Instead of 4 rails you only need 3 for a two row system.We recommend to use them with our new side brackets 3U + 1U, which need 2 low profile rails and 1 double rail to create a resulting frame of 1x 3U + 1x 1U (Intellijel).Rail (one piece, threaded strip not included) for building DIY Eurorack cases.84 HP = 427mm104 HP = 529mm114 HP = 579mm126 HP = 640mm168 HP = 854mm196 HP = 996mmType A rails feature a lid, which holds your modules in place so they cannot move up and down.For building your case you also might need some additionals: threaded strips and M3 screws holding your modules and M5 screws for mounting the rails (we have various types of screws here). As an alternative to the M3 threaded strips you can also use M3 slide nuts.The hole where the M5 screw sits later has no threading - an M5 screw will carve its way when you insert them. Alternatively you could use a tapping tool, but it's not really necessary.
€24.00*
Eurorack Rails - Double Rail Low Profile - Type A (red)
available
This is our new double rail! If you build a case with two or more rows, you can place this one in the middle and save 1 rail. Instead of 4 rails you only need 3 for a two row system.We recommend to use them with our new side brackets 3U + 1U, which need 2 low profile rails and 1 double rail to create a resulting frame of 1x 3U + 1x 1U (Intellijel).Rail (one piece, threaded strip not included) for building DIY Eurorack cases.84 HP = 427mm104 HP = 529mm114 HP = 579mm126 HP = 640mm168 HP = 854mm196 HP = 996mmType A rails feature a lid, which holds your modules in place so they cannot move up and down.For building your case you also might need some additionals: threaded strips and M3 screws holding your modules and M5 screws for mounting the rails (we have various types of screws here). As an alternative to the M3 threaded strips you can also use M3 slide nuts.The hole where the M5 screw sits later has no threading - an M5 screw will carve its way when you insert them. Alternatively you could use a tapping tool, but it's not really necessary.
€24.00*
Eurorack Rails - Double Rail Low Profile - Type A (silver)
available
This is our new double rail! If you build a case with two or more rows, you can place this one in the middle and save 1 rail. Instead of 4 rails you only need 3 for a two row system.We recommend to use them with our new side brackets 3U + 1U, which need 2 low profile rails and 1 double rail to create a resulting frame of 1x 3U + 1x 1U (Intellijel).Rail (one piece, threaded strip not included) for building DIY Eurorack cases. 84 HP = 427mm104 HP = 529mm114 HP = 579mm126 HP = 640mm168 HP = 854mm196 HP = 996mmType A rails feature a lid, which holds your modules in place so they cannot move up and down.For building your case you also might need some additionals: threaded strips and M3 screws holding your modules and M5 screws for mounting the rails (we have various types of screws here). As an alternative to the M3 threaded strips you can also use M3 slide nuts.The hole where the M5 screw sits later has no threading - an M5 screw will carve its way when you insert them. Alternatively you could use a tapping tool, but it's not really necessary.
€13.99*
Eurorack Rails - Low Profile - Type A (black)
available
Low profile Rails are smaller and lighter than the standard ones. The basis is the same as Type A standard but without the whole back.Rail (one piece, threaded strip not included) for building DIY Eurorack cases. 84 HP = 427mm104 HP = 529mm114 HP = 579mm126 HP = 640mm168 HP = 854mm196 HP = 996mmType A rails feature a lid, which holds your modules in place so they cannot move up and down.For building your case you also might need some additionals: threaded strips and M3 screws holding your modules and M5 screws for mounting the rails (we have various types of screws here). As an alternative to the M3 threaded strips you can also use M3 slide nuts.The hole where the M5 screw sits later has no threading - an M5 screw will carve its way when you insert them. Alternatively you could use a tapping tool, but it's not really necessary.
€12.70*
Eurorack Rails - Low Profile - Type A (gold)
available
Low profile Rails are smaller and lighter than the standard ones. The basis is the same as Type A standard but without the whole back.Rail (one piece, threaded strip not included) for building DIY Eurorack cases.84 HP = 427mm104 HP = 529mm114 HP = 579mm126 HP = 640mm168 HP = 854mm196 HP = 996mmType A rails feature a lid, which holds your modules in place so they cannot move up and down.For building your case you also might need some additionals: threaded strips and M3 screws holding your modules and M5 screws for mounting the rails (we have various types of screws here). As an alternative to the M3 threaded strips you can also use M3 slide nuts.The hole where the M5 screw sits later has no threading - an M5 screw will carve its way when you insert them. Alternatively you could use a tapping tool, but it's not really necessary.
€20.00*
Eurorack Rails - Low Profile - Type A (red)
available
Low profile Rails are smaller and lighter than the standard ones. The basis is the same as Type A standard but without the whole back.Rail (one piece, threaded strip not included) for building DIY Eurorack cases.84 HP = 427mm104 HP = 529mm114 HP = 579mm126 HP = 640mm168 HP = 854mm196 HP = 996mmType A rails feature a lid, which holds your modules in place so they cannot move up and down.For building your case you also might need some additionals: threaded strips and M3 screws holding your modules and M5 screws for mounting the rails (we have various types of screws here). As an alternative to the M3 threaded strips you can also use M3 slide nuts.The hole where the M5 screw sits later has no threading - an M5 screw will carve its way when you insert them. Alternatively you could use a tapping tool, but it's not really necessary.
€20.00*
Eurorack Rails - Low Profile - Type A (silver)
available
Low profile Rails are smaller and lighter than the standard ones. The basis is the same as Type A standard but without the whole back.Rail (one piece, threaded strip not included) for building DIY Eurorack cases.84 HP = 427mm104 HP = 529mm114 HP = 579mm126 HP = 640mm168 HP = 854mm196 HP = 996mmType A rails feature a lid, which holds your modules in place so they cannot move up and down.For building your case you also might need some additionals: threaded strips and M3 screws holding your modules and M5 screws for mounting the rails (we have various types of screws here). As an alternative to the M3 threaded strips you can also use M3 slide nuts.The hole where the M5 screw sits later has no threading - an M5 screw will carve its way when you insert them. Alternatively you could use a tapping tool, but it's not really necessary.
€9.00*
Eurorack Rails - Low Profile - Type B (silver)
available
These ones are smaller and lighter than the standard ones. The basis is the same as Type B standard but without the whole back. Type B rails DO NOT feature a lid, they are thinner.Rail (one piece, threaded strip not included) for building DIY Eurorack cases.84 HP = 427mm104 HP = 529mm114 HP = 579mm126 HP = 640mm168 HP = 854mm196 HP = 996mmFor building your case you also might need some additionals: threaded strips and M3 screws holding your modules and M5 screws for mounting the rails (we have various types of screws here). As an alternative to the M3 threaded strips you can also use M3 slide nuts.The hole where the M5 screw sits later has no threading - an M5 screw will carve its way when you insert them. Alternatively you could use a tapping tool, but it's not really necessary.
€9.00*
Eurorack Rails - Standard - Type A (black)
available
Rail (one piece, threaded strip not included) for building DIY Eurorack cases. Black anodized aluminium.84 HP = 427mm104 HP = 529mm114 HP = 579mm126 HP = 640mm168 HP = 854mm196 HP = 996mmType A rails feature a lid, which holds your modules in place so they cannot move up and down.For building your case you also might need some additionals: threaded strips and M3 screws holding your modules and M5 screws for mounting the rails (we have various types of screws here). As an alternative to the M3 threaded strips you can also use M3 slide nuts.The hole where the M5 screw sits later has no threading - an M5 screw will carve its way when you insert them. Alternatively you could use a tapping tool, but it's not really necessary.
€15.01*
Eurorack Rails - Standard - Type A (silver)
available
Rail (one piece, threaded strip not included) for building DIY Eurorack cases. Silver anodized aluminium.84 HP = 427mm104 HP = 529mm114 HP = 579mm126 HP = 640mm168 HP = 854mm196 HP = 996mmType A rails feature a lid, which holds your modules in place so they cannot move up and down.For building your case you also might need some additionals: threaded strips and M3 screws holding your modules and M5 screws for mounting the rails (we have various types of screws here). As an alternative to the M3 threaded strips you can also use M3 slide nuts.The hole where the M5 screw sits later has no threading - an M5 screw will carve its way when you insert them. Alternatively you could use a tapping tool, but it's not really necessary.
€11.00*
Eurorack Rails - Standard - Type B (silver)
available
Rail (one piece, threaded strip not included) for building DIY Eurorack cases. Silver anodized aluminium.84 HP = 427mm104 HP = 529mm114 HP = 579mm126 HP = 640mm168 HP = 854mm196 HP = 996mmType B rails DO NOT feature a lid, they are thinner.For building your case you also might need some additionals: threaded strips and M3 screws holding your modules and M5 screws for mounting the rails (we have various types of screws here).As an alternative to the M3 threaded strips you can also use M3 slide nuts.The hole where the M5 screw sits later has no threading - an M5 screw will carve its way when you insert them. Alternatively you could use a tapping tool, but it's not really necessary.
€10.00*

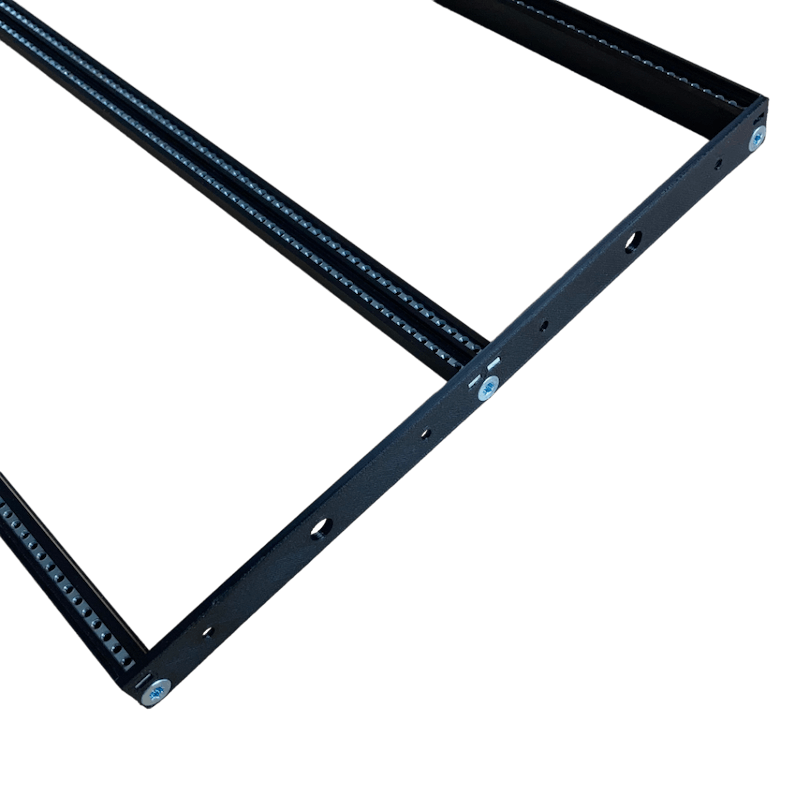

Side Brackets - 3U+3U-3D-LP-DBL-A-BLK
available
Side Brackets 3U+3U - 3D Printed - Low Profile + Double Rail - Type A - Black• Cheap alternative for Alu side brackets• Made for 2x Type A low profile rail + 1x double rail = only 3 rails needed! Saves cash & weight• You can insert threaded strips or slide-nuts without dismounting the frame• Beautifully rounded corners match the lid of the railsBe careful, do not overtighten the screws, as this could cause the brackets to break.This is only the brackets (always one pair), NOT the rails or whole frames! You need additional rails, M5 screws and threaded strips or slide-nuts. Others might call them side-parts, side-cheecks or side-panels.With these brackets you can easily build stable and precise Eurorack frames and mount them in your DIY case. Just take your rail length + 2x3mm and you have the resulting width of your frame.There are some different rail types on the market - these are made for the Exploding Shed rails. Might fit for others, but you should have a closer look before. We won't take scratched side brackets back! When you buy all stuff here, you are sure that all fits together in the end.Standard Rails vs. Low Profile RailsIt is possible to use the side brackets made for standard rails with low profile rails instead Then you have an overhang at the back, but who cares, as you don't see it later.Type A vs. Type BNever mix Type A with Type B stuff! That won't fit.Height: 3U & 1U - What does it mean?One normal Eurorack module is 3U in height. 5U would be the bigger Moog format, but we're mainly all Eurorack addicts here. 6U is basically 2 rows of 3U. 1U is the smaller "tile" format which exists as Intellijel size and the less prominent Pulp Logic size. We focus on Intellijel size here.Screws vs. BracketsAll side brackets are 3mm thick. With the standard M5 countersunk screws it might happen that the transition between threading of the screw and screw head (where it's still slim) looks slightly through the bracket in direction of the rail. To make the bracket really sit 100% tight on the side of the rail, you probably have to use a countersink (drill) like this https://www.obi.de/senker/lux-handsenker-hss-12-mm/p/4949624 or this https://www.obi.de/senker/lux-senker-comfort-12-mm/p/5816764 to open the hole on the rail side a bit and make sure the last 1/4mm or so of the screw head can sink through the bracket into the hole of the rail itself. Then the construction will be maximum stable. You have to do that yourself.
€15.90*
