ADDAC System - 900 Power Delay NEW - PDN

sold out at the moment

This small board was designed to bring some extra flexibility and customization regarding powering up a modular system.Whenever a modular system is turned on there's a current spike upon startup that will momentarily influence the PSU output and can take up to a couple seconds for the PSU to stabilize to it's stated specifications. PSUs can also have some delay between their power lines where one polarity is provided prior to the second one. They also commonly have a ramp like startup. All this is common and normally not a problem. While most modules are fine with this situation, there are others that can suffer from this and in a worst case scenario won't startup correctly. Some modules can also be sensitive to the timing of the ±12v, some may require both to arrive at the same time others won't start if -12v arrives prior to the +12v, etc.This small board allows to time the deployment of power to a specific module, it can delay each power line independently by 3 seconds, meaning that after powering up your modular it will wait for 3 seconds until it will provide power to the specific module connected to it. This delay time can also be customized by the user replacing a couple capacitors.Using this small board with more sensitive modules allow them to power up at a time past the initial spike and where the PSU is already stable and it will guarantee that the ±12V is delivered at exactly the same time.Besides this very technical use there are other creative and useful uses, for example plug it to those specific modules that "drive" your patch, like a sequencer or a clock and have them power up later so that other modules have time to start up and stabilize before starting up the clock. Go even deeper in this idea and have diferent 900PDs with diferent capacitors that will allow you to "program" a sequential module power up, useful for generative patches that run on a power timer in exhibitions and galleries.One more useful hack is to use it in those cases where your frame won't power up due to the initial current "spike", making it going over its limits and trip the protection mechanism failing to startup. The usual "hack" is to unplug one or two modules allowing it to power up and then connect the extra modules in. ***Warning*** power up issues like these simply means your PSU is close to its maximum and the pcb shouldn't be used as a permanent fix and we advise upgrading the PSU. However it will make it easier in that situation where you add one last minute module for that gig in a few hours and that extra module trips the psu protection, then as a temporary hack the pcb will make it easier for the frame to power up at the gig.There are 2 sets of jumpers to independently set the power line to be delayed, -12V, +12V or both.This pcb will be plugged onto your busboard and, in turn, allow a ribbon power cable to be connected to it.There are 2 models ADDAC901PDO for Old style Busboards and ADDAC901PDN for New style BusboardsDISCLAIMER: Both the ADDAC901PDO and the ADDAC901PDN are not to be used with modules that require external +5V supply.DIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
€14.00*
ADDAC System - 900B Busboard V2

available

ADDAC900B +5V - Low Impedance Bus Board with built in +5V Adapter19 Standard (2x8 pins) Boxed Headers ConnectorsCompatible with all Eurorack ModulesDIY-Kit-Type:SMD-Kit-2. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. It includes SMD and through-hole parts! For build guide, more info, videos etc. please check the buttons below.
€40.00*
Befaco - ChikiPower

only 2 left

ChikiPower is a USB-C standalone Eurorack Power Supply designed to complement any DIY bench. ChikiPower can provide up to 400mA per rail with a 20W USB charger, making it perfect for driving small setups. Besides its tiny desktop format, Chikipower is a super reliable power supply offering over-voltage and short-circuit protection keeping your devices safe.• Measurements: 54x52x20 mm• Power by USB version: USB 3.0/3.1 – 4.5W, USB BC 1.2 – 7.5W, USB Type C 1.2 – 15W, USB Chargers – up to 20W.• Number of power sockets: 3Features:• USB-C Eurorack Power Supply• Up to 400 mA per rail (when using a USB charger)• Tiny standalone format• Over-voltage and short-circuit protection• High-quality USB-C cable includedDIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
€94.01*
Befaco - Excalibus

available

Excalibus is a skiff friendly compact power supply and bus. Specially designed for medium portable systems, offering a great balance between space, power and stability!Specs:• Input: 9 – 18v (Recommended 45W)• Current: +12V: 1,25 A, -12V: 1,25 A, +5V: 350 mA• Measurements: 50mm x 400mm x 12mmFeatures:• 12mm tall• Horizontal connectors to maximize space• 2,5mm barrel power connector• On/Off buttonDIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
€105.91*
Befaco - Lunchbus

sold out at the moment

Lunchbus is an ultra-compact distribution bus with power supply.It’s 12 mm tall, featuring horizontal connectors to maximize space.Power connector and ON/Off are specially situated to make assembly on the case ultra-easy.Features:• 12mm tall• Horizontal connectors to maximize space• 2,5mm barrel power connector• On/Off buttonDIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
€82.11*
Befaco - Passive Bus

sold out at the moment

Passive bus board designed to expand your power system.DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
€17.85*

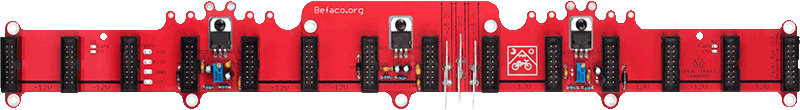

Befaco - Regulated Power Bus

available

Befaco’s regulated power bus features linear regulators for each rail and guarantees up to 1.5A of current without voltage drops and with minimum noise leakage.It comes with faston blades for daisy chaining several busses together for monster cases!Works best with our switched power supply.DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
€47.60*
Befaco - Trolley Bus

sold out at the moment

Ready to feed the most modern and power-hungry modules.A 5A power solution, 28 slots powered by four high-quality DC-DC converters.ON/OFF 4 HP - 3U module with 2 USB-A charging ports and a power button.Friendly Plug and Play, tools are not required.Features:• 25 mm height over regulators grid and 15 mm height on the rest of the bus• Horizontal connectors to maximize space• 2,5 mm barrel power connector• On/Off 4 HP module• 2 USB-A charging ports• Power brick: 135 W 2,5 mm barrel connector center positive (included)• Current: +12 V: 5 A, -12 V: 2,5 A, 5 V: 4 A• Measurements: 423 mm x 80 mmDIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
€189.21*
New
Black Noise Modular - Volt 55

only 2 left

The Volt 55 brings USB-C power to Eurorack systems, eliminating the need for bulky external power bricks. With any USB-C cable and a compatible power source, you can power your modular directly — often with the same charger you already use for your phone or laptop.Designed for flexibility, Volt 55 makes it easy to take your system anywhere. Whether on the couch, traveling, outdoors, or on stage, simply connect a power bank to enjoy hours of mobile music-making. It’s also possible to pre-heat your system before a live performance, ensuring oscillators are tuned and the rig is ready before plugging into a main power supply.After more than two years of design and testing, Volt 55 was developed with a focus on performance, safety, and durability. The result is a compact 4HP all-in-one power supply that can run systems up to 7U / 104 HP while also powering external gear. Three front-facing USB-A outputs provide additional flexibility for devices such as controllers, lamps, or other accessories.Volt 55 uses USB-C Power Delivery 3.0 (20 V) for reliable operation, offering a modern, efficient, and portable power solution for modular systems.Features:• USB-C powered (Power Delivery 3.0)• Suitable for systems up to 7U / 104 HP• High-efficiency, low-noise power supply• Can be powered via power bank• Supports up to 46 modules• Under-voltage and over-current protection• Powers up to 3 external USB devices via front USB-A ports• Compatible with Flying Bus Cables and Bus Boards• Short-circuit protection with self-recovery
€238.00*
Clacktronics - Proto PSU

only 1 left

3U or standalone Proto PSU is an easy to assemble DIY kit that is designed to make it easier and cheaper to have a dual rail power supply typical of DIY synth for prototyping purposes.Features:• Runs from a single 15 Vdc power supply• Outputs +/- 12 V and 5 V making prototyping easier without damanging your main PSU• Can be built to plug into breadboard or can be built as stand alone module (panel included)• Polyfuses on outputs protects against shortsDIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
€53.90*
Erica Synths - EDU DIY Labor PSU Connector

sold out at the moment

This PSU connector makes it easy to supply power to your Eurorack modules within the DIY.EDU Labor environment. It provides a simple interface for connecting modules to the Labor’s internal power distribution.Features:• Power connector for integrating Eurorack modules into the Labor• Compatible with the DIY.EDU Labor workspace• Simplifies prototyping and testing of powered modules• Compact and easy to installDIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
€17.90*

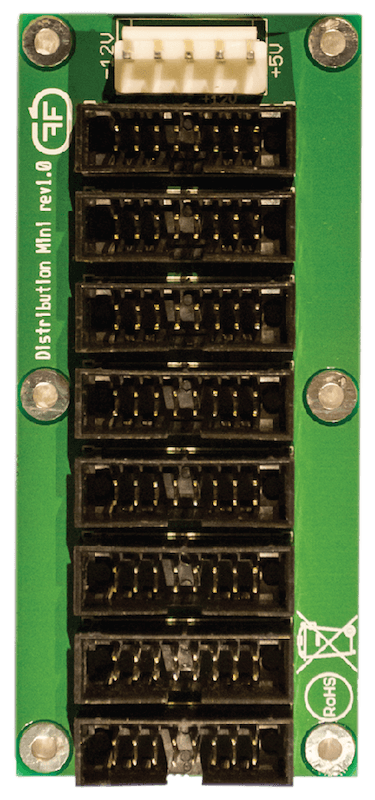

Feedback Modules - Distribution Mini

sold out at the moment

A mini power distribution board. This kit contains all the parts needed to build a complete Distribution Mini. There's no build guide available from the manufacturer, but it is really easy to build it. If you have questions, please email Freedback Modules!DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
€14.50*
Joranalogue - Test 3

sold out at the moment

Test 3 is a purpose-designed tool for measuring voltages and currents in your Eurorack system. This means that just a single circuit board or module can now replace a convoluted test setup with multiple multimeters, custom cables etc.Two push buttons allow you to cycle the value shown on the LED display between three measurements (voltage, current and stored peak current) of the three power rails. The peak currents continually update in the background on all rails, making it ideal for quickly getting maximum current figures.Apart from measuring the current draw of a single module, Test 3 also supports testing power supplies and cables, measuring an entire system (up to 1 A of current on each rail), troubleshooting DIY modules, powering a skiff or breadboard from a larger system...Note: Test 3 is available as a (very easy) do-it-yourself project, requiring some soldering and basic tools. It can be built either as a standalone circuit board with the DIY Kit, or as a Eurorack module with both the DIY Kit and Front Panel Kit. Most dealers bundle both kits together. With just 11 components to solder, this is a perfect synth DIY beginner project!Features:• Measures up to 20 V and 1 A on each Eurorack power rail, including +5 V.• 20 mV resolution voltage measurement, 1 mA resolution current measurement.• Peak current values of all rails are continually updated.• Pre-soldered SMD parts: perfect DIY project for beginners.• Precision-milled 2 mm anodised aluminium front panel with high-resolution, non-erasable graphics (module version).• Bullet-proof design: polarised power headers and MOSFET protection circuit.• Includes 16-to-16-pin Eurorack power ribbon cable.• Premium mounting hardware: black screws, black plastic washers and matching hex key (module version).• High-quality components and assembly; designed and made in Belgium.DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
€95.20*
Sinusoda - Bubbles

available

Ultra Low Noise filtering & safety technologies we’ve used in Juice. You can add up to two Bubbles to your Juice Powerboard.Bubbles can also be used with other power solutions by connecting the one header with a ribbon cable to your power unit. More information available at https://sinusoda.comNo power brick included - you will need to buy power brick separately (Power brick is needed for Juice & Straw to work, Bubbles is an expander for Juice, and only one power brick is needed for the whole system).Dimensions: 226 x 86 x 19 mm
€65.00*
Sinusoda - Juice & Straw

sold out at the moment

Juice Powerboard is Sinusoda’s Ultra Low Noise power supply solution offering up to +12V: 3A / -12V: 1.5A / +5V: 2A of clean power for your synths. Several Juices can be connected together in series for more power - 2 Juices can be powered from one 96 W Brick, and 4 Juices with 200 W Brick.Every output is actively filtered giving your modules really clean power. There are also various protective measures so that even if something unexpected happens your precious modules should be safe. Precise information and full technical data sheet available at https://sinusoda.comNo power brick included - you will need to buy power brick separately.Dimensions:Juice: 226 x 86 x 19 mmStraw: 3U, 3 HP, 22 mm Depth
€197.00*
Sinusoda - Juice Lite

sold out at the moment

Juice Lite Powerboard is Sinusoda’s Ultra Low Noise power supply solution offering up to +12V @ 2A, -12V @ 0.8A, +5V @ 1.5A of clean power for your synths.Every output is actively filtered giving your modules really clean power. There are also various protective measures so that even if something unexpected happens your precious modules should be safe. Precise information and full technical data sheet available at https://sinusoda.com35W Power Brick included.Features:• +12V @ 2A• -12V @ 0.8A• +5V @ 1.5A• 12 Power HeadersDIY-Kit-Type:Assembled unit. This is completely ready to use, nothing to solder or to assemble.
€95.00*
Transient Modules - Breadboard Supply

sold out at the moment

This small board is designed for you to easily power your breadboard with the common Eurorack voltages - directly from the bus in your case. The kit includes the PCB and all the parts necessary to supply voltages of -12V, + 12V and + 5V into your breadboard and it is possible to power the board from a 10 or 16 pin ribbon cable. In addition to reverse polarity protection diodes and power filtering capacitors, a point of connection to ground has been also added to solder a terminal to connect an oscilloscope or multimeter.Please be aware that there are multiple types of breadboards. This kit is designed to fit on 48 mm Breadboard!If you can't find a build guide, please email Transient Modules!DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
€9.90*

EURORACK POWER

RELIABLE POWER SUPPLY FOR ANY EURORACK SETUP

To run your modular synthesizer system reliably and safely, you’ll need a dependable power supply that delivers the standard Eurorack voltages: ±12V and, in many cases, +5V. These voltages are supplied via the standard 10- or 16-pin Eurorack ribbon cable, which connects your modules to a busboard or power distribution system.

At Exploding Shed, we offer a wide range of Eurorack power solutions tailored to different case sizes, power demands, and levels of DIY involvement. Whether you're just getting started or you're an experienced builder planning a large, multi-row system, we have multiple Eurorack power options to suit your needs.

Our selection includes active busboards, which combine power regulation and distribution in one compact, easy-to-install unit. These are ideal for both new builds and system upgrades. The Active busboards we sell ensure even power distribution across all connections.

ACTIVE, PASSIVE, AND DIY POWER OPTIONS

We also carry passive busboards, which are meant to expand the number of module connectors in your system. These boards do not regulate power themselves but are designed to be connected to an already-powered active busboard or power distribution module.

In this section, you’ll also find powered eurorack cases, offering a plug-and-play solution for those who want to get up and running quickly. Our range includes portable options like the 4ms Pod Cases, which are perfect for smaller, focused setups. These durable cases come with built-in power and are great for live performance or travel.

For those who enjoy hands-on building, we also stock DIY cases from brands like Befaco, which combine flexibility and quality. These kits allow you to assemble your own case and install power exactly the way you want it—perfect for tailoring your rig to specific requirements.

No matter your level of experience or the complexity of your setup, you’ll find the right power solution here to keep your modules running smoothly and consistently. Reliable power is the backbone of any modular system—make sure yours is up to the task.
