Product information "Dannysound - EN129 Thru Zero Oscillator"

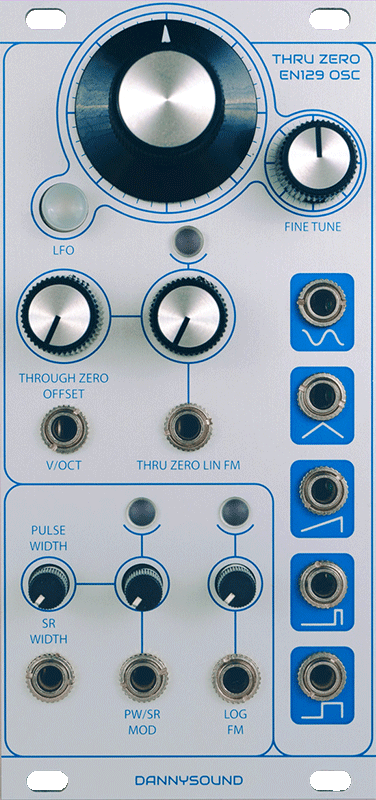

Analogue through-zero FM modulation produces a wide array of timbres particularly useful for bell like or percussive sounds.
Through zero linear frequency modulation can be precisely dialled in thanks to a dedicated CV input attenuator and through zero offset control.
Logarithmic FM is also available via it’s own dedicated input with attenuator and both FM inputs have an LED to indicate incoming voltages.
Simultaneous analogue wave outputs include: Sine, Triangle, Sawtooth, Square and Pulse wave with Pulse Width Modulation.
The PWM control goes to zero at either end of it’s range, which is very useful for creating rhythmic sounds with voltage control.
Furthermore the PWM control doubles up as wave shape modulation for the Sawtooth wave – gradually altering the waveform until it shifts half a cycle.
The EN129 features Coarse and Fine frequency controls as well as an LFO mode. LFO range is accessed via an LED pushbutton that also
acts as the LFO speed indicator – the button will light up when the waveform moves through its positive cycle.
A new addition of a Soft Sync Input allows the phase of the oscillator to be controlled by an external oscillator for an even greater range of timbres.
Features:
• Soft Sync Input
• Thru Zero linear FM
• Logarithmic FM
• Zero to zero pulse width modulation
• Sawtooth wave shape modulation
• Simultaneous outputs for: Sine, Triangle, Saw, Pulse & Square
• Coarse & Fine controls with LFO mode
• Includes power supply isolation on frequency controls
DIY-Kit-Type:
THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
| Current draw +12 V [mA]: | 51 |
|---|---|
| Current draw -12 V [mA]: | 47 |
| DIY Level: | Advanced |
| Depth [mm]: | 40 |
| Width [HP]: | 12 |
| Format: | 3U |
| Panel / Color: | Silver Alu |
