DIY Clock Divider Eurorack

4ms - Quad Clock Distributor Expander (Black)

available

The QCD Expander is an expansion module for the Quad Clock Distributor (QCD).The QCD Expander adds a host of features, turning the QCD into a programmatic non-linear sequencer. Each channel gets a CV Trigger Delay (Pulse Width) jack and knob, an additional output jack with three selectable modes, and attenuverters for all CV input jacks. Self-patched evolving rhythms and swing/shuffle patterns are easily obtained, as well as complete control over standard rhythmic patterns.DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.

€166.60*

4ms - Quad Clock Distributor Expander (Silver)

only 2 left

€166.60*

4ms - RCD Breakout (Black)

only 1 left

The RCD Breakout adds features to the Rotating Clock Divider module.Six switches allow you to set the maximum Divide-by amount, Gate or Trigger mode, Counting mode, Spread mode, and Auto-Reset. The RCD Breakout requires the RCD to function, and does not use any extra power.DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.

€49.98*

4ms - RCD Breakout (Silver)

only 1 left

€49.98*

4ms - Rotating Clock Divider (Black)

only 1 left

The Rotating Clock Divider (RCD) produces eight divided clock tempos from a single input clock. The divisions range from /1 to /64, including all odd and non-standard divisions such as /3 and /17 and /62. A Rotate CV input re-assigns the division number of each jack, allowing for creative mix-ups and experimentation. A Reset input jack helps to sync/start with an external clock.Features:• Divide-by-1 to Divide-by-64, on 8 output jacks• CV Rotate jack to shift divide-by amount on each jack• CV Reset jack to reset/re-sync all jacks• Optional break-out panels to expand functionality (Auto-reset, selectable Divide-by range, Gate/Trigger, Up/Down-counting)DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.

€104.96*

4ms - Rotating Clock Divider (Silver)

sold out at the moment

€104.96*

Details

4ms - Shuffling Clock Multiplier (Black)

available

The Shuffling Clock Multiplier (SCM) produces eight multiplied clock tempos from a single input clock, ranging from x1 to x8 (x32 by using the Breakout). Some of the outputs can be shuffled/swung. The amount of shuffle is controlled by a CV Slip jack. A Rotate CV jack re-assigns the multiplication number of each jack. More features of the SCM can be controlled by the SCM Breakout.Features:• Multiply-by-1 to Multiply-by-32, on 8 output jacks• Five Slipped/Shuffled/Skipped clock outputs (S3, S4, S5, S6, S8). Each is based on a multiple of the input clock frequency (x3, x4, x5, x6, and x8, respectively)• Three steady clock outputs (x1, x2, and x8), which are not effected by Slip/Shuffle/Skip effects• CV Rotate jack to shift multiply-by amount on all jacks• CV Slip causes particular beats to land ahead in time• Connects to the SCM Breakout for controlling more features: Pulse Width, Shuffle pattern, Skip, Re-sync, Mute, and 4x Fast• ISP header: Connects to in-circuit programmer such as AVR ISP MKII for reprogramming code• Maximum input frequency 3kHzDIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.

€104.96*

4ms - Shuffling Clock Multiplier (Silver)

only 1 left

€104.96*

4ms - Shuffling Clock Multiplier Breakout (Black)

available

The SCM Breakout is an add-on module for the Shuffling Clock Multiplier. It adds a host of new features for controlling shuffle/swing patterns (Slip, Shuffle, and Skip), as well as Pulse Width, Mute, and 4x Fast. Each feature has a CV jack and manual knob. The Mute and 4x Fast buttons act as inverters of the gate signal on their respective jack, and light up to indicate on/off status.Features:• New features for version 2:• Mute and 4x Fast are LED buttons• Pressing Mute or 4x Fast inverts the signal on the jack• Knobs are centered straight up (12:00)DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.

€109.48*

4ms - Shuffling Clock Multiplier Breakout (Silver)

only 2 left

€109.48*

Black Noise Modular - Dual Rectifier 2 - S

only 2 left

Dual Rectifier II - S is a small yet versatile and essential module for any Eurorack system. It can be used as an AC to DC converter, a distorsion, a complex waveform generator, a frequency doubler, a clock doubler or an envelope follower and more. Like all our modules, Dual Rectifier II is built with high-quality components only and designed to offer the best performance. Whether you're starting a small system or have a wall full of modules, Dual Rectifier II - S is a must-have for any Eurorack system. DUAL RECTIFIER II - S is divided into two sections: On top section the Positive Rectifier offer 1 input and 3 outputs : -Output 1 is an Inverted copy of input 1. -Output 2 Half-rectified, signal from input 1 below 0V will be remove. -Output 3 Full-rectified, signal from input 1 below 0V will be rectified. On bottom section the Negative Rectifier offer 1 input and 3 outputs : -Output 1 is an Inverted copy of input 2. -Output 2 Half-rectified, signal from input 2 above 0V will be remove. -Output 3 Full-rectified, signal from input 2 above 0V will be rectified. By default input 2 is normaled to output 1 (inverted) of the top section. DIY-Kit-Type: SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.

€88.00*

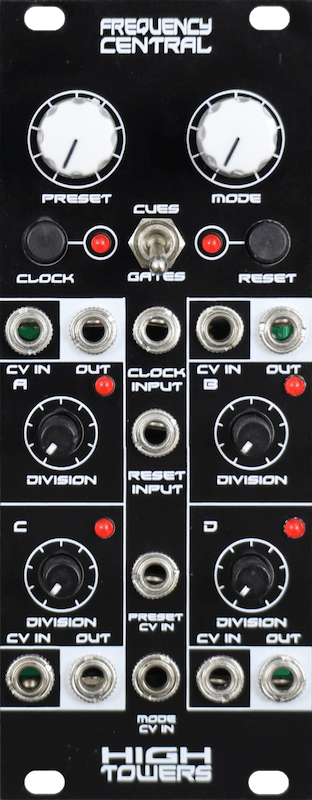

Frequency Central - High Towers

sold out at the moment

High Towers is a programmable 4 channel voltage controlled clock divider. It is able to receive external clock and reset pulses. Divides the incoming clock pulses by 1, 2, 4, 8, 16, 32, 64 and 128. Each of High Towers 4 assignable outputs can stream any of these divisions.DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.

€100.00*

Details

Music Thing Modular - Pulses (Turing Machine Expander)

sold out at the moment

Eleven rhythmic outputs for wONkY drum patterns.• Pulses turns the sequence from the main Turing Machine into a series of repeating rhythmic semi-random clock signals, that are based on the main clock input.• Seven of the 11 outputs are just the binary steps of the sequence on the front panel of the main module. The other four are derived from those pulses - so when steps 1+2 are active, the 1+2 output pulses.• As with most of the Turing Machine features, it is hard to explain, but very easy and intuitive in practice: send pulses from the module to anything that takes a rhythmic pulse; envelope generators, FM Index inputs, drum modules or other sequencers. Very complex polyrhythms come easily.• Because the Pulses are all related to the main module, they randomise, lock and change with that module. With the main module's big knob at 12 o'clock, the pulses are random. At 5 o'clock, they are locked, and at 3 o'clock they will 'slip' slowly over time.• You can try out a fully operational Turing Machine + Pulses + Volts in the free VCV Rack software.• Pulses connects around the back with a 16-way ribbon cable and works with any Turing Machine (Mk2, or Mk1 with the backpack).• Pulses uses Surface Mount components but is still a very simple build for anyone who has done a bit of through hole soldering beforehand.• Here is an epic series of videos from mixolydian2010 that documents the whole build process• Here's a very old audio demo from when I was developing Pulses, which shows the kind of polyrhythmic craziness it can create.• Despite involving SMD components, Pulses is a very straightforward DIY build, that most people complete without any problems. If you get stuck, the Pulses Github Issue List or the main Turing Machine issue list are probably the best places to start.DIY-Kit-Type:SMD-Kit-2. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. It includes SMD and through-hole parts! For build guide, more info, videos etc. please check the buttons below.

€52.30*

Details

Music Thing Modular - Startup

sold out at the moment

Startup is a headphone amp, six-input mixer, tap tempo clock, divider & multiplier in 4hp. It's the perfect way to start a small Eurorack case. Full DIY Kit.Startup is designed to be the best way to start a small Eurorack case, featuring a Mixer, Clock & Headphone Amp. This is a really easy project for DIY newcomers, all the SMD components come pre-soldered and the PCB is programmed and testing prior to shipping. You just need to solder the buttons, jacks and pot. The Music Thing Modular ‘Startup’ is designed to be the best way to help start a small Eurorack case.This 4HP module does three things:1) It’s a 5 channel output mixer, with a spare channel for stereo signals (like a Korg Volca or a phone).2) It’s a nice clean headphone amp with two outputs.3) It’s a useful tap-tempo clock, with a second channel giving divided or multiplied clocks.The best way to understand Startup is with with the Quick Start Manual. (Use button below)DIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.

€90.00*

Details

Patching Panda - Particles

available

Particles, is 4 channels of trigger modulation, capable of mathematically variating and manipulating your patterns with a combination of fun features to play with. It can evolve your rhythmic idea into more complex and groovy patterns which are difficult to achieve without music knowledge.You can create your algorithms from the rhythmic tools provided to be able to change the patterns instantaneously in many ways without worrying to sacrifice the original idea.You can shift and scramble the outputs, you can repeat the triggers with different time signatures to transform the grooves, mute in different ways, disappear by probability trigger inputs, disappear by probability repetitions, use sequential switching to shift randomly with a different kind of resetting, bypass each channel and set it individually the amount of each feature per channel when feeding external CV.The idea of Particles, was designed to provide features for building complex breaks, grooves, organic-evolving percussion sounds, different options for arpeggios, and even bass line grooves, the limits are decided by you.Features:• 4 trigger inputs/outs.• Repetitions with different distribution time to choose from.• Manually shift the output channels, scramble them randomly or clocked them in foward mode.• Reset the ouputs to 4 different shift modes.• Dissapear repetitions by probability per channel.• Dissapear the input trigger by probability per channel.• Mute each channel with clock divisions from input clock.• Mute manually the outputs• Disable triplets from repetitions to have musical patterns• Random volatges output clocked from clock input.• The slider keeps the adjusted value from each feature.DIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.

€243.95*

Rebel Technology - Logoi

available

Λόγοι is a voltage controlled clock divider, counter, and delay. It subdivides and adds time, creating organic, evolving signatures. Λόγοι brings movement and life to the trigger signal, from a subtle swing to bizarrely complex and intricate rhythms. Instructions The functions of Λόγοι are split with division on the left, and addition on the right. The right side operates either in Counter mode, by adding clocks, or Swing mode, by adding a time delay. The mode is set by the centre switch. The module has CV inputs (top jacks) and trigger outputs (middle left/right jacks) for each side, and a combined trigger output (centre bottom jack) which gives the output of both operations: divide and add. The trigger input (bottom left and right jacks) is shared between division and addition. There is also a reset input (middle centre jack) and manual reset switch (push switch up). There are three LEDs indicating the divided and added output to the left and right, and the combined output in the centre. Divide The divider toggles its output every n clocks, where n is the divisor. The divisor is set with a manual (top knob) and CV level control, in a range from 1 to 32. Count With the switch in the down position, the additive side functions as clock counter. The counter will output a trigger signal every m clocks, where m is the addend. The range is from 1 to 32 clocks, with 16 in the centre position. The combined output will divide and count. If i is the incoming clock, n the divisor, and m the addend, then it will output a a trigger signal every i/n + m clocks. Note that when the addend is larger than the divisor, in other words, n < m, then the divider frequency is higher than the addition and the combined output will never trigger. Swing With the switch in the centre position, the right side adds a time delay to the input. The amount of delay, or swing, ranges from 0ms to around 1000ms. In Swing mode, the combined output passes all clocks through until each time the divisor triggers, when it adds a time delay. The result is that every n-th clock is delayed by m, where m is the amount of swing and n is the divisor. As in Count mode, if the divisor frequency is greater than the delay time, the combined output will not trigger. In Swing mode, this is determined by the combination of input clock frequency and delay time. DIY-Kit-Type: THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.

€122.57*

Rebel Technology - Phoreo

only 2 left

Φορέω is a triple function processor for triggers, gates and clocks. It simultaneously performs pulse width modulation, multiplication and repetition, with individual input, output and CV for each function.• Pulse width modulation, as a ratio of the input signal rate, is adjustable from 0 to 100 percent. Multiplication also operates on the input signal rate, multiplying it by a factor from 1 to 16.• Repetition generates a burst of triggers, at the rate of the multiplier, with repetitions adjustable from 1 to 16.Each function has two knobs for manual and CV level, and three jacks for trigger input, CV input and trigger output.Pulse width modulation carries through to the outputs of the two other functions, and the three trigger inputs are normalled from top to bottom.When multiply and repeat are combined, Φορέω makes an excellent burst generator, perfect for rolls, flams and fills. The repeater gives precise control over burst length, while the multiplier easily moves from quarter notes, to thirds, to eights, to everything in between and lots more beyond. Go on, give us a snare rush!Φορέω is also extremely versatile with many utility functions, such as master clock doubling, clock modulation, and for triggering and clocking fast sequences. It even works as a square wave overtone generator with PWM, tracking audio input signals up to 20kHz.Φορέω perfectly complements Στοιχεῖα, Λόγοι, Κλάσματα and Χρόνος, completing our Euclidean series of trigger processors.DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.

€122.57*

Robaux - DCSN3

available

The Robaux Decision Tree randomly sends a gate to one of three outputs and then to one of three sub-outputs. Generate unpredictable rhythms. You can choose to route a gate to a single random output or play polyphonic gates. Utilize the knob to transition from total chaos to a repeating loop.The latch mode lets you hold an incoming gate. Pair it with a multimode filter to select various filter types. Use it to alternate between a variety of waveforms. The random input routing injects vibrancy into your sound.The DCSN 3 can also function as a traditional clock divider. The signal is split from half to 1/16 on the top four jacks. Additionally, a continuous sequence is output through the lower eight jacks. Odd divisions enable intricate rhythm creation. Utilize it at audio rate for polyphonic chords using just one square VCO.DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.

€79.00*

Shakmat - Time Apprentice

available

The Time Apprentice is a compact dual configurable clock divider. The dividers have their own set of divisions, perfect for applications such as clocking and resetting sequencers, syncing pingable modulation sources or triggering events. A set of jumpers at the back of the module allows for personalisation of the divider’s behaviour.Features:• Dual clock dividers• Dedicated potentiometer for each divider with two different ratio ranges• 4 jumpers at the back allowing customisation of the dividers (triggers/gates, auto-reset, alternative clocking)• Skiff friendly (25mm deep)• Intellijel and Pulp Logic format supportedDIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.

€51.17*

Shakmat - Time Wizard

only 2 left

Casting spells on every boring clock signals, The Time Wizard got a bag full of arcane time-warping tricks. All his magical feats are based on 6 dividers with selectable division factors and 4 switches providing 81 routing variations.This module's occult powers have been harnessed to easily clock and reset other sequencers with odd time signatures, provide weird clock division/multiplication ratios, and create complex poly-rhythmsFeatures:• Sextuple clock divider divided in two sections A and B• Dedicated potentiometer acting on the division factor for each divider• Clock multiplying and weird div / mult ratio abilities for the first section, first section incoming clock can be multiplied by 3 or 4, allowing to get easily triplets from a 16th clock or mult / div association as x4 / 7• Independant clocking or divider association abilities for the second section, so B5 and B6 can get their clock in internaly from B4. For example, associating B4 = /7 and B5 = /16 provide a hit at each clock begining of 4 bars with a 7/4 time signature• Auto-reset available for the first section or the whole module, the autoreset is provided by B6• Additional logic functions for divider A2 : A2 output can provide the following functions : A2 AND B5 or A2 OR A3• Jumper on the back for Trigger or Gate selection for B5 and B6• User replaceable firmware chipDIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.

€127.33*
