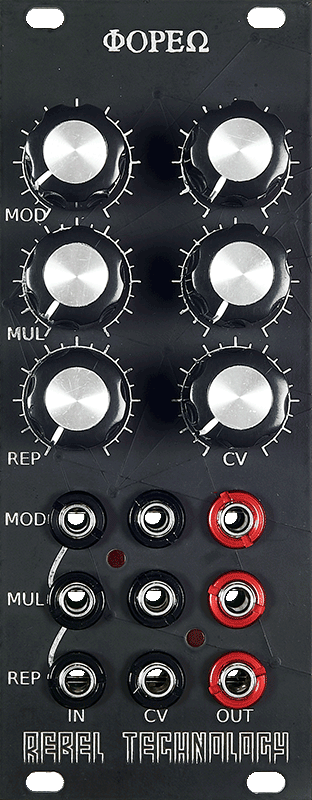

Rebel Technology - Phoreo

Product information "Rebel Technology - Phoreo"
Φορέω is a triple function processor for triggers, gates and clocks. It simultaneously performs pulse width modulation, multiplication and repetition, with individual input, output and CV for each function.

• Pulse width modulation, as a ratio of the input signal rate, is adjustable from 0 to 100 percent. Multiplication also operates on the input signal rate, multiplying it by a factor from 1 to 16.
• Repetition generates a burst of triggers, at the rate of the multiplier, with repetitions adjustable from 1 to 16.

Each function has two knobs for manual and CV level, and three jacks for trigger input, CV input and trigger output.

Pulse width modulation carries through to the outputs of the two other functions, and the three trigger inputs are normalled from top to bottom.

When multiply and repeat are combined, Φορέω makes an excellent burst generator, perfect for rolls, flams and fills. The repeater gives precise control over burst length, while the multiplier easily moves from quarter notes, to thirds, to eights, to everything in between and lots more beyond. Go on, give us a snare rush!

Φορέω is also extremely versatile with many utility functions, such as master clock doubling, clock modulation, and for triggering and clocking fast sequences. It even works as a square wave overtone generator with PWM, tracking audio input signals up to 20kHz.

Φορέω perfectly complements Στοιχεῖα, Λόγοι, Κλάσματα and Χρόνος, completing our Euclidean series of trigger processors.

DIY-Kit-Type:
THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
Current draw +5 V [mA]: 5
Current draw +12 V [mA]: 20
Current draw -12 V [mA]: 15
DIY Level: Easy/Medium
Depth [mm]: 20
Width [HP]: 10
Format: 3U
Panel / Color: Black FR4
Manufacturer "Rebel Technology"

Rebel Technology is a tech collective creating radically innovative music electronics since 2009. We are committed to using technology to create positive change and help people realise their creative potential.
