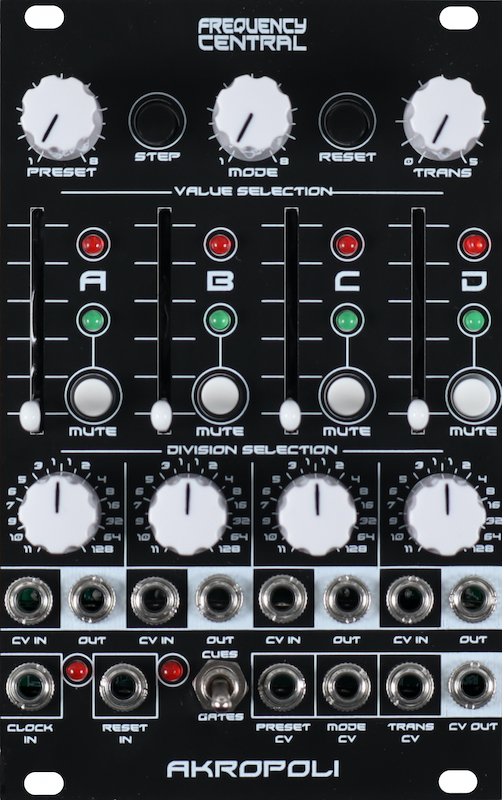

Frequency Central - Akropoli

Product information "Frequency Central - Akropoli"
Akropoli is an extension and enhancement of our successful Little Melody and High Towers modules, offering the features of both of these modules as well as some of it’s own unique features such as mute buttons per channel, manual transpose knob and 1V/oct transpose CV input. Akropoli operates using our proprietary TOOL V2 code, and can count in integers as well as multiples for even more subtle and evolving variations:

• top of the dial is /1
• clockwise from the top are /2, /4, /8, /16, /32, /64, /128
• anticlockwise from the top are /3, /5, /6, /7, /9, /10, /11

Akropoli is a generative sequencer based around clock divisions and a chromatic quantiser, used to create in-the-moment licks and riffs. It is more that the sum of it’s parts.

Akropoli’s internal operations can be considered as 4 clock dividers patched into a CV mixer via attenuators. The attenuators select notes over a 5 octave range, the clock dividers determine how often those notes are added to the mix. The final output of Akropoli is quantized chromatically for fast set up and continuously pleasing results. Akropoli has an onboard transposition knob, as well as a 1V/oct transposition CV input.

The 4 clock dividers are labelled A, B, C, and D. They all receive clocks from the same source, the divisions may be selected using the presets and the individual division selectors. The clock dividers can be set to count up, down, or to one of a variety of modes that move between counting up and down. For further information on Presets and Modes see the Little Melody User Guide.

Additionally, each clock divider has it’s own binary output (either high or low), these 4 outputs can be used to clock/gate/trigger other stuff on other modules to great effect.

THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
Current draw +12 V [mA]: 50
Current draw -12 V [mA]: 36
DIY Level: Medium
Depth [mm]: 35
Width [HP]: 6
Format: 3 U
Panel / Color: Black Alu
