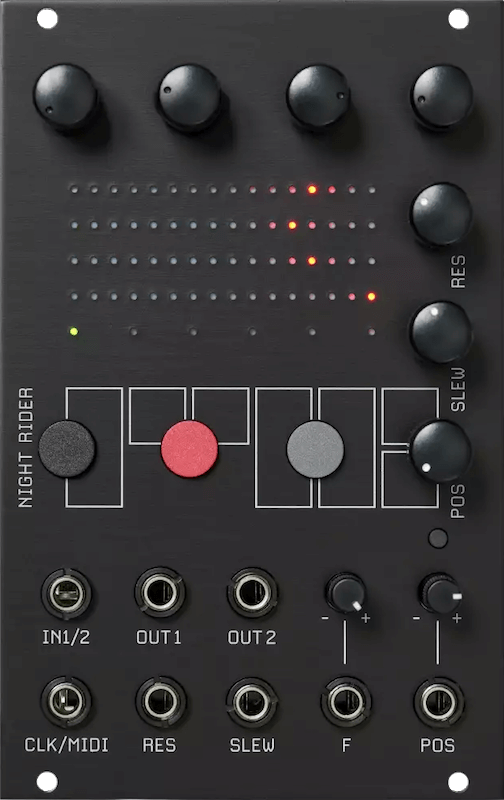

RYK Modular - Night Rider

Product information "RYK Modular - Night Rider"
Four multi model filters with stereo capability, combined with a six-stage four-channel modulation sequencer. Finally a filter bank that unifies the control of multiple parameters, enabling a spaghetti-free approach to formant animation fun.

NIGHT RIDER cleverly turns the dials to where you want them, when you want, via it's unique modulation sequencer.


Create dreamy swooshing 70’s phaser filter sweeps
Phenomenal for phoneme vocal formant rasps and wheezes
Plucking great for strumming Karplus Strong twangs, and pinging filter pings !
Or, turn your silk into shredded cabbage, with the built in bad-ass clipping-saturator

WARNING! To build the kit you MUST have the following:

• Two mini clamps
• Clean high quality 2/3mm tip solder iron [ chisel type recommended ]
• Mini Phillips screwdriver for M3 & M2 pan head screws
The PCB is double sided, and any mistakes soldering some parts might be very difficult to fix later

This is a complete kit for Eurorack, Including all parts:
1xPCB (All SMD parts come already pre-soldered), a high quality screenprinted 2mm aluminium panel, encoders, knobs, switches, LED displays PCB, jack sockets, and all sundry components. Includes USB data cable for firmware install, sexy black Eurorack power cable, RYK stereo splitter cable.

Four filter blocks, with multiple models , including:
• 6db BPF [ pingable ]
• 12db BPF [ pingable ]
• 12db variable width BPF
• Comb Filter for Karplus Strom [ pluckable & flanger vibes ]
• All Pass filter [ crazy Phaser vibes ]

• Dual Input and Stereo output, with Pan control for each filter in the stereo field. Input can be Mono [ CH1 - 1,2,3,4 ] or Dual [ CH1-1,2 CH2 - 3,4 ]
• Modulation Sequencer capable of being clocked, scanned, and interpolated
• CV inputs for sequencer Interpolated scanning, 1V/Oct frequency offset, Slew amount, Resonance amount, Clock or MIDI clock input for sequence animation, MIDI CC
• Memory slots for storing and retrieving Filter and animation setups, and retrieving preset formant, and chord based Filter setups

SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
Current draw +12 V [mA]: 52
Current draw -12 V [mA]: 9
DIY Level: Advanced
Depth [mm]: 25
Width [HP]: 16
Format: 3U
Panel / Color: Black Alu
Manufacturer "RYK Modular"
RYK Modular was formed in 2009 and released its first module the M185 sequencer in the Roland System 100m format. The M185 was licensed to Intellijel who based their popular Metropolis and Metropolix sequencers on its design. We have since developed the M185 in Eurorack format, featuring more advanced stage gate controls, and also the ability to split sequences in half. Our latest module, Vector Wave, is a compact Eurorack stereo polyphonic synth voice, using FM and Vector synthesis. We have also released a new module for the Roland System 100m format, the M175 Triple Resonator.
