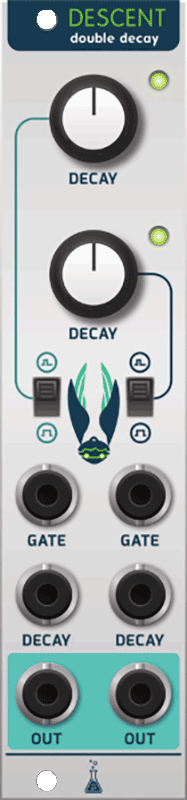

Sonic Potions - Descent

Product information "Sonic Potions - Descent"
Descent is an analogue dual envelope generator. It provides 2 independent voltage controlled decay EGs. The envelopes can be switched between triggered or gated (sustain) mode. The first trigger input is normalized to the second one and each channel provides a LED to visualize the envelope signal. The shape of the envelope can be adjusted between lin/exp with a trimmer on the back of the PCB. Decay times are adjustable between a few ms up to several seconds.
It comes as a complete kit with all needed parts to build it. That includes a multi colour aluminum frontpanel, high quality jacks and smooth 9mm metal pots.

THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
Current draw +12 V [mA]: 70
Current draw -12 V [mA]: 30
DIY Level: Easy/Medium
Depth [mm]: 40
Width [HP]: 6
Format: 3U
Panel / Color: Silver Alu
Manufacturer "Sonic Potions"

Sonic Potions is run by Julian Schmidt, currently located in Schwärzelbach, Germany. I started getting involved in the SDIY scene around 2001, building my own synths as a hobby. Over the years I've build a lot of stuff, including some of the Midibox machines, modular gear, a simplesizer, the xoxbox and several circuit bending projects. I've been producing music since the mid 90's and have been playing several shows with my project 'A Boy and his SID' around 2005. Some of my tunes can be found at Soundcloud. In 2008 I made my engineering diploma (Dipl. Ing) in media and computer science at the THM Gießen/Friedberg on the topic of generative wavetable synthesis. Before founding Sonic Potions, I worked for several years as a developer in the music industry on projects including the Scope DSP platform and the John Bowen Solaris synthesizer.
