Four decay envelopes with CV.Features:• 7 V peak output• Release: Aprox. 1 ms to 3 min.• Cascade trigger input• CV per channelDIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
• 2x ASR• LFO loop mode (150Hz - 3sec)• 7,5V peak output• Cascade trigger inputDIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
Envelope follower with preamp, level and 2 outs: Gate out, envelope out.Features:• Fine pot to adjust levels• Gate out, envelope outDIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
The Percussion Interface (PI) and PI Expander are a pair of Eurorack modules that generate gates and envelopes from acoustic drums, samplers, drum machines, and virtually any audio source.Converting microphone, instrument, line and modular signals into CV and clock/gate signals, the PI and PI Expander are suited for synchronizing sequencers or other modules to the rhythm of an audio track or live percussion. The modules can simultaneously be used as a pre-amp for microphones or line-level signals, while generating inverted envelopes useful for side-chaining. The PI module contains all the core functionality and can be used without the Expander to conserve space. The Expander requires the main PI modules and adds three gain stage options, a modular-level audio output jack, a 1/4" (6.35mm) input jack, and envelope attenuation capabilities. The two modules are only sold together, they are not available separately.Features:• Sensitivity knob, Low/Medium/High gain switch, and clipping LED• Sustain control to prevent misfires, increase gate length, and control the envelope• Envelope decay control• Non-inverted and inverted envelope outputs, useful for side chaining• Four envelope outputs: two attenuated with independent attenuators, and two non-attenuated• Envelope following or generation modes• Gate output for clocking sequencers or any unit with a clock or trigger input• Compatibility with drums, pads, samplers, microphones, piezos, drum machines, etc.• 1/8" or 1/4" input jack (6.35mm)

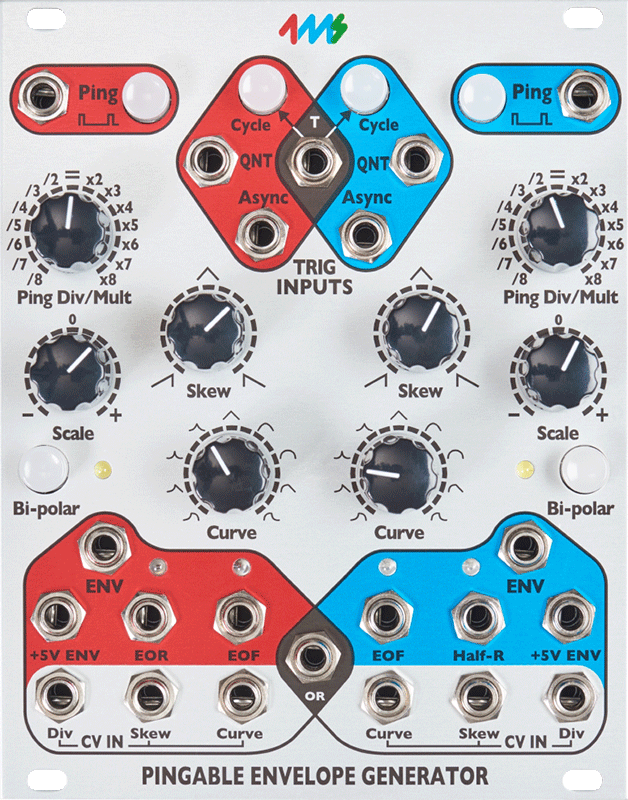

The Pingable Envelope Generator (PEG) from 4ms is a dual envelope generator whose envelope lengths are set by incoming clocks or "pings".The PEG has full CV control of envelope shape, skew, and ping (clock) division/multiplication, as well as a plethora of triggering and cycling options (AD, AR, quantization, cycle), and a tap tempo button for each channel.DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
The Pingable Envelope Generator (PEG) from 4ms is a dual envelope generator whose envelope lengths are set by incoming clocks or "pings".The PEG has full CV control of envelope shape, skew, and ping (clock) division/multiplication, as well as a plethora of triggering and cycling options (AD, AR, quantization, cycle), and a tap tempo button for each channel.DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
The Quad Pingable LFO (QPLFO) is a compact, playable four-channel tap-tempo, clock-syncable LFO with variable skew and reset.The QPLFO is designed to be useful in small portable systems that require maximum functionality in minimal space, as well as large systems that need maximum modulation sources.Features:• Quad "pingable" LFO's -- frequency is set by time between pulses ("ping")• Each of the 4 channels is an independent LFO• Can produce a variety of waveshapes: "Pluck," to ramp-down, to triangle, to ramp-up, and all shapes in between• Channels can easily modulate, trigger, and reset each other for complex and slowly morphing outputs• Slowest period is about 71 minutes (0.0002 Hz), fastest speed is about 500Hz (marginal tracking up to 1kHz)• Tap tempo button is free-running (LFO runs indefinitely), but external clock/Ping is auto-stopping (LFO stops when external clock stops)DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
The Quad Pingable LFO (QPLFO) is a compact, playable four-channel tap-tempo, clock-syncable LFO with variable skew and reset.The QPLFO is designed to be useful in small portable systems that require maximum functionality in minimal space, as well as large systems that need maximum modulation sources.Features:• Quad "pingable" LFO's -- frequency is set by time between pulses ("ping")• Each of the 4 channels is an independent LFO• Can produce a variety of waveshapes: "Pluck," to ramp-down, to triangle, to ramp-up, and all shapes in between• Channels can easily modulate, trigger, and reset each other for complex and slowly morphing outputs• Slowest period is about 71 minutes (0.0002 Hz), fastest speed is about 500Hz (marginal tracking up to 1kHz)• Tap tempo button is free-running (LFO runs indefinitely), but external clock/Ping is auto-stopping (LFO stops when external clock stops)DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
Another addition to our ADDAC300’s Expressive Controls Series.Preceded by the release of our ADDAC303 Muscle Sensing module this is the second module we make to take advantage of the physical body as a control source.This module originated from a simple idea: using one’s heart beat as a control source.Using a clip-on sensor, that can be attached to a finger or an ear lobe, the user’s heart rate will be acquired by sensing the blood flow passing under the sensor. This pulse will generate a trigger and an AD envelope.Clip-on sensor will be provided with the module.Features:• 0 +5v Trigger output• 0 +10v Envelope output with:• Attack, Decay, Amplitude and Offset controls• Two leds monitor the Trigger and Envelope OutputsDIY-Kit-Type:SMD-Kit-2. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. It includes SMD and through-hole parts! For build guide, more info, videos etc. please check the buttons below.
Instrument Interface is an eurorack pre-amp capable to bring any type of audio signal to modular levels thanks to its amplification circuit.The module can drive regular and condenser microphones (+48V Phantom Powered) as well as Instrument and Line signals with a very low distortion ratio.Instrument Interface offers some additional extra functions like a Trig/Gate extractor and Envelope Follower circuits, allowing you to use the character of your audio signal in more creative waysFeatures:• Neutrik combo Input• Phantom Power selector• Input Impedance selector• Separated Audio en Envelope Level controls.• Envelope Follower with attack and decay control• Gate and Trigger Extractor with threshold selector.DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
Kickall is a 6HP compact synth voice that features everything needed to make a big fat Kick sound. A stable VCO that tracks V/Oct, a couple of VCAs, envelopes for volume and pitch and an aggressive waveshaper.The module has been designed with a kick synthesis patch in mind.The audio path consists of a sinewave oscillator that passes across a Square Waveshaper and two VCA’s. The first VCA is for the Volume envelope. The second VCA is dedicated to general volume. Thanks to his CV input, it is possible o apply accents or affects the dynamics of notes. Feeding this input with audio generates a basic AM operation expanding the sonic range of the module.In the control path, KickAll has two envelope circuits to modulate the first VCA oscillator’s pitch. Both envelopes are fired at the same time manually or via dedicated trigger input.Through its Tune input, KickAll tracks eight octaves with high accuracy. Plug your favourite sequencer or CV source to create patterns out of the kick range, or feed it with an audio signal, for frequency modulation Fx.Features:• Accurate V/oct tracking.• CV controllable Sine to Square waveshaper.• CV controlled envelope decay for main VCA.• CV control over General volume (after VCA).• Wide range pitch envelope control.DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.

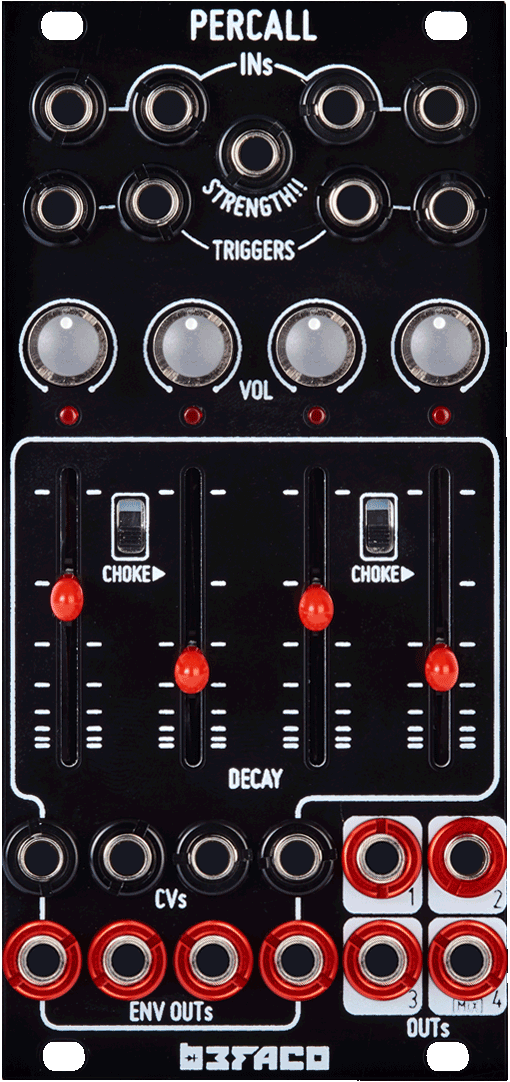

Percall is a percussive oriented module that will shape four different sound sources into percussive sounds. Percall has four VCAs with dedicated decay envelopes and a mixer, so you can prepare a percussion submix. Added strength input will provide extra dynamics to the sounds! To round up the module, audio inputs are normaled from one to two and from three to four, spicing them up with choke control. This allow to create open and closed Hats or kind of side-chained baselines with your kick.Features:• Four VCAs with dedicated decay envelope.• CV control over envelope decays.• Individual outputs for each envelope• Volume control per channel and normaled Mix out.• Strenght input affecting all four channels.• Audio Input 1 normaled to Input 2. Audio input 3 normaled to input 4.• Choke contrrols, binding Channel one with two and three with four.DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
Rampage is Befaco’s approach to an old invention: the Serge/Buchla ramp generator.We took the idea of a “patch programmable” function generator/processor, put two units in the same module and expanded them with new functions and ways to combine them: Slope detectors, analogue logic functions and evolved outputs.RAMPAGE APPLICATIONS• Voltage controlled Attack Decay envelope.• Attack Sustain Release Envelope .• More complex ADSR Style Envelope.• Dual VCO. With Square, PWM, Saw, Log, Exp and Triangle shapes. Hard and soft sync.• Gated VCO• VCO + Analog AND Gate (As ADTimbral VCA)• Dual Low Pass Filter• Dual Low pass Filter with VCO soft sync.• Low Pass Filter + AD Envelope• Dual “syncable” voltage controlled LFO with Square, PWM, Saw and Triangle shapes)• Complex LFO . Function combination.• CV controlled and “Ping-Pong” LFO.• Dual Slope detector. Distinguishes when and incoming signal (CV or audio) is rising or falling, and generates gates in concordance.• Comparator. Send a gate when B IN is bigger than A IN• Polyrythmic gate generator. With both channels synced between each other, it generates several “complex rhythm” gates.• Voltage controlled Slew limiter with independent attack and decay control and continuous variable shape between Log, linear and exponential• Peak Voltage follower. Max Out follow the maximum Level of the two inputs.• Minimum Voltage Follower. Min Out follow the minimum level of the two inputs• Envelope follower with adjustable response for rising ans falling flanks.• Voltage controlled Trigger Delay .• Burst Generator.Features:• Built around two voltage controlled Integrators aka Lag Processors.• Convert square signals into ramp waveforms• Achieve “Portamento” or “Glide” effect when applied to pitch CV signals.• Basic lowpass filteringDIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.

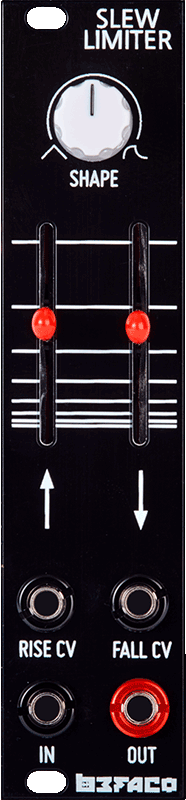

A voltage controlled slew limiter, AKA Lag Processor.
Slew limiter is a device that smoothes an incoming signal, limiting the maximum rate of the output voltage over time. It is widely used with pitch CVs to obtain portamento and CV slides, but is also very useful for converting a gate signal into a basic envelope.
Features:
• A Slew limiter is a device that smoothes an incoming signal, limiting the maximum rate of change of the output voltage over time. It is widely used with pitch CVs to obtain portamento but is also very useful for converting a gate signal into a basic envelope.
• The module has independent time controls for rising and falling voltages, each with it’s own CV.
• The “SHAPE” control allows you to change the curve response from linear to logarithmic.
DIY-Kit-Type:
THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
The VC ADSR is our take on the classic ADSR: now smaller, more powerful and user friendly.The circuit is based in a dual transistor “Current Mirror” (a voltage controlled integrator) and switching logic.Phase Time Limits:Attack: Min 3.0ms (down to 200µS with negative CV) // Max 10sDecay: Min 2.8ms (down to 400µS with negative CV) // Max 10sRelease: Min 2.8ms (with Sustain at maximum) // Max 10sFeatures:• Voltage controlled stages with manual control.• Gate output on each stage of the envelope.• Push button and Gate/Trigger input• Control of the response curve between each stage of the envelope (from linear to logarithmic/exponential)DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
The CubuSynth ADSR is a very versatile envelope generator. It features linear or exponential curves, TIME CV which shortens the overall time of the whole envelope, different mode settings, Level CV (saves an extra VCA) and normal (0V to +5V) and inverted (0V to -5V) Outputs.The TIME CV makes an excellent modulation input for either envelope modulation or LFO frequency modulation. It also has a PUNCH switch which holds the maximum level for a few milliseconds before starting the Decay stage. This is very useful for adding extra punch to short percussive envelopes.Features:• GATE and TRIGGER inputs for retriggering• MODE switch that allows selection of normal ADSR, Gated looping, or full LFO-style Looping mode• LEVEL CV for additional Volume control / Velocity input (Volume on 100% when nothing plugged in)• TIME CV for very dynamic modulations• Switch for linear or exponential mode• Two Outputs (normal 0V to +5V and inverted 0V to -5V)DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.

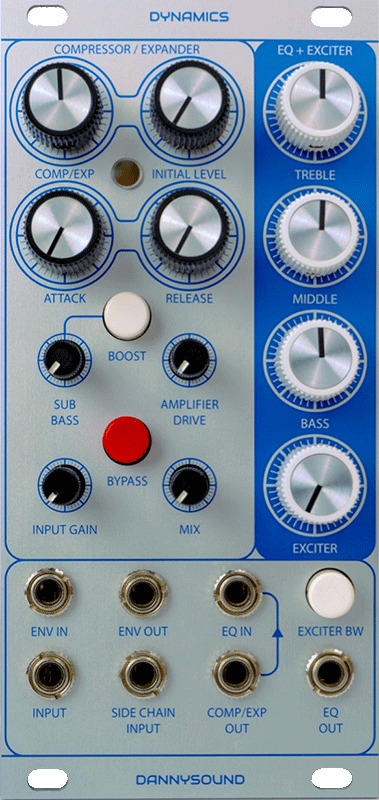

The Dannysound Dynamics is a compressor / expander originally designed to process drums but like most processing devices, it can be used for a wide variety of applications.The module comprises of:• Compressor / Expander• Sub Bass Enhancer• 3 Band Inductor-based EQ• Harmonic ExciterThe compressor / expander section uses a discrete transistor-based circuit that allows for soft clipping when overdriven.The envelope detector is known as a feedforward type of circuit; taking it’s input from the signal before it goes to the compressor rather than after.This type of circuit is known for having fast attack times.The Sub Bass enhancer has its own compression circuit that “ducks” the initial transient. This allows the sub bass to be increased without distortionon the transient peaks increasing the overall level.There is a MIX control to allow the unprocessed signal to be mixed back in with the processed signal.The 3 band EQ is an inductor based LCR design. After trying out various EQ topologies this was the design that sounded the nicest.When overdriven it gives a nice “bite” to the sound and it has a certain characterful charm that’s hard to put into words.The controls have a response that are subtle to begin with and get more pronounced as the controls are increased.The Harmonic Exciter adds a little distortion to the high frequencies which bring out the sparkle of cymbals or the snap snare drums.The operating bandwidth can be switched between Low (snare drum snap) or High (Cymbals sparkle).There are inputs for side chaining and control with an external envelope as well as an envelope out to make the envelope detector output available to drive other modules.It also features separate inputs and outputs for the Compressor / Expander and EQ sections, so they could be used as 2 separate modules.Features:• Compressor / Expander• Sub Bass Enhancer• 3 Band Inductor-based EQ• Harmonic Exciter• Envelope In/Out• Sidechain Input• Separate In/Out for Comp/Exp and EQ sectionsDIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.

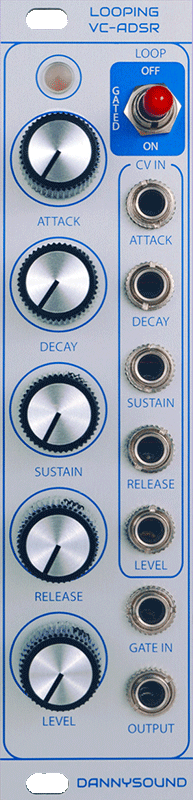

The LOOPING VCADSR is a 4-stage envelope generator that uses a Microcontroller from Electric Druid to generate a Voltage Controllable,Loop-able Envelope. The individual parts of the Envelope (Attack, Decay, Sustain, Release and Level) can all be individually controlled via CV.This module has 3 MODES of operation:• Normal Envelope – Gate signal fires ADSR• Gated Looping Envelope – ADSR loops whilst gate signal is high.• Looping Envelope – ADSR loops regardless of gate signal.When the envelope is looping, all 5 controls affect the output. Attack and Decay operate, as one would expect.The Sustain control sets the minimum voltage the decay part of the envelope will decay to.The Release sets a release time from the end of the Sustain period to the beginning of the next cycle.When the Sustain is set to 0 you can use the Release control to add a delay between the Attack and Decay cycles.In Normal Envelope mode the Sustain CV input can be used with an LFO source to add amplitude modulation that gradually increasesas the Envelope transitions from the Attack/Decay part of the envelope into the Sustain part.The Level CV is also a useful point for amplitude modulation or can be used for Velocity Sensitivity via CV.Features:• 3 Modes of operation: Normal, Gated Loop, Constant Loop• CV over: Attack, Decay, Sustain, Release, Level• Works with GATE signals from +5V to +12V• Output CV range 0V to +10V• Based on the ENVGEN circuit design from Electric DruidDIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
This is an easy to build Envelope Generator with a really extensive documentation and explanation of the circuit. Excellent learning kit!Many iconic sounds like the squelchy acid bass line, snappy techno kick drum, and swelling dream pop pad wouldn’t be possible if it weren’t for envelope generators. So, the next module in the mki x es.edu line is a slightly optimized ADSR envelope generator. Optimized because it has only 3 controls. With sustain on, it outputs an ASR (attack/sustain/release) envelope, but when the sustain is set to a minimum, it becomes an AD (attack/decay) envelope generator that ignores gate length; Release and Decay are controlled by the same knob. A looping function and an inverted output make the module more versatile for complex patches. The full EDU DIY system is designed to have 2 EG modules, therefore everyone aiming to build the whole system will need 2 kits.DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.

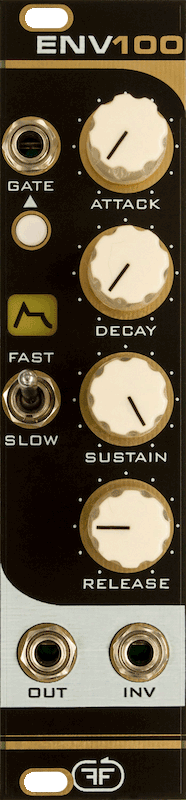

This is probably the fastest envelope generator in Modularland.Why? Because it is based on the fastest one. The classic Japanese modular from the seventies everyone loves.Features:• 4 control pots:Attack, Decay, Sustain, Release• 1 gate switch: triggers ADSR cycle• 1 time switch: switches between fast and slow envelope times• one normal and one inverting output jack 10V peak• standard 10 pin euro power (+12V / -12V)DIY-Kit-Type:SMD-Kit-2. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. It includes SMD and through-hole parts! For build guide, more info, videos etc. please check the buttons below.
