The MetaModule puts real knobs and jacks on virtual software modules. Step back from the computer and make music with hardware, while keeping the flexibility and expandability of software.THIS PRODUCT IS ASSEMBLED AND NO DIY!The MetaModule comes with over 160 built-in modules from 4ms Company, Befaco, HetrickCV, NonlinearCircuits, and Scanner Darkly, plus clones of popular classics such as the Mutable Instruments Eurorack modules, fun physical modeling algorithms, and lots of handy utilities.All of the included modules are also available on the computer using the free program VCV Rack. Whether you make patches on VCV Rack and transfer them to the MetaModule, or if you just create patches directly on the MetaModule, there are plenty of creative modules to inspire new ways to make music.MetaModule PluginsIf the 160+ built-in module aren’t enough, you can load more modules as plugins. Already there are over 200 modules in third-party plugins from Bogaudio, Valley, ChowDSP, NANO Modular, and the list is growing. We have an SDK available to make it easy for VCV Rack plugin developers to convert their plugin to a MetaModule plugin. Our licensing terms are non-restrictive: developers are welcome to distribute their plugin in any way they wish, commercially or not.Mapping Knobs and JacksThe MetaModule has 12 knobs that can be mapped to virtual knobs. Each knob can be mapped to up eight virtual knobs, and each mapping can have a different range and offset. You also can save a group of mappings as a Knob Set and switch between Knob Sets with the encoder. You also can map the 8 inputs and 8 outputs to virtual module jacks. Also, the MetaModule is a USB MIDI host, so you also can map MIDI CC, note, gate, and other parameters to knobs and jacks.ExpandersThere are lots of ways to customize your MetaModule. A Wifi expander allows you to wirelessly transfer patches from your computer. Add eight more knobs with the Knob expander, or buttons with the Button expander. A CV/Audio expander adds more high-resolution inputs and outputs, and the Gate In/Out expander adds not only gate jacks but also TRS MIDI and I2C.Under the HoodThere are six CV/Audio inputs, two gate inputs, and six CV/Audio outputs. The CV/Audio jacks are all 24-bit, 48kHz DC-coupled, -10V to +10V. A USB-C jack accepts MIDI devices and thumb drives. Patches and plugins can be loaded via a USB drive or microSD Card, and internal flash memory lets you save patches you always want to come back to.The processor is more advanced than anything 4ms has used in the past, and is among the most powerful processors found in Eurorack. Startup time and latency are blazingly fast.Features:Patches• Patches are loaded from microSD Card, USB drive, or via the Wifi expander• Patches can be optionally saved onto internal flash memory• Create patches using VCV Rack or directly on MetaModule• Patches can be given a name and descriptionMappings• Map each physical knob to up to 8 virtual knobs• Set range and offset for each mapping, including inverted control• Knob mappings are grouped into Knob Sets, and changing Knob Sets can be done quickly without menu-diving• Map physical jacks to virtual jacks, seamlessly making splits/mults• Add or edit modules, cables, and mappings in real-time while the patch is playing• Create alias names for mappings like "Kick Drum Level"Interface• Simple, intuitive graphical interface lets you zoom in on details, or zoom out to get a big picture• Patch View displays the patch as faceplates and cables, with knobs, buttons, and lights animating in real-time• Knob Set View simplifies the display, showing only the mapped knobs for the current Knob Set• Module View shows just one module and lists the names of each jack, knob, and control legibly• Mapping View lets you adjust details of a knob mapping• Adjust styles and visual preferences to your liking• Save, rename, duplicate, and delete patches• Firmware updater and plugin loader read from microSD Card or USB driveHardware• 12 Knobs• 8 CV/Audio outputs, 24-bit 48kHz, -10V to +10V, DC-coupled• 6 CV/Audio inputs, 24-bit 48kHz, -10V to +10V, DC-coupled• 2 Gate inputs• USB-C jack: MIDI Host or MSC (External drive) Host• microSD Card slot• Internal Flash RAM for additional patch storage• Dual-core 800MHz Cortex-A7 plus Cortex-M4 co-processor• 512MB DDR3 533MHz RAM• Bare-metal operation for fast startup and low latencyDIY-Kit-Type:Assembled unit. This is completely ready to use, nothing to solder or to assemble.
We started this module with the idea of developing a complex drum source. However, somewhere along the process we noticed how much better it performed as a synth voice and simply embraced this lucky accident.It features a VCO with a [FREQUENCY] and [FINE TUNE] knob plus a dedicated CV Input and Attenuator knob (tunable over 4 octaves). The VCO waveform output is achieved by selecting either a Triangle or Saw through a switch. The selected waveform can then be mixed/balanced against the square wave. The resulting mix is then sent to the Filter.The Filter features a [CUTOFF] and [RESO] resonance knob plus a Cutoff CV Input and Attenuverter knob.A 3 position switch is used to select the filter type: Highpass, Bandpass or Lowpass. The resulting output is then sent to the VCA.The VCA features an Input with [INPUT GAIN] knob which at maximum can amplify the incoming signal by a factor of 2.This is a very important control, it accepts any signal Trigger, Gate or CV. Whatever input is plugged in the signal is then fed through an AD with a very short attack and controllable decay through the [VCA DECAY] knob plus the CV Input and Attenuverter knob. The resulting slewed signal is then used to control the VCA gain. This signal is also sent to the CV OUTPUT as well as the LED monitor.The Accent input adds to the Input signal creating a different amplitude output. The CV OUTPUT is normalled to the Frequency and Cutoff inputs.DIY-Kit-Type:SMD-Kit-2. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. It includes SMD and through-hole parts! For build guide, more info, videos etc. please check the buttons below.
cDVCA or class-D VCA is a new kind of VCA based on an entirely novel concept that is inspired from class-D amplification technology. This is not a transparent VCA and brings a lot of character to the sound.The first VCA that tracks 1V/octConcept: The input signal is turned into an ultrasonic PWM signal (~34kHz). The PWM is scaled to the desired amplitude and then filtered back down to the original signal.The twist: The PWM frequency can be lowered down into the audio spectrum and the frequency can be controlled via its 1V/oct input allowing for crazy waveshaping that tracks your melodies.The drive controls an innovative clipping method that does not rely on overdriving any circuitry and therefore results in distortions with a very defined character.The signal then goes into a 1 pole VCF/tone circuit that allows to keep things under some amount of control as the harmonics produced by this module can be very aggressive.With no input the module generates a simple square wave and therefore can be used a simple synth voice (VCO→VCA-VCF)DIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
cDVCA or class-D VCA is a new kind of VCA based on an entirely novel concept that is inspired from class-D amplification technology. This is not a transparent VCA and brings a lot of character to the sound.The first VCA that tracks 1V/octConcept: The input signal is turned into an ultrasonic PWM signal (~34kHz). The PWM is scaled to the desired amplitude and then filtered back down to the original signal.The twist: The PWM frequency can be lowered down into the audio spectrum and the frequency can be controlled via its 1V/oct input allowing for crazy waveshaping that tracks your melodies.The drive controls an innovative clipping method that does not rely on overdriving any circuitry and therefore results in distortions with a very defined character.The signal then goes into a 1 pole VCF/tone circuit that allows to keep things under some amount of control as the harmonics produced by this module can be very aggressive.With no input the module generates a simple square wave and therefore can be used a simple synth voice (VCO→VCA-VCF)DIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
Kickall is a 6HP compact synth voice that features everything needed to make a big fat Kick sound. A stable VCO that tracks V/Oct, a couple of VCAs, envelopes for volume and pitch and an aggressive waveshaper.The module has been designed with a kick synthesis patch in mind.The audio path consists of a sinewave oscillator that passes across a Square Waveshaper and two VCA’s. The first VCA is for the Volume envelope. The second VCA is dedicated to general volume. Thanks to his CV input, it is possible o apply accents or affects the dynamics of notes. Feeding this input with audio generates a basic AM operation expanding the sonic range of the module.In the control path, KickAll has two envelope circuits to modulate the first VCA oscillator’s pitch. Both envelopes are fired at the same time manually or via dedicated trigger input.Through its Tune input, KickAll tracks eight octaves with high accuracy. Plug your favourite sequencer or CV source to create patterns out of the kick range, or feed it with an audio signal, for frequency modulation Fx.Features:• Accurate V/oct tracking.• CV controllable Sine to Square waveshaper.• CV controlled envelope decay for main VCA.• CV control over General volume (after VCA).• Wide range pitch envelope control.DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
Experimental synth voice focused on ambient pads and drone-like soundscapes.Features:• Stereo External input with selectable gain.• 5-second looper Records either the stereo input or the module’s output• Sine oscillator• Supersaw oscillator• Wavetable oscillator that uses the Looper buffer• Multimode filter: low-pass, band-pass, high-pass, and comb filter.• 3-band resonator• 2-tap echo• Reverb with macro control for size, filtering, and direction.• CV Control with attenuators on most parameters.• Various types of self-modulation with configurable routing and control over level and speed.• External synchronization via sync input.• Powerful randomizer with four different targets, three levels of intensity and undo/redo.• Knobs catch behavior functionality for re-coupling parameters’ positions.DIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
Ilse is an elegantly minimal, yet fully functional synthesizer voice in a compact 10 HP Eurorack module. The only thing you need to let it meow is a CV source to trigger its 1V/Oct frequency input (or a MIDI to CV converter and a MIDI sequencer) . Because it has a low part count it is ideal for Eurorack beginners or entry-level DIY projects.Ilse is named after a cat, living in the legendary “Villa” in Weimar, Germany. The “Villa” was a place where a community lived and came together. Many underground concerts and parties took place here before the house got sold, renovated, and the mayor moved in. We created the graphics on the aluminum face-plate in her memory. Ilse (the synth) makes great acid sounds, so it was only logical to illustrate a cat tripping. Turn the knobs to make her look around or roll her eyes.Ilse is designed to be affordable, easy to build, yet flexible, and feature rich. It is a synthesizer voice for your Eurorack, but can even be driven without a rack using two 9V batteries (not included).Ilse is fully open source (KiCad schematic and layout is available in a git repository) and inspired by Syntherjack’s single-chip synthesizer Totoro. Check out his website with nice explanations, e.g. on the filter (we use the same filter on Ilse). We extended the design for external voltage control on filter, oscillators and LFO. Unlike Totoro, Ilse is designed around a unique oscillator design, which integrates the exponential conversion directly into the oscillator core. This results in an efficient circuitry saving you build time, parts and costs.PCB and face-plate are manufactured in the EU.Features:Functions• Two saw tooth oscillators• Bridged-T low pass filter with resonance control• Triangle LFO with speed control, and routing to filter and/or oscillators• Simple mixer and detune for oscillatorsControls• LFO Speed, Filter Modulation, Osc Modulation• Filter Cutoff, Filter Resonance• Tuning, Osc2 Detune• Osc1/Osc2 (Filter in)• Output volumeInput/Output• 1V/Oct CV for oscillators (0-5V)• Gate (0-5V)• Filter cutoff (0-5V)• External filter input• Volume controlled output• LFO Speed (linear, via solder pad on back, 0-8V)• Oscillator 2 detune (linear, via via solder pad on back, 0-8V)DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
Eowave's Weather Drones is an all in one drone voice for eurorack modular. The Weather Drones can be self patched, or used with other eurorack modules via CV and trig inputs. Check out this video. The architecture of the module is as follows, some of which is pre-patched:• Digital tri wave oscillator, controls are freq, spread (adds more triangle waveforms, up to 8), character (wave folder), FM with attenuator• LFO with square and tri wave out• Filter with cutoff and feedback, mod input with attenuator and second mod input without• AD envelope with level attenuator• Random sample and hold noise (driven by square wave LFO) with slew• VCAVersion 1.5 is a full kit with SMD parts presoldered. This version is technically updated to the previous versions and all SMD components are already pre-soldered. All THT parts to be soldered by you.* Before you ask yourself: the big potentiometer is delivered without nut. It's ment to be like this.This is a Do-It-Yourself kit, not an assembled module.DIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
100% analogue fully modular super flexible drum voice module.Features:•White noise source•Release generator with voltage control•Voltage controlled filter with lowpass and highpass options•Voltage controlled amplifierDIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.

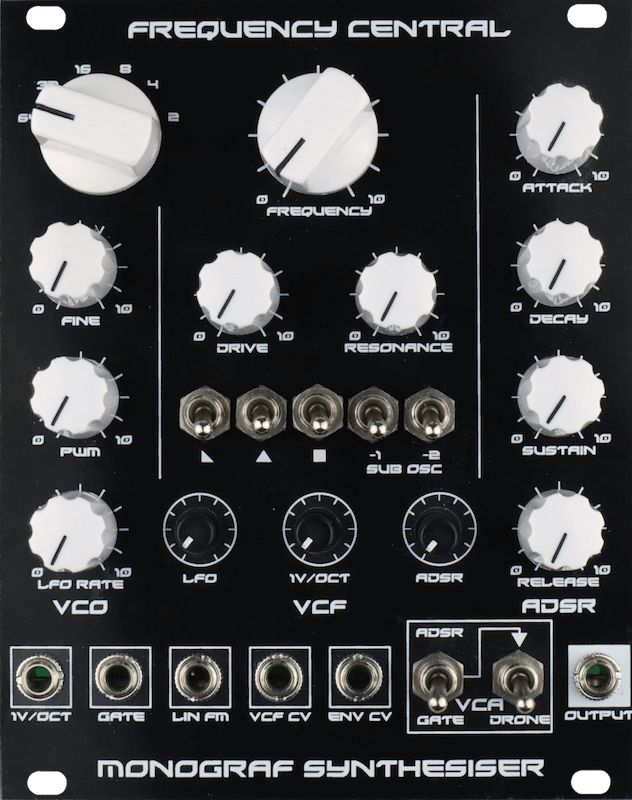

20 HP hardwired synth voice for fast set up times, with a decidedly East Coast feel.Monograf is a fixed signal path monophonic synth voice with many unique features, including a number of patch points for flexibilty within a modular setting. Our aim was to design the simplest full featured and good sounding single VCO synth within as small a space as possible, while offering a broad sonic palette and fast setup times.DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.

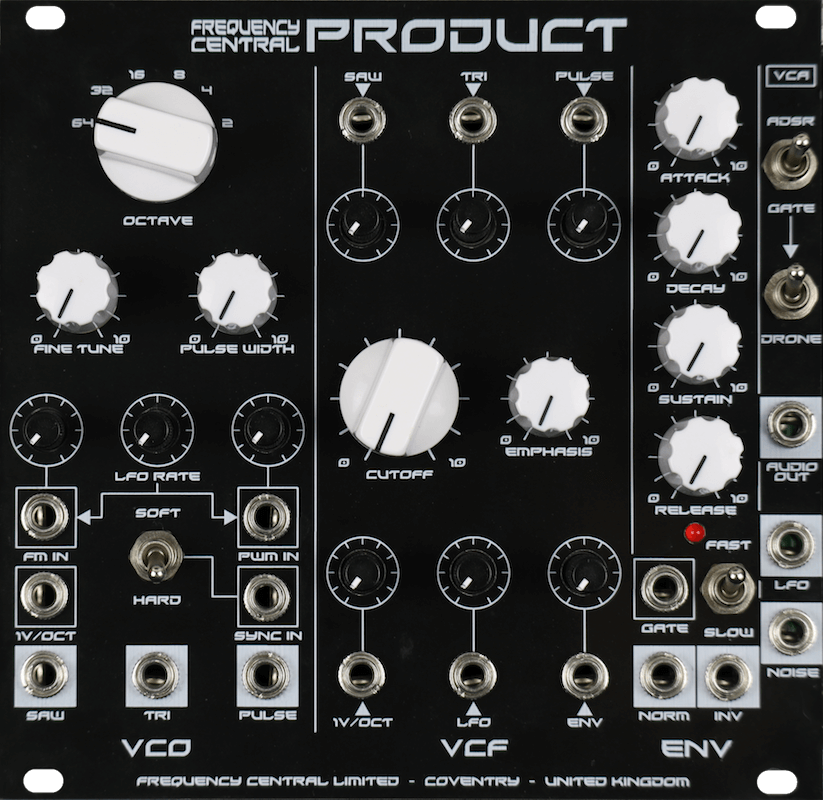

Full featured, fully modular synthesiser for Eurorack with a pre-patched normalised signal path for quick setup.A combination of the XVCO TWO, Raging Bull 3.0 VCF/VCA, and System X Envelope, where each section can be used completely individually or as part of the larger whole.Onboard LFO for PWM and FM and Noise Source.DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
Legs is an analog kick and percussion synthesizer module in eurorack format.It is based around a triangle core voltage controlled oscillator and a two levels voltage controlled saturation stage.Each parameter has its own dedicated CV input, when a control signal is patched into any of the inputs its corresponding knob will act as a CV attenuator.Two independent gate/trigger input with level control can be used to create accents, pattern changes and generally work on track dynamic.Features:• Triangle core VCO• Two-stage voltage controlled saturation• Two separate gate/trigger inputs• CV control over every parameterDIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
Liquid Foam is a modular monophonic analog groovebox that revolves around a dual sequencer designed to encourage complex pattern exploration. At the core there’s an analog VCO with two stages of waveshaping, a decay-only EG that can be inverted any step and a 2-pole resonant VCF.Features:• Two sequencers• Newly designed filter and wave mixer• Separate trig and envelope output• Newly added bandpass filter outputDIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
HEX cor is a digital polyphonic synthesizer with a capacitive keyboard, potentiometers for signal modulation and an adaptable looper that through its unusual shape explores new ways of interaction and sound synthesis.Features:• Capacitive pads• Recording button• Octave• Waveform• Decay• Loop speed• Loop length• Sync switch• Header pins• 3,5 mm headphone jack output• USB C power portDIY-Kit-Type:SMD-Kit-2. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. It includes SMD and through-hole parts! For build guide, more info, videos etc. please check the buttons below.
This is the Eurorack version of Elmyra 2, it is available in black and white. Elmyra 2 is a 4-voice digital/analog hybrid platform for microtonal sonic exploration, capable of creating anything from lush ambient soundscapes to gritty droning textures and shrieking noises, available as a 42 HP Eurorack module or semi-modular desktop synth. With 31 modulation targets, 4 polymetric sequencers, delay, additional per-voice effects, a choice of various filters, as well as onboard LFOs and utilities, it is essentially a purpose-built small modular system in itself. A set of preset cards (included) or electronic components like capacitors or diodes can be plugged into the front panel in order to change the sound character.Features:• 4 independent voices activated by touch or CV• wavetable-based complex oscillator engine, up to 12 oscillators in total, 1V/octave compatible• chromatic mode makes chords and harmonic sounds possible, microtonal scales supported• 41 patch points• 31 modulation targets• touchpads with analog envelopes that can be used as modulation sources• resonant filter switchable between:• boomy and aggressive multimode 2-pole state variable filter (low-pass, band-pass, high-pass)• creamy 4-pole low-pass ladder filter• delay with unhealthy amounts of feedback• lo-fi reverb• analog OUCH circuit: a unique combination of destructive distortion, waveshaping and filtering• sonic character can be customised by using special preset cards (set of 4 included) or components like diodes that can be plugged into the front panel• preset cards can be used with other Neutral Labs modules• external audio can be processed via audio input• 9 per-voice modulations and effects:• unison detune• dual sub-oscillators• saturation• bitmangler• sample rate reduction• noise• high-pass filter• low-pass filter• 2 LFOs: 1 sine, 1 complex morphable• 4 sequencers with arbitrary step length per voice (up to 128), allows polymetric structures• delay time and LFOs can be clock-synced or unsynced (tap tempo is also possible)• utilities• dual attenuator/buffered multiple/voltage generator• CV summing circuit• case made of plant-based bioplastic and native German oakwood• boutique synth handmade in GermanyDIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
This is the standalone version of Elmyra 2, it is available in black and white. Elmyra 2 is a 4-voice digital/analog hybrid platform for microtonal sonic exploration, capable of creating anything from lush ambient soundscapes to gritty droning textures and shrieking noises, available as a 42 HP Eurorack module or semi-modular desktop synth. With 31 modulation targets, 4 polymetric sequencers, delay, additional per-voice effects, a choice of various filters, as well as onboard LFOs and utilities, it is essentially a purpose-built small modular system in itself. A set of preset cards (included) or electronic components like capacitors or diodes can be plugged into the front panel in order to change the sound character.Features:• 4 independent voices activated by touch or CV• wavetable-based complex oscillator engine, up to 12 oscillators in total, 1V/octave compatible• chromatic mode makes chords and harmonic sounds possible, microtonal scales supported• 41 patch points• 31 modulation targets• touchpads with analog envelopes that can be used as modulation sources• resonant filter switchable between:• boomy and aggressive multimode 2-pole state variable filter (low-pass, band-pass, high-pass)• creamy 4-pole low-pass ladder filter• delay with unhealthy amounts of feedback• lo-fi reverb• analog OUCH circuit: a unique combination of destructive distortion, waveshaping and filtering• sonic character can be customised by using special preset cards (set of 4 included) or components like diodes that can be plugged into the front panel• preset cards can be used with other Neutral Labs modules• external audio can be processed via audio input• 9 per-voice modulations and effects:• unison detune• dual sub-oscillators• saturation• bitmangler• sample rate reduction• noise• high-pass filter• low-pass filter• 2 LFOs: 1 sine, 1 complex morphable• 4 sequencers with arbitrary step length per voice (up to 128), allows polymetric structures• delay time and LFOs can be clock-synced or unsynced (tap tempo is also possible)• utilities• dual attenuator/buffered multiple/voltage generator• CV summing circuit• case made of plant-based bioplastic and native German oakwood• boutique synth handmade in GermanyDIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
BD-Z v2 is a versatile kick drum module for Eurorack system focus to design a wide range of bass drum percussive sounds. The implementation of thru-zero FM/PM BD-Z can deliver an an immense variety of textures and harmonics, it has an amount of control of the modulation, input to preserve the primary kick drum sound or not. Check out this video from Superbooth 2021.Also the implementation of amplitude modulation to the sound core it can add more harmonics from the modulation source to be able to shape the sound, transform and morph it into many other drums sounds like bongos, congas, etc. Attention carefully was considered to maintain the signal gain always punchy so when the amplitude decay or the distortion is fully open it won't get out of control.The distortion can be subtle or aggressive, it has a dedicated accent like the vintage style drum machines to add dynamics to the rhythms. Features two amplitude envelopes out to control other utilities with the shape of the signal. BD-Z is a powerful Kick drum module with many modulation possibilities!DIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
Hatz v2 is an all-analog module designed to help you sculpt all sorts of hi-hat and percussion sounds. At the core of the module are two noise generators: complex (LFSR) noise and (LOGIC) noise metals. Both channels are equipped with 2-pole filters, and a VCA + envelope combination. A CV-able Decay control for the Open Hi-Hat channel offers a handy solution for more rhythmic animation.New in version 2, Hatz offers a Texture control with dedicated CV input. This control offers a wide range of distinct noise textures, making Hatz great for everything from classic, clicky hats to metallic snares, filtered clangs, and more. V2 also sports revised envelopes and a vastly improved signal to noise ratio, making for a significant upgrade to this already stellar module. Here is a video demo.Features:• Analog hit-hat module combining 2 kinds of noise heart ❤ complex (LFSR) noise and (LOGIC) noise metals• 2 pole filter for each individual channel with CV• Vintage drum machine accent style with choke function• Linear and exponential fall selection in both channels• Decay control with CV in the open hat• Hold intput for manually open the envelope via gates and CV• 2 leds indicatorDIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.

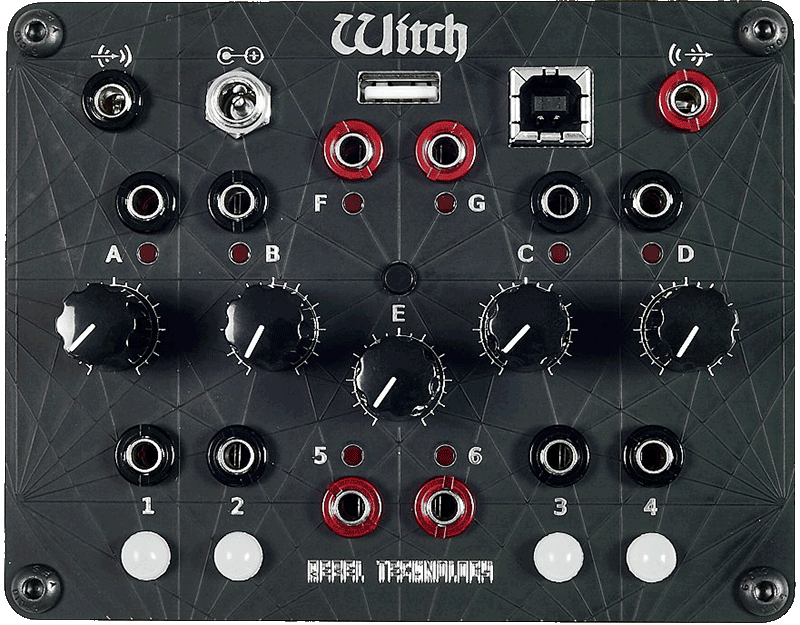

The Witch is a compact and versatile polyphonic synthesizer. The Witch can be used Standalone, with a MIDI Controller, Analog Sequencer, or MIDI Polyphonic Expression / MPE Controller. It's USB powered or with 9V DC.It comes with four different synth engines:• SubTract Virtual Analogue synthesizer with 48dB resonant filter• VoSim Voice Simulator formant synthesizer• WaveBank Morphing wavetable synthesizer• QuadSampler Sampler with peak filterEach synthesizer engine is provided in two variants:• Expression Mode Continuous pitch control and MPE support• Performance Mode Discrete pitch control, standalone chords and classic MIDI supportOther features include two assignable tap tempo LFOs with continuously variable shapes and a powerful effects section.As well as eight factory patches, the Witch is fully compatible with the OWL Library of more than 300 patches. What’s more, users can create their own patches using any of the supported DSP languages: Pure data, Max gen~, SOUL, Faust, Maximilian and C++.The Witch has its own Synth Editor web application: witch.rebeltech.orgDIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
All knobs and no menus, an FM synth engine with hands-on controlALGO's four oscillators can be configured in series or parallel combinations, to create Complex FM or additive sound textures.A unique Algorithm Display indicates the signal flow from one oscillator to another - easy to understand FM with pretty twinkly lights!Each oscillator has controls for Level and Frequency, allowing easy adjustment of FM timbres, no menu diving snorkels needed.Modulation inputs for Frequency or Level for each oscillator - patch in a couple of Envelopes, and you have an instant FM synth voice.Bored of Sine waves? A generous Wave Warp control bends things through Triangle to Pulse wave and back again.Wave Warp can be applied to Carrier, Modulator or both types of oscillator.For the more discerning mangler, Wave Folding is also available in three delicious flavours; Symmetric, Asymmetric and Soft Clip!A Global Detune spread control with CV input is great for creating Netflix apocalypse drones that descend into the abyss.Lastly an onboard Stereo Chorus can add a vivacious 1980's shimmer to all your FM creations.Oh, nearly forgot. It's Stereo !Features:• Frequency range 8 Hz - 35 kHz• Sampling frequency 85 kHz @ 2 x oversampled (170 kHz)• Four through zero oscillators• Harmonic intervals, Fine tune, or Fixed frequency options for each oscillator• Amplitude OR Frequency/V/OCT CV inputs for each oscilator• 9 FM algorithm combinations• Wave Shaping and three types of Wave folding• Multi Stage vari-speed high quality chorus effect• Stereo output, with Pan control for each oscillator in the stereo field• Pretty lights !PLEASE NOTE THE KIT IS ONLY SUITABLE FOR EXPERIENCED BUILDERS.DIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
