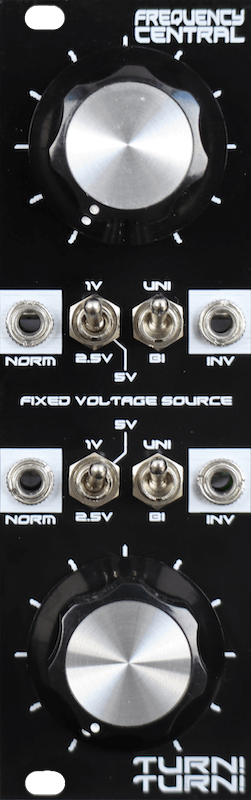

Turn! Turn! grew out of a conversation with Steve Levine – when a producer of such note makes a suggestion you have to listen – and act on it. Steve suggested that it would be useful to have a fixed voltage source under the control of a big knob, and the ability to go from as little as 1V over the entire range of the knob. Hence subtle, incremental changes are possible.
The final feature set includes a voltage selection switch as well as a unipolar/bipolar switch. Both normal and inverted outputs are included. The following ranges are available from Turn! Turn! depending on switch positions:
• 0V to 1V
• 0V to 2.5V
• 0V to 5V
• -1V to 1V
• -2.5V to 2.5V
• -5V to 5V
DIY-Kit-Type:
THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
Current draw +12 V [mA]: | 9 |
---|---|
Current draw -12 V [mA]: | 9 |
DIY Level: | Easy/Medium |
Depth [mm]: | 29 |
Width [HP]: | 8 |
Format: | 3 U |
Panel / Color: | Black Alu |
