Product information "Frequency Central - Wave Runner"

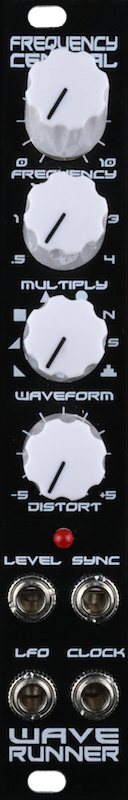

Wave Runner is a multi-waveform sync-able LFO based on the Electric Druid TAPLFO2D family of code, but with some significant additions and improvements. The TAPLFO2D-FC PIC and code is exclusive to Frequency Central and was developed specifically for the Wave Runner, and is not compatible with similar modules.

All waveforms can be skewed using the Distort knob, as well as control over pulse width of square, and distortion of the cyclic waveforms, this get you control over Noise freq as well as bitcrushing, bitcrush of S/H down to 1 bit for random triggers. Tap sync input, for syncing to whatever. Wave Runner measures the last two incoming pulses and syncs itself to these. Multiply knob allows for Wave Runner to run at x0.5, x1, x1.5, x2, x3 and x4 of the incoming sync pulse. Freq is from stupid slow (0.025Hz) into low audio range (50Hz). The latest version also features Level CV input to control the absolute output level of the LFO.

Features:
8 Waveforms available
• sawtooth
• ramp
• pulse
• triangle
• sine
• noise
• sample and hold
• stepped triangle / sawtooth / ramp

DIY-Kit-Type:
THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
Current draw +12 V [mA]: 13
Current draw -12 V [mA]: 8
DIY Level: Easy
Depth [mm]: 48
Width [HP]: 4
Format: 3U
Panel / Color: Black Alu
Manufacturer "Frequency Central"
