Product number:
100214
Product information "Patching Panda - Punch"

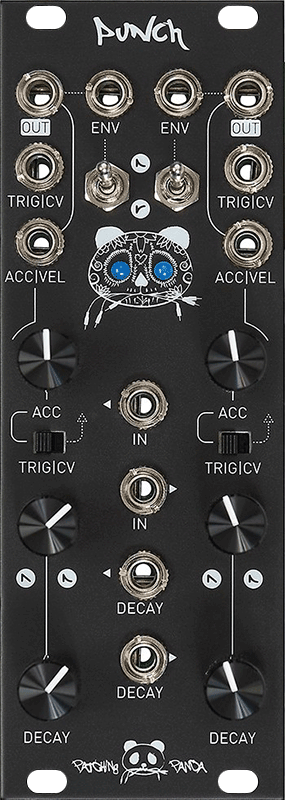

Punch is the ultimate VCA-DECAY module for Eurorack! Specially designed to generate dynamic percussive sounds but also capable of basslines, leads, envelopes and more. The VCA has a built in voltage controlled Decay envelope that can be turned from smooth to more aggressive exponential responses and can be activated with triggers, gates or cv’s. Punch also features accent inputs on each channel, for more interesting and dynamic sounds and envelopes. Punch v3 features two modes per channel to play, with a dedicated switch control: “vintage style drum machine mode” and “dynamic cv mode”. Punch is capable of creating AM sounds with control voltage on the “amount”. Each envelope can be inverted via dedicated switches on the front panel. If you use an inverted envelope alongside the accent input you can create ducking effects like side-chain compression. Check the official demo here and here a DivKid video about Punch.
Features:
• Dual VCA with voltage controlled Decay
• Adjustable Decay curve
• Snappy attack ideal for percussion
• Accent inputs
• Envelope shape invert switches
DIY-Kit-Type:
SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
Features:
• Dual VCA with voltage controlled Decay
• Adjustable Decay curve
• Snappy attack ideal for percussion
• Accent inputs
• Envelope shape invert switches
DIY-Kit-Type:
SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
Current draw +12 V [mA]: | 55 |
---|---|
Current draw -12 V [mA]: | 52 |
DIY Level: | Medium |
Depth [mm]: | N/A |
Width [HP]: | 9 |
Format: | 3U |
Panel / Color: | Black Alu |
