ADDAC System - 313 Triple Gate Pedal
€110.00*
available, delivery time 3 – 5 working working days *
Product information "ADDAC System - 313 Triple Gate Pedal"

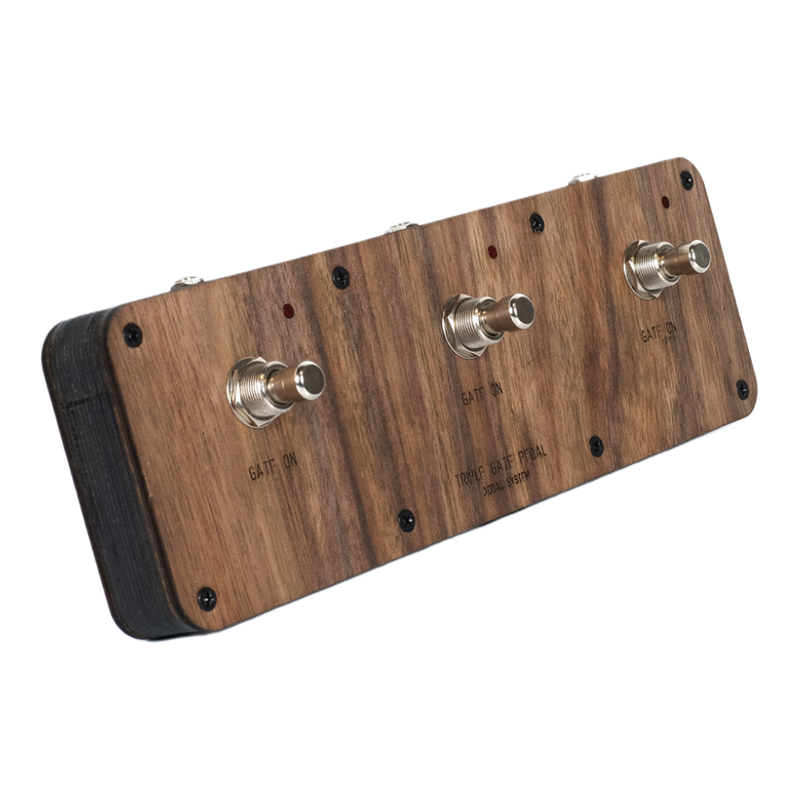

ADDAC313 expands the ADDAC gate-pedal concept to three independent foot switches. Each debounced 3.5 mm output delivers +5 V while its pedal is pressed and returns to 0 V when released, making hands-free control of three modular destinations straightforward. The unit runs from a single 9 V battery.
Features:
• Three independent momentary gate pedals
• Three debounced 3.5 mm gate outputs
• +5 V while pressed and 0 V while released
• Powered by one 9 V battery (not included)

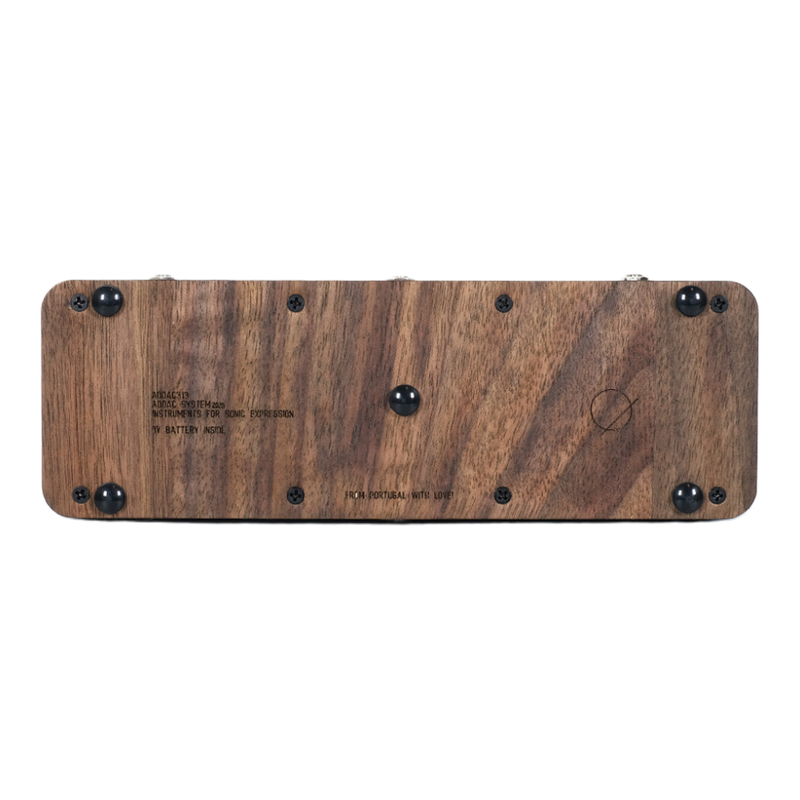

• Laser-cut birch plywood enclosure with walnut veneer
DIY-Kit-Type:
SMD-Kit-2. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. It includes SMD and through-hole parts! For build guide, more info, videos etc. please check the buttons below.
| DIY Level: | Medium |
|---|---|
| Depth [mm]: | 74 |
| Height [mm]: | 25 |
| Material / Color: | Birch plywood with walnut veneer |
| Width [mm]: | 222 |
ADDAC develops advanced instruments for sonic expression.
We started back in 2009 with an ambition to explore the potential crossover between analog synthesizers and computers. Because our first creations sparked a lot of attention, we decided to work hard and put them in your hands.
Today our product line is focused on a new breed of hybrid synths, that make use of the best of both the digital and analog worlds. We've grown to be able to reach thousands of enthusiastic clients, friends and collaborators. Always looking into conceptualizing and developing the most exquisite instruments, we hope you're able to join and share this passion with us.
Our solutions can be found in many personal studio throught the world, owned by musicians in several planes of stardom. We especially appreciate seeing them being used in a very wide range of musical genres.
