Alfa Rpar - AS194DE - Matched Transistor Pair

Product information "Alfa Rpar - AS194DE - Matched Transistor Pair"
The AS194 and AS394 are junction isolated ultra well-matched monolithic NPN transistor pairs with an order of magnitude improvement in matching over conventional transistor pairs.
Electrical characteristics of these devices such as drift versus initial offset voltage, noise, and the exponential relationship of base-emitter voltage to collector current closely approach those of a theoretical transistor. Extrinsic base and emitter resistances are very low, giving very low noise and operating over a wide current range.

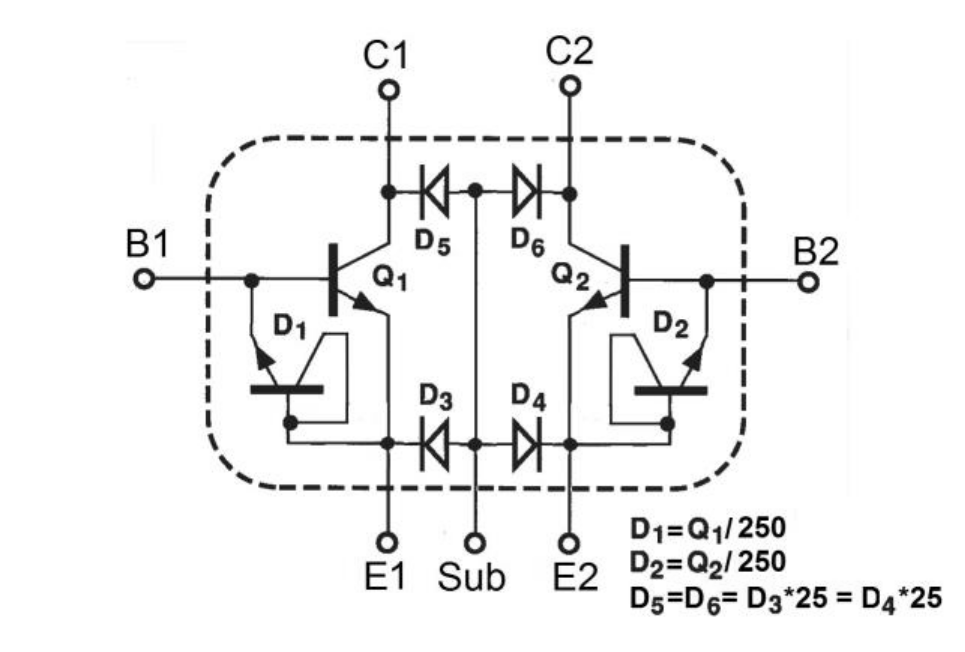

To guarantee long term stability of matching parameters, internal clamp diodes have been added across the emitter-base junction of each transistor. These prevent degradation due to reverse biased emitter current- the most common cause of field failures in matched devices. The parasitic isolation junction formed by the diodes also clamps the substrate region to the most negative emitter to ensure complete isolation between devices.
The AS194H, AS394H, AS394CH are available in the 8-pin metal can TO5-8 package, the AS194DE and AS394DE in the 8-lead plastic SOIC-8 (150mil) EPAD package.

Features:
• "Ideal" and identical transistors
• Common-mode rejection ratio > 120dB
• Emitter-base offset voltage < 100v
• Emitter-base offset voltage temperature drift 0.1µV/°C
• Current gain (hFE) matched <2%
• Parameters are guaranteed in the range of collector current of 10µA - 1mA
• Noise Voltage Density of 1.8nV/srt(Hz)
• Ideal logarithmic properties
Basic Function: Matched 2xNPN
IC Package: SOIC-8 (SMT)
Pin Count: 8
Pin Pitch [mm]: 1,27
Technology: SMT
