Alfa Rpar - AS3109D - Voltage Controlled Filter (VCF)
Product number:
103114SO16
Product information "Alfa Rpar - AS3109D - Voltage Controlled Filter (VCF)"

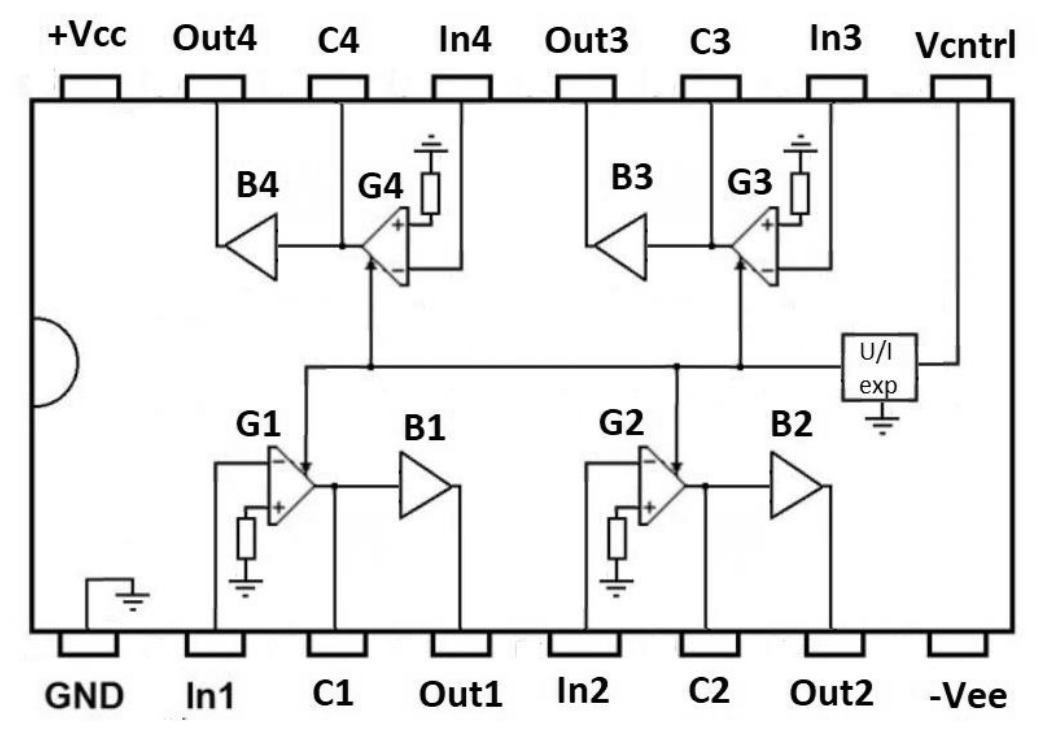

AS3109 is a high performance voltage controlled four-pole filter. The four independent sections may be interconnected to provide a wide variety of filter responses, such as low pass, high pass, band pass and all pass. A single input exponentially controls the frequency over greater than a 15 octave range with little control voltage feedthrough. AS3109 benefits from high input impedance buffers.
Features:
• voltage controllable range – till 15 octave
• accurate exponential frequency scale
• high input impedance buffers
• wide transconductance range
• low input offset voltage
• low control voltage feedthrough - 45 dB typical
Applications:
• for electronic music
Features:
• voltage controllable range – till 15 octave
• accurate exponential frequency scale
• high input impedance buffers
• wide transconductance range
• low input offset voltage
• low control voltage feedthrough - 45 dB typical
Applications:
• for electronic music
| Basic Function: | VCF |
|---|---|
| IC Package: | SOIC-16 (SMT) |
| Pin Count: | 16 |
| Pin Pitch [mm]: | 1,27 |
| Technology: | SMT |
