Alfa Rpar - AS620AN - Low Power General Purpose Instrumentation Amplifier
Product information "Alfa Rpar - AS620AN - Low Power General Purpose Instrumentation Amplifier"
Low Cost Low Power Instrumentation Amplifier

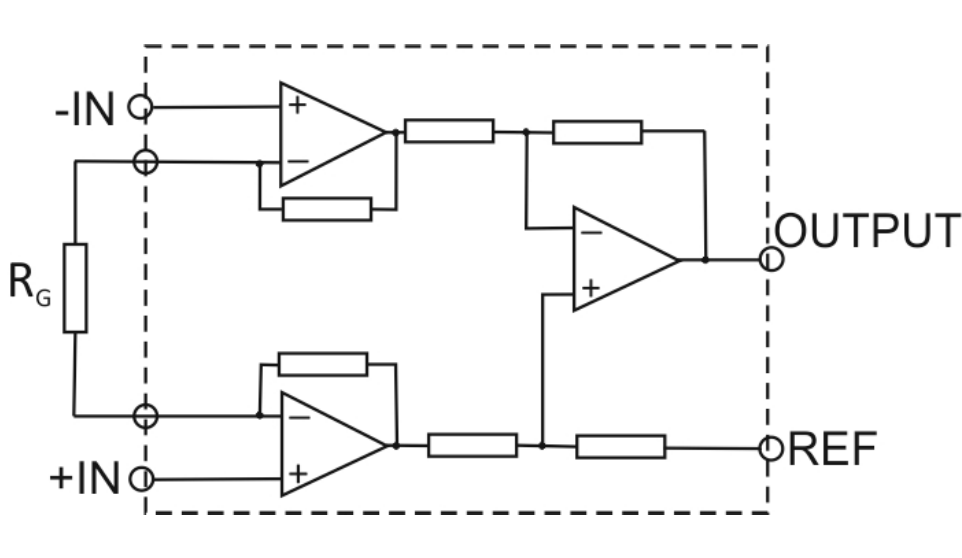

• Gain Set with One External Resistor :
G= 1 + (49,4 kΩ/RG) (Gain Range 1 to 1000)
• Wide Power Supply Range (±2.3 V to ±18 V)
• Higher Performance than Three Op Amp IA Designs
• Available in 8-Lead SOIC Packaging
• Low Power
Features:
• Pin-to-pin compatible with industry standard AD620
Applications:
• Weigh Scales
• ECG and Medical Instrumentation
• Transducer Interface
• Data Acquisition Systems
• Industrial Process Controls
• Battery Powered and Portable Equipment
• Gain Set with One External Resistor :
G= 1 + (49,4 kΩ/RG) (Gain Range 1 to 1000)
• Wide Power Supply Range (±2.3 V to ±18 V)
• Higher Performance than Three Op Amp IA Designs
• Available in 8-Lead SOIC Packaging
• Low Power
Features:
• Pin-to-pin compatible with industry standard AD620
Applications:
• Weigh Scales
• ECG and Medical Instrumentation
• Transducer Interface
• Data Acquisition Systems
• Industrial Process Controls
• Battery Powered and Portable Equipment
| Basic Function: | OpAmp (instrumentation) |
|---|---|
| IC Package: | PDIP-8 (THT) |
| Pin Count: | 8 |
| Pin Pitch [mm]: | 2,54 |
| Technology: | THT |
