Alpha - 20mm LED Slider Potentiometer B10k
| Quantity | Unit price |
|---|---|
| To 9 |
€4.10*
|
| To 24 |
€3.55*
|
| To 49 |
€3.32*
|
| To 99 |
€2.95*
|
| From 100 |
€2.75*
|
available, delivery time 2-5 days
Product number:
100950

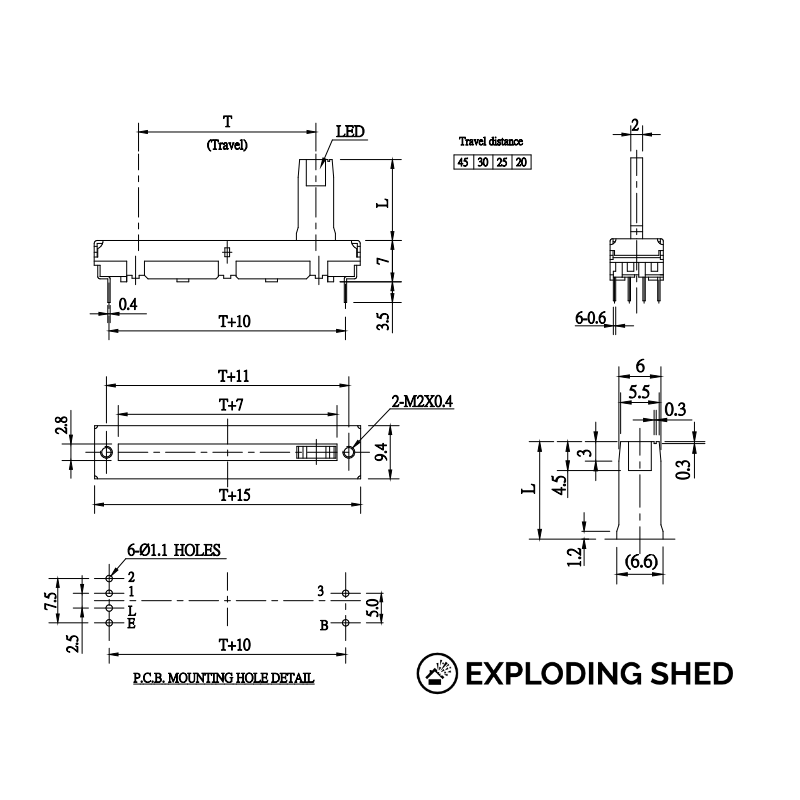

Product information "Alpha - 20mm LED Slider Potentiometer B10k"
Taiwan Alpha slider potentiometer RA2045F-20R-15LC-B10. Discounts available atomatically at larger numbers.
• 10 kΩ linear (B) taper
• No center dent
• Integrated red LED
• 20 mm travel distance
• Mounting (body) height 7 mm
• Total body length 35 mm
• Total body width 9,4 mm
• Lever height 15 mm
• Sliding life 15.000 cycles
• 10 kΩ linear (B) taper
• No center dent
• Integrated red LED
• 20 mm travel distance
• Mounting (body) height 7 mm
• Total body length 35 mm
• Total body width 9,4 mm
• Lever height 15 mm
• Sliding life 15.000 cycles
| Mounting / Direction: | PCB, Vertical |
|---|---|
| Number of Tapers: | 1 |
| Resistance [Ω]: | 10K |
| Shaft Length [mm]: | 15 |
| Shaft Type: | LED |
