Electrosmith - Daisy Patch Submodule
Product information "Electrosmith - Daisy Patch Submodule"

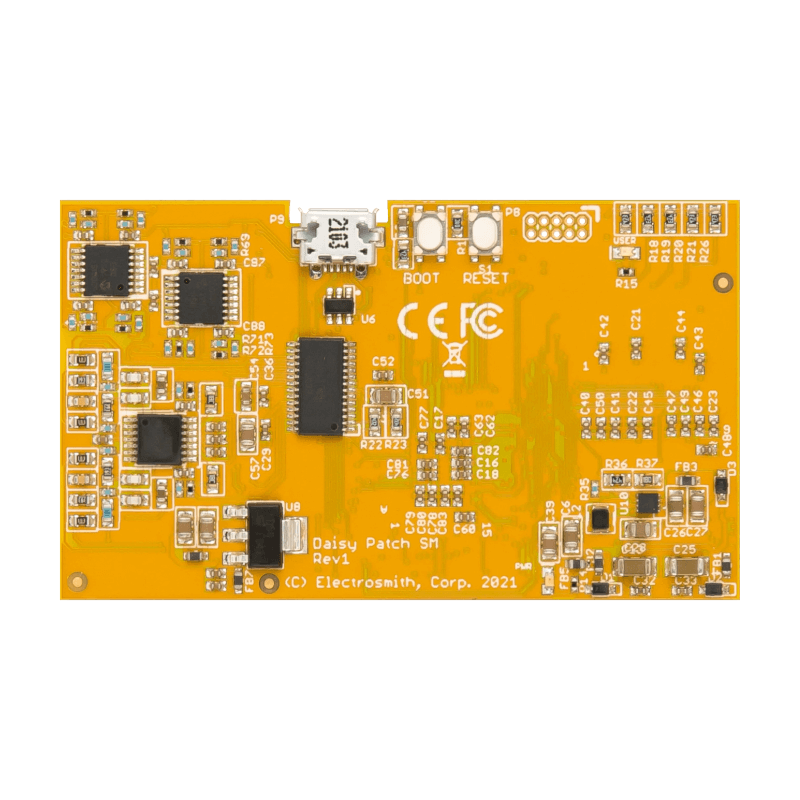

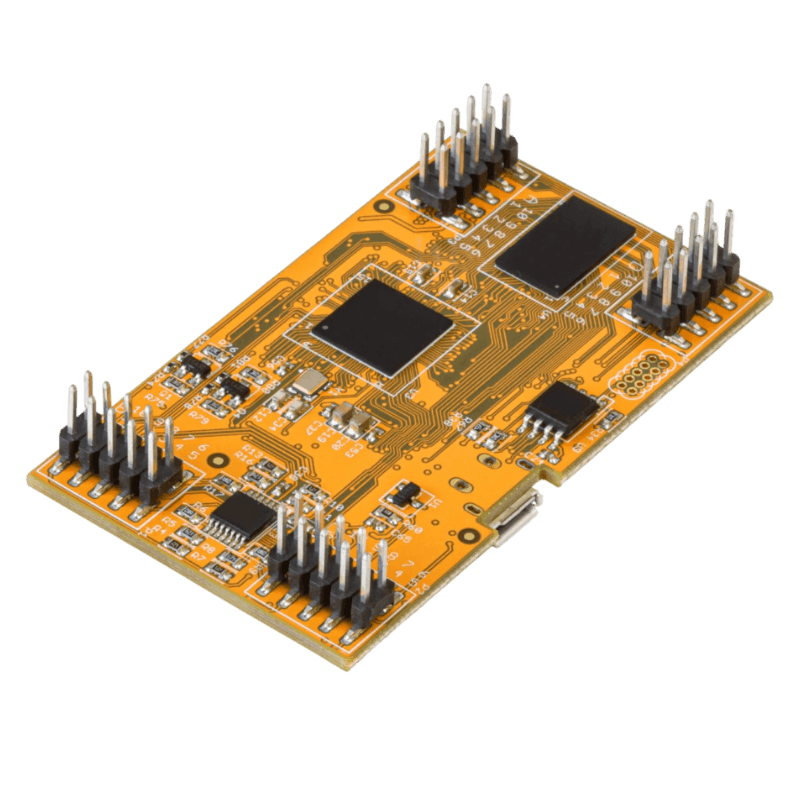

The Daisy Patch Submodule is a powerful embedded DSP platform for developing custom Eurorack modules. It combines a fast STM32H7 processor, high-fidelity stereo audio conversion and extensive memory with signal conditioning designed specifically for the Eurorack environment.
Developers only need to create a carrier board and user interface, while the Patch Submodule handles audio processing, CV, gates and digital connectivity. Its 480MHz processor and 64MB of RAM support advanced applications such as oscillators, samplers, granular processors, effects and long-form audio looping with buffers of up to ten minutes.
Firmware can be created using C++, Arduino, Pure Data, Max/MSP Gen~ and other supported environments. The open-source DaisySP library provides ready-made DSP building blocks for synthesis, filtering, dynamics and audio effects, while firmware can be uploaded over USB using the browser-based programmer.
Stereo audio I/O, twelve analog inputs, CV and gate connections, GPIO and multiple communication protocols make the Daisy Patch Submodule a flexible foundation for commercial products, prototypes and experimental Eurorack instruments. The hardware includes reverse-power protection and is FCC and CE tested for integration into finished designs.
Features
• STM32H7 processor running at 480MHz.
• 24-bit stereo audio at 96kHz.
• 64MB RAM for audio buffers of up to ten minutes.
• 12 analog inputs for bipolar CV signals or potentiometers.
• Two 12-bit CV outputs.
• Two gate inputs and two gate outputs.
• Twelve general-purpose GPIO connections.
• USB firmware loading via an open-source web programmer.
• Supports C++, Arduino, Pure Data and Max/MSP Gen~.
• SDMMC, SPI, UART, I2C and USB connectivity.
• Reverse-power protection included.
• FCC and CE tested and compliant.
The mini JTAG header is not included.
| Header: | With Header |
|---|---|
| Pin Count: | 40 |
| Pin Pitch [mm]: | 2,54 |
| Technology: | THT |
Electrosmith believes that designing audio devices is an art form, not just a science.
That belief drives the creation of a seamless hardware and software platform that lets audio designers, musicians, and developers focus on making the world sound better – instead of reinventing the wheel.
Since its launch in 2019, the Electrosmith Daisy platform has powered million-dollar Kickstarter audio products, been taught in Ivy League university courses and brought cutting-edge sound to interactive art installations around the world.
