Feedback Modules - JP8 VCF
Product information "Feedback Modules - JP8 VCF"

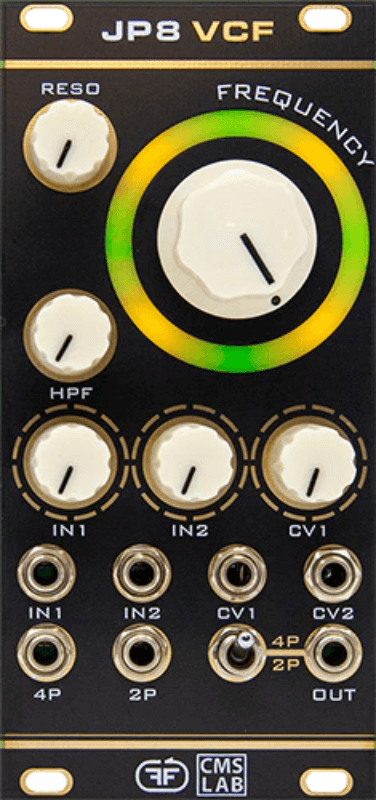

The JP8 VCF module is a versatile and authentic filter offering 2-pole (12 dB/oct) and 4-pole (24 dB/oct) low-pass modes, along with a high-pass filter. Built with AS3109D and AS662A ICs, WIMA polypropylene capacitors, and 2SK30ATM-GR J-FET transistors, it ensures high-quality performance.
Key features include two mixed signal inputs, independent outputs for 2-pole and 4-pole modes, and an alternate output with selectable modes via a switch. CV inputs operate at 0-5Vpp, with attenuation available for 10Vpp signals through the CV1 pot.
This module is a collaboration between Feedback Modules and CMS-LAB.
Features:
• AS3109D and AS662A, ALFA RPAR modern identical to the original IC clones
• High Pass Filter made with AS662A
• WIMA polypropylene capacitors
• Selected 2SK30ATM-GR N-channel J-Fet transistor
• Two mixed signal inputs
• Independent outputs for 2-pole, 4-pole and an alternate output with selection of modes from a switch
• The CVs are 0-5Vpp, 10Vpp CVs can be attenuated with the CV1 pot.
DIY-Kit-Type:
THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
Key features include two mixed signal inputs, independent outputs for 2-pole and 4-pole modes, and an alternate output with selectable modes via a switch. CV inputs operate at 0-5Vpp, with attenuation available for 10Vpp signals through the CV1 pot.
This module is a collaboration between Feedback Modules and CMS-LAB.
Features:
• AS3109D and AS662A, ALFA RPAR modern identical to the original IC clones
• High Pass Filter made with AS662A
• WIMA polypropylene capacitors
• Selected 2SK30ATM-GR N-channel J-Fet transistor
• Two mixed signal inputs
• Independent outputs for 2-pole, 4-pole and an alternate output with selection of modes from a switch
• The CVs are 0-5Vpp, 10Vpp CVs can be attenuated with the CV1 pot.
DIY-Kit-Type:
THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
| Current draw +12 V [mA]: | 50 |
|---|---|
| Current draw -12 V [mA]: | 30 |
| DIY Level: | Medium/Advanced |
| Depth [mm]: | 35 |
| Width [HP]: | 12 |
| Format: | 3U |
| Panel / Color: | Black FR4 |
