Jolin - Singoli
Product information "Jolin - Singoli"

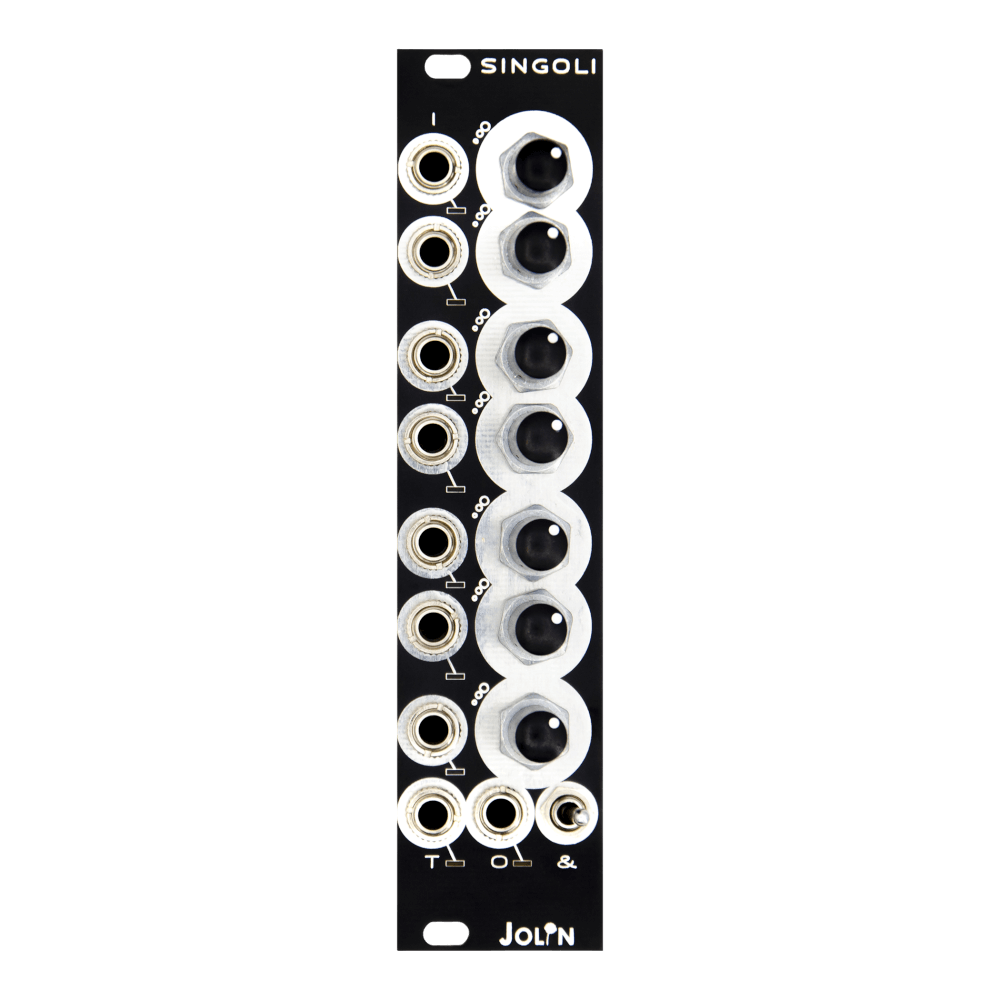

SINGOLI is a 7 channel DC coupled active combiner with an analogue transient detector output.
All the inputs I are equipped with LED meters and a dedicated attenuating potentiometer.
O will give you the combined mixed output.
T is an additional transient detector out that will fire only when a certain threshold is detected from the sum of all the inputs.
The toggle switch activates or deactivate the internal connection to Tutto&Sempre when the two modules are paired together thanks to the included JST cable.
Features:
• DC coupled mixer with 7 inputs and individual attenuators.
• Intensity sensitive LED meters on all the inputs.
• Analogue transient detector output.
• Toggle switch to activate / deactivate its normalization to Tutto&Sempre.
• “Whatever” power connector a.k.a. don’t mind the polarity.
DIY-Kit-Type:
SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
All the inputs I are equipped with LED meters and a dedicated attenuating potentiometer.
O will give you the combined mixed output.
T is an additional transient detector out that will fire only when a certain threshold is detected from the sum of all the inputs.
The toggle switch activates or deactivate the internal connection to Tutto&Sempre when the two modules are paired together thanks to the included JST cable.
Features:
• DC coupled mixer with 7 inputs and individual attenuators.
• Intensity sensitive LED meters on all the inputs.
• Analogue transient detector output.
• Toggle switch to activate / deactivate its normalization to Tutto&Sempre.
• “Whatever” power connector a.k.a. don’t mind the polarity.
DIY-Kit-Type:
SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
| Current draw +12 V [mA]: | 15 |
|---|---|
| Current draw -12 V [mA]: | 10 |
| DIY Level: | Easy |
| Depth [mm]: | 25 |
| Width [HP]: | 6 |
| Format: | 3U |
| Panel / Color: | Black FR4 |
Manufacturer "Jolin"
Jolin is an audio electronics lab specialized in eurorack modules, sound sculptures and DIY workshops.
The project was founded in Milan, Italy in the summer of 2018 by Federico Intrisano, hardware designer, and Pedro Ferragut, software engineer. The aim is promoting electronic music made with analog and digital synthesizers.
Although our main activity is research, we also build hand-crafted instruments and DIY kits with educational aim.
