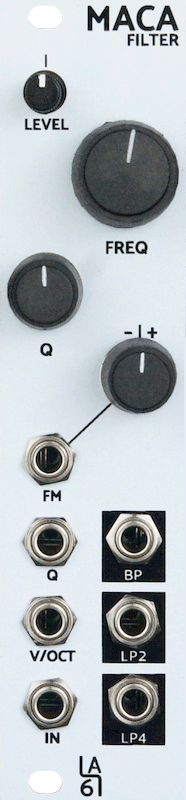

LA67 - MACA Filter
Product information "LA67 - MACA Filter"
A 4-pole multimode filter based on the SSI2140 integrated circuit. Essentially an updated version of the classic SSM2040, the new SSI2140 adds better temperature compensation and a VCA that helps eliminate low frequency damping at high resonance settings. Besides the obligatory 4-pole low pass, MACA adds both 2-pole low pass and 4-pole band pass outputs. There is also an input level control that allows you to easily overdrive the filter core.
Features:
• 4-pole LP, 2-pole LP, & 4-pole BP outputs
• Input level control
• 16hz-16khz range
• "Q" CV input
• Inverting attenuator on "FM" input
• "V/oct" CV input
• Sine wave oscillator at high "Q" settings
• Reverse power polarity protection
DIY-Kit-Type:
THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
Features:
• 4-pole LP, 2-pole LP, & 4-pole BP outputs
• Input level control
• 16hz-16khz range
• "Q" CV input
• Inverting attenuator on "FM" input
• "V/oct" CV input
• Sine wave oscillator at high "Q" settings
• Reverse power polarity protection
DIY-Kit-Type:
THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
| Current draw +12 V [mA]: | 25 |
|---|---|
| Current draw -12 V [mA]: | 25 |
| DIY Level: | Medium |
| Depth [mm]: | 20 |
| Width [HP]: | 6 |
| Format: | 3U |
| Panel / Color: | Silver Alu |
