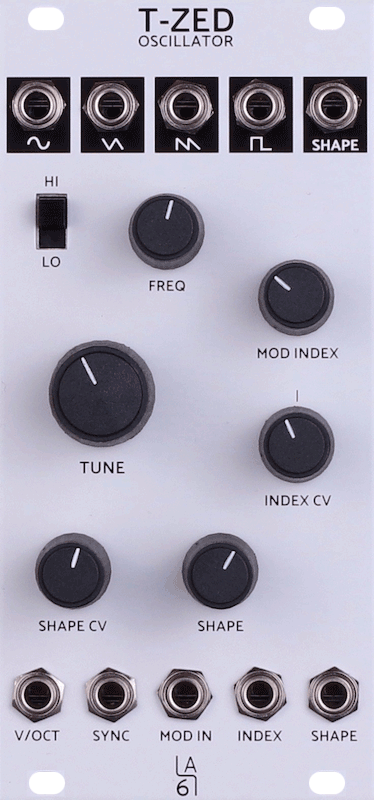

LA67 - T-ZED Oscillator
Product information "LA67 - T-ZED Oscillator"
An analogue oscillator with through-zero phase modulation. The core of the T-ZED is the SSI2130 integrated circuit. Voltage controlled wave shape and phase modulation index allow for automated sonic versatility, and 2 separate frequency ranges mean the T-ZED can be used as an audio or CV source.
Features:
• Simultaneous SINE, TRIANGLE, SAW, SQUARE, and variable SHAPE outputs
• Phase MOD input with bipolar INDEX circuit
• V/OCT input tracks 10 octaves
• FREQ spans 10 octaves, TUNE spans 1 octave
• Hard SYNC input
• SHAPE output (Sine to Triangle to Saw) with CV input and attenuator
• Frequency range HI: 10hz-25khz
• Frequency range LO: 0,1hz-200hz
• Reverse power polarity protection
DIY-Kit-Type:
THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
Features:
• Simultaneous SINE, TRIANGLE, SAW, SQUARE, and variable SHAPE outputs
• Phase MOD input with bipolar INDEX circuit
• V/OCT input tracks 10 octaves
• FREQ spans 10 octaves, TUNE spans 1 octave
• Hard SYNC input
• SHAPE output (Sine to Triangle to Saw) with CV input and attenuator
• Frequency range HI: 10hz-25khz
• Frequency range LO: 0,1hz-200hz
• Reverse power polarity protection
DIY-Kit-Type:
THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
| Current draw +12 V [mA]: | 55 |
|---|---|
| Current draw -12 V [mA]: | 45 |
| DIY Level: | Medium |
| Depth [mm]: | 25 |
| Width [HP]: | 12 |
| Format: | 3U |
| Panel / Color: | Silver Alu |
