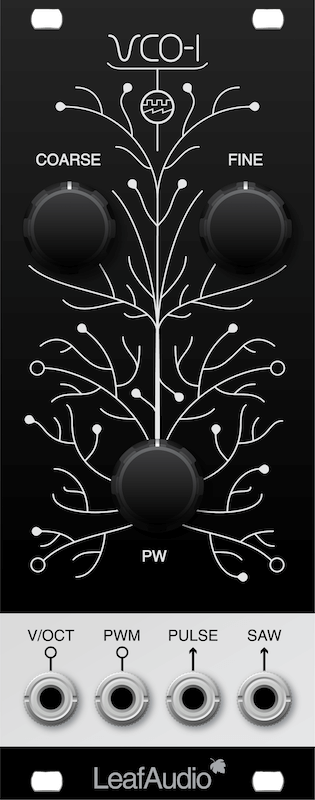

Product information "LeafAudio - VCO-1"
VCO-1 (v1.4) is a purely analogue VCO for the modular Eurorack system. It can complemented by EXP-1 Expander module to add many functions like Sync, lin. FM, Wave Morphing, LFO etc. VCO-1 is temperature stable and provides a clean 1V/oct tracking over minimum 4 octaves. VCO-1 and EXP-1 are a powerful combination of modules with lots of instant fun! High quality parts, switches, pots and knobs, good feeling and big enough for comfortable everyday work, no fiddly controls. Check out the module on Modular Grid. https://www.modulargrid.net/e/leafaudio-vco-1
Check buttons below for a build video about VCO-1 and EXP-1 by Synth DIY guy. Very nice to watch before you build it, specially for beginners. And make sure to check the Soundcloud audio demos - they're good!
Controls:
• Tuning (Coarse) ca. 20Hz - 20kHz
• Tuning (Fine) ca. 8 half tones
• Pulsewidthmodulation (PW)
Connectors:
• 1V/oct input for CV-controlled pitch
• PWM input for CV-controlled pulsewidth
• Pulse audio output
• Saw audio output
After finishing it, the 1V/oct tracking has to be adjusted, what might need some experience.
DIY-Kit-Type:
THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
Check buttons below for a build video about VCO-1 and EXP-1 by Synth DIY guy. Very nice to watch before you build it, specially for beginners. And make sure to check the Soundcloud audio demos - they're good!
Controls:
• Tuning (Coarse) ca. 20Hz - 20kHz
• Tuning (Fine) ca. 8 half tones
• Pulsewidthmodulation (PW)
Connectors:
• 1V/oct input for CV-controlled pitch
• PWM input for CV-controlled pulsewidth
• Pulse audio output
• Saw audio output
After finishing it, the 1V/oct tracking has to be adjusted, what might need some experience.
DIY-Kit-Type:
THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
Current draw +12 V [mA]: | 18 |
---|---|
Current draw -12 V [mA]: | 17 |
DIY Level: | Medium/Advanced |
Depth [mm]: | 35 |
Width [HP]: | 10 |
Format: | 3U |
Panel / Color: | Black Alu |
Manufacturer "LeafAudio"
LeafAudio is the brand of Manuel Richter. He is a trained drummer & audio engineer, studio- and live-musician, was interested in electronic and experimental sounds since his childhood. He made releases and lots of live appearances as Xabec. He toured with Haujobb and others, was producer & songwriter for Anne Clark. LeafAudio started as Manuel's studio in 2008, he made lots of mixings and masterings but quickly ended up doing one of the most well known DIY workshop series in Germany by the mid 2010s. Meanwhile LeafAudio is most well known for their Microphonic Soundboxes and other sound design instruments which became super popular worldwide. Most of the production is still made by hand in Leipzig, Germany.
