Modulove – Multivert
Product number:
100923
Product information "Modulove – Multivert"

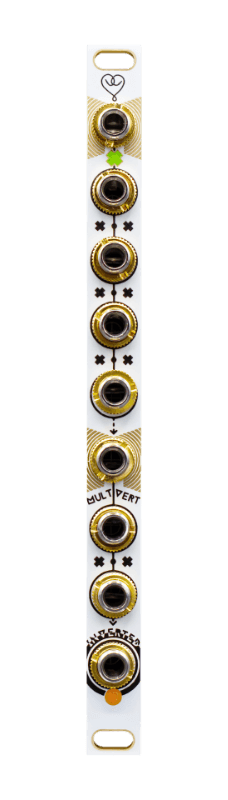

MULTVERT is a high-quality buffered multiple designed to provide extended functionality in a sleek, ultra-compact form factor. Developed with passion and precision at Modulove, this module enhances the standard buffered multiple concept, offering an innovative approach to signal distribution. MULTVERT combines reliability with creative potential, proving that even simple tools can be improved for a more inspiring experience.
Features:
• 40mA +12V Rail 40mA -12V
• 2 Buffered input Channels
• 2 Buffered Bipolar LEDs (green = positive, red = negative)
• Reverse Polarity Protection
• 1 Channel with 4 buffered copies
• 1 Channel with 2 buffered copies and 1 inverted copy
• Normalisation of channel 1 to channel 2
DIY-Kit-Type:
SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
Features:
• 40mA +12V Rail 40mA -12V
• 2 Buffered input Channels
• 2 Buffered Bipolar LEDs (green = positive, red = negative)
• Reverse Polarity Protection
• 1 Channel with 4 buffered copies
• 1 Channel with 2 buffered copies and 1 inverted copy
• Normalisation of channel 1 to channel 2
DIY-Kit-Type:
SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
| Current draw +12 V [mA]: | 40 |
|---|---|
| Current draw -12 V [mA]: | 40 |
| DIY Level: | Easy |
| Depth [mm]: | 25 |
| Width [HP]: | 2 |
| Format: | 3U |
| Panel / Color: | Black FR4, White FR4 |
