Sebsongs - ST Mixer XL
Product number:
100507
Product information "Sebsongs - ST Mixer XL"

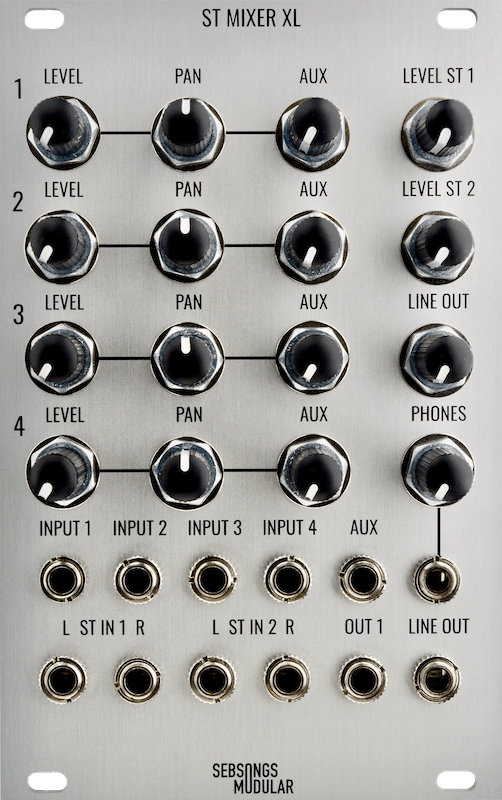

ST MIXER XL is effectively an eight channel stereo mixer with a really good sounding headphone amplifier built in. It is designed to be the final output module of a larger system that you want to use with headphones and simultaneous recording via 1/8 inch stereo jack cable to a portable recorder.
The module consists of four mono channels with level, panning and aux send control, and two stereo channel with level control and separate inputs for left and right. The stereo PHONES and LINE OUT outputs also have level control. The AUX output is a mix of the aux sends from the four mono channels. The OUT 1 is a buffered direct out from channel one, to feed to a looper for instance.
ST MIXER XL is perfect for a larger system with up to four mono synth voices and a stereo effect. The headphone output can drive most headphones quite well and the line output is perfect for recording with a portable recorder or an audio interface.
DIY-Kit-Type:
SMD-Kit-2. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. It includes SMD and through-hole parts! For build guide, more info, videos etc. please check the buttons below.
The module consists of four mono channels with level, panning and aux send control, and two stereo channel with level control and separate inputs for left and right. The stereo PHONES and LINE OUT outputs also have level control. The AUX output is a mix of the aux sends from the four mono channels. The OUT 1 is a buffered direct out from channel one, to feed to a looper for instance.
ST MIXER XL is perfect for a larger system with up to four mono synth voices and a stereo effect. The headphone output can drive most headphones quite well and the line output is perfect for recording with a portable recorder or an audio interface.
DIY-Kit-Type:
SMD-Kit-2. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. It includes SMD and through-hole parts! For build guide, more info, videos etc. please check the buttons below.
| Current draw +12 V [mA]: | 40 |
|---|---|
| Current draw -12 V [mA]: | 40 |
| DIY Level: | Advanced |
| Depth [mm]: | 26 |
| Width [HP]: | 16 |
| Format: | 3U |
| Panel / Color: | Silver Alu |
Manufacturer "Sebsongs Modular"
Hi! I’m Sebastian and I’m the person behind Sebsongs Modular. I’ve been building and designing modular kits, guitar pedals and other electronics for 20 years. In the fall of 2021 I made my eurorack module designs available as DIY kits. We now have four modules available, with more to follow in the future! If you have questions or just want to say hello, contact me via the contact page or follow Sebsongs Modular on Instagram!
