Sinusoda - The Can (Unsassembled, Black)
Product information "Sinusoda - The Can (Unsassembled, Black)"

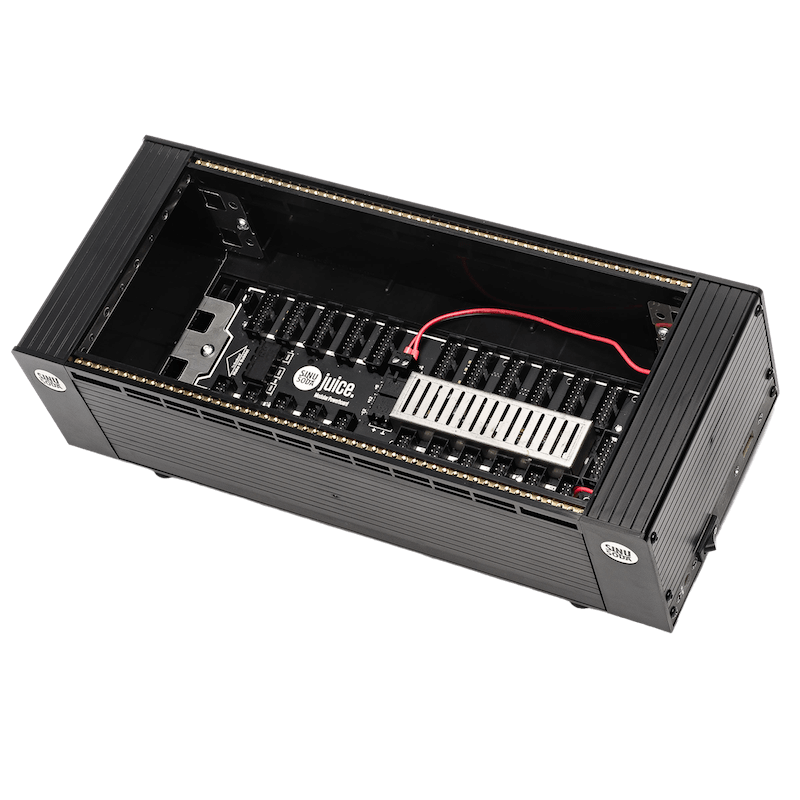

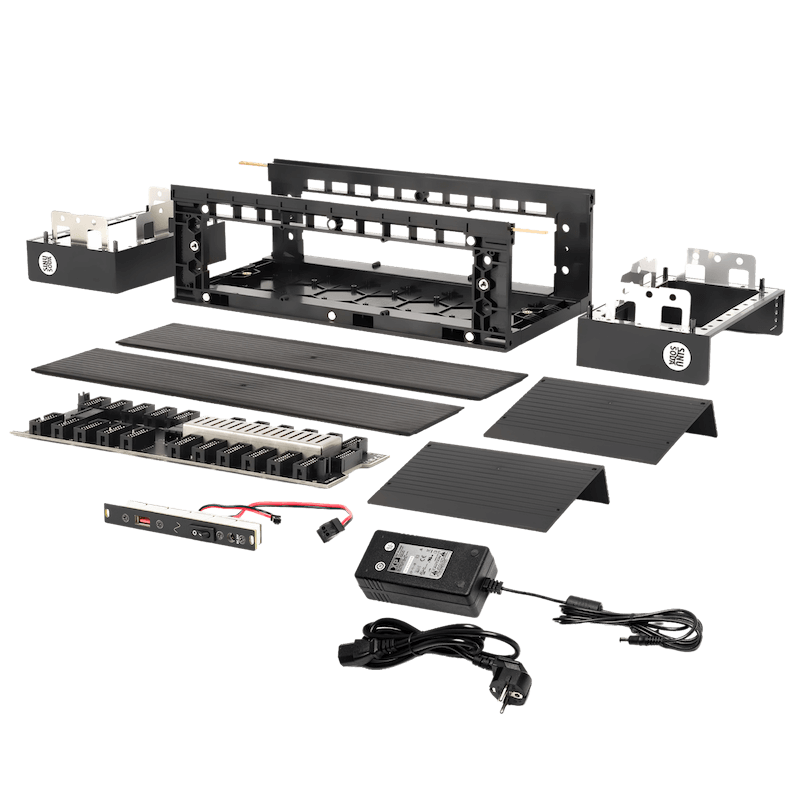

The Can is Sinusoda’s 3U 52 HP case that comes with Juice Powerboard, Straw power inlet and 60W power brick. Comes in parts and ready for self-assembly. Additional vertical and horizontal connectors of the casing system included. It’s a starting point for a truly modular case for modular synths.
You can connect any amount of Sinusoda’s Empty Cans to add more HP to this case.
Juice Powerboard is Sinusoda’s Ultra Low Noise power supply solution offering up to +12v: 3A / -12v: 1.5A / +5v: 2A of clean power for your synths. Several Juices can be connected together in series for more power.
Straw power inlet has a USB charging port for your mobile devices, midi devices or lamps.
Side blinds can be cut into blank panels revealing more space - additional 4 hp from the top on both sides, and up to 14 hp from the sideway mount.
For more information on the Sinusoda modular casing system visit the Sinusoda Website.
Features:
Dimensions: 325 x 130 x 85 mm
Case depth: 70 mm without powerboard, and 56 mm with powerboard
Weight: 0,9 kg (power brick included)
| Color / Material: | Black Plastic |
|---|---|
| Current out +5 V [mA]: | 2000 |
| Current out +12 V [mA]: | 3000 |
| Current out -12 V [mA]: | 1500 |
| DIY Level: | Easy |
| Depth [mm]: | 56 |
| Max power input [W]: | 96 |
| Number of Power-Pinheader: | 23 |
| Power Input Type (pri.): | 19 - 25 Vdc / Barrel (5,5/2,5) |
| Width [HP]: | 52 |
| Format: | 3U |
Login
Manufacturer / Hersteller:
JLF Sp. z o.o.
ul. Bieniewicka 22 m.17
01-632 Warszawa
Poland
shop@sinusoda.com
Product Safety Information
Please read this safety guide before installation or use.
Intended use
• The DIY case is intended for end-customer assembly as a housing for electronic or mechanical devices.
• If a closed plug-in or desktop power supply unit is included or later used, it is intended exclusively for supplying power to compatible devices.
• Both products must only be used as described in these instructions. Any other use may result in damage or safety risks such as fire, electric shock or injury.
Installation and use
DIY case
• Assemble only with the supplied parts and screws, following the instructions. Use suitable tools and avoid overtightening.
• Wear protective gloves to prevent injury from sharp edges. Work in a well-lit, ventilated environment.
• Ensure all parts are firmly fixed to avoid instability.
• Only install devices that fit properly within the housing and are suitable for operation in an enclosure with the given dimensions and ventilation.
Power supply units (if included or used)
• Insert the unit fully into the socket and connect only to devices with matching voltage, current and polarity.
• Use indoors only. Avoid damp, wet or dusty environments.
• Do not cover ventilation slots. Keep away from heat sources, direct sunlight and flammable materials.
• Do not pull the plug by the cable. Avoid kinking, pinching or damaging the cable. Replace the unit if the plug or cable is damaged.
• Use only original or manufacturer-approved power supply units.
Warnings
• Sharp edges on the DIY case may cause cuts. Wearing protective gloves during assembly is mandatory.
• Small parts such as screws pose a choking hazard for children.
• Improper assembly of the case may cause instability and injury.
• If electrical devices or a power supply unit are used, risk of overheating, sparking or fire exists.
• Power supply units operate with mains voltage. Never open the housing; risk of electric shock.
• Do not use a power supply unit if it is excessively warm, noisy or visibly damaged.
• Prevent contacts of the power supply unit from touching conductive objects to avoid short circuits.
• Keep both products out of reach of children. Improper handling may cause injury or damage.
Storage and cleaning
• Store both products in a dry, cool place, avoiding strong temperature fluctuations.
• Clean the DIY case with a dry cloth only. Do not use aggressive cleaning agents.
• Disconnect the power supply unit before cleaning. Wipe with a dry or slightly damp cloth only. Never use water or detergents.
