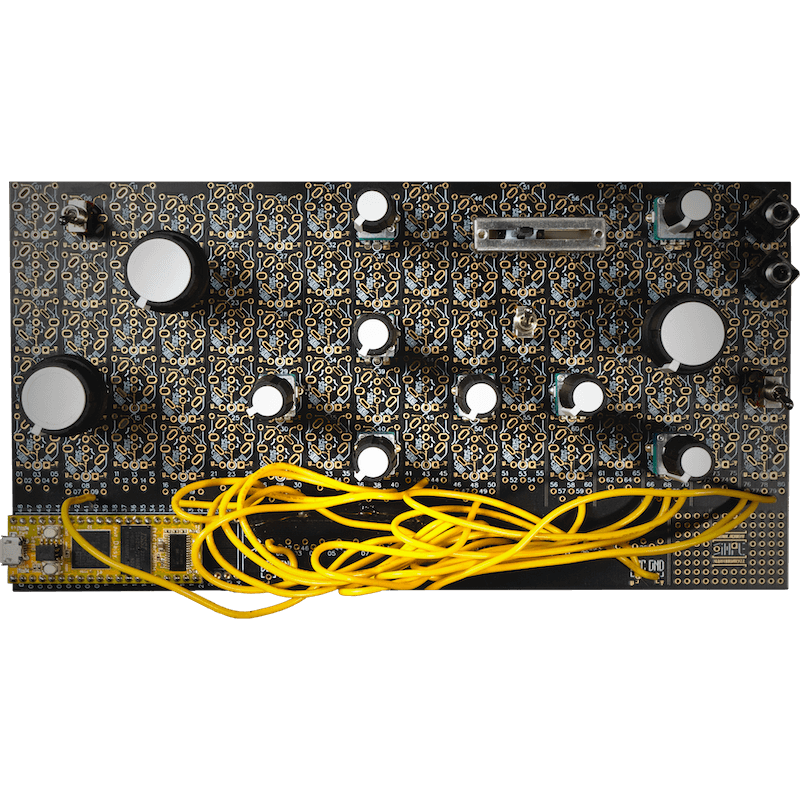

Synthux Academy - Simple Designer
Product information "Synthux Academy - Simple Designer"
Features:
• Programmable. All Simple kits come with the Daisy Seed microcontroller and access to our introduction to synth programming video course.
• Open source instrument on Github.
• Each kit comes with a video course teaching sound fundamentals: https://learn.synthux.academy/
• Powerful music instrument for live performances.
DIY-Kit-Type:
SMD-Kit-2. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. It includes SMD and through-hole parts! For build guide, more info, videos etc. please check the buttons below.
| Current draw +5 V [mA]: | 100 |
|---|---|
| DIY Level: | Easy |
| Depth [mm]: | 12 |
| Width [HP]: | 42 |
| Format: | 3U |
| Panel / Color: | Black FR4 |
Synthux Academy is an educational nonprofit organization based in Rotterdam, The Netherlands. The Academy teaches sound design and how to program your musical instrument. Synthux DIY kits were created following six years of research at Design Academies around the world. The DIY kits were tested by thousands of students and teachers around the world who made their own unique twist to the instrument. Synthux Academy offers three DIY kits: Simple Fix Kit, Simple Touch Kit, and Simple Designer Kit. No prior technical knowledge is required to enjoy these powerful programmable musical instruments. The kits were designed to serve as your first synth DIY kit as well as a powerful tool for a more advanced creator. Each kit comes with a free video course teaching sound fundamentals. https://learn.synthux.academy/ For videos, live streams, and exclusive online courses, visit Synthux Academy on YouTube. https://www.youtube.com/c/synthuxacademy
Login
Manufacturer / Hersteller:
Stichting PTM Academy
Delftseplein 36
3013 AA Rotterdam
The Netherlands
hello@synthux.academy
Product Safety Information
Please read this safety guide before installation or use.
Important Notice & Intended Use
• This kit is intended for adult users experienced in electronics and modular synthesis.
• Assembly, including soldering, is required.
• Proper testing and installation are essential to ensure safe and functional operation.
• The completed product is intended as a desktop / standalone unit and is powered by an external DC power supply or battery.
General Warnings
Electrical Hazards:
• Make sure the power supply matches the voltage and current ratings specified for the device (see the product manual). Using the wrong voltage can damage the module and create a safety hazard.
• Wrong polarity can damage your device, make sure the unit is connected with correct polarity.
Heat Generation:
• The device or power supply may generate heat during operation. Do not cover one of them.
Sharp Edges:
• The device’s faceplate and components may have sharp edges. Handle with care to prevent cuts or scratches.
Small Parts:
• Contains small parts that could cause a choking hazard. Keep away from children and pets.
Compatibility:
• This module is intended for use only with devices operating at Eurorack or line level. Connecting it to incompatible systems may cause damage or malfunction.
Assembly Requirements
• Soldering skills are required to complete the unit.
• Ensure a clean, well-lit and ventilated workspace free of flammable materials during assembly.
• Use appropriate tools and safety equipment, such as eye protection.
Testing
• Test the module thoroughly for shorts or incorrect assembly before powering it up. When the unit has malfunctions due to incorrect assembly, the unit or power supply might be damaged.
• Use a multimeter or other appropriate tools to confirm proper functionality.
Installation and Use
• Use only the included or manufacturer-recommended power cable and/or power supply.
• Follow the module's user guide for instructions on operation. Do not exceed the input/output limits specified.
Responsibility
Users are solely responsible for proper assembly and testing. Contact manufacturer support for assistance if needed.
Environmental Safety
• Dispose of the module, its components, and packaging in accordance with local electronic waste regulations.
Liability Disclaimer
• The manufacturer or distributor is not responsible for any injury, damage, or malfunction resulting from improper installation, use, or modification of this product.
