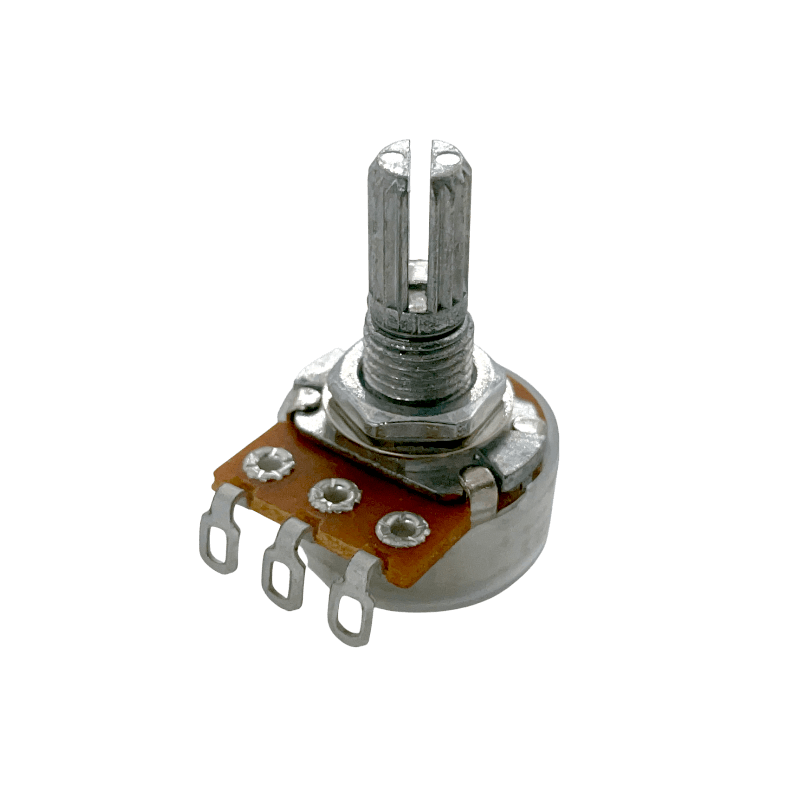

TAYDA - Potentiometer with Solder Lug B50k
Product number:
100893
Product information "TAYDA - Potentiometer with Solder Lug B50k"
Tayda Potentiometer with 6mm T18 shaft. Shaft length incl. threading is 17mm, without threading it’s 10 mm. M7x0,75 threading, needs a 7 mm hole. Rotation angle 300°.
| Mounting / Direction: | Solder Lug |
|---|---|
| Number of Tapers: | 1 |
| Rotation Angle [Deg]: | 300 |
| Shaft Length [mm]: | 12,5 |
| Shaft Type: | 6mm T18 shaft |
| Threading Length [mm]: | 6 |
| Threading [Type/mm]: | M7 x 0,75 |
