Transient Modules - Midi2TRS
Product information "Transient Modules - Midi2TRS"
• it converts the Midi-DIN input to 3,5mm TRS like it’s used now on many synths and controllers nowdays
• it switches the polarity on the TRS side and by that flips MIDI TRS-A standard (E.g. Korg, RK006) to TRS-B (for e.g. Arturia and older Novation products) and vice versa. You can use this together with any length TRS audio cable and have TRSA and B work together in an elegant way.
There is a good explanation about MIDI via TRS at 'other links'.
It's so dead-easy that no build guide is neccessary, but if you have questions please email Transient Modules!
DIY-Kit-Type:

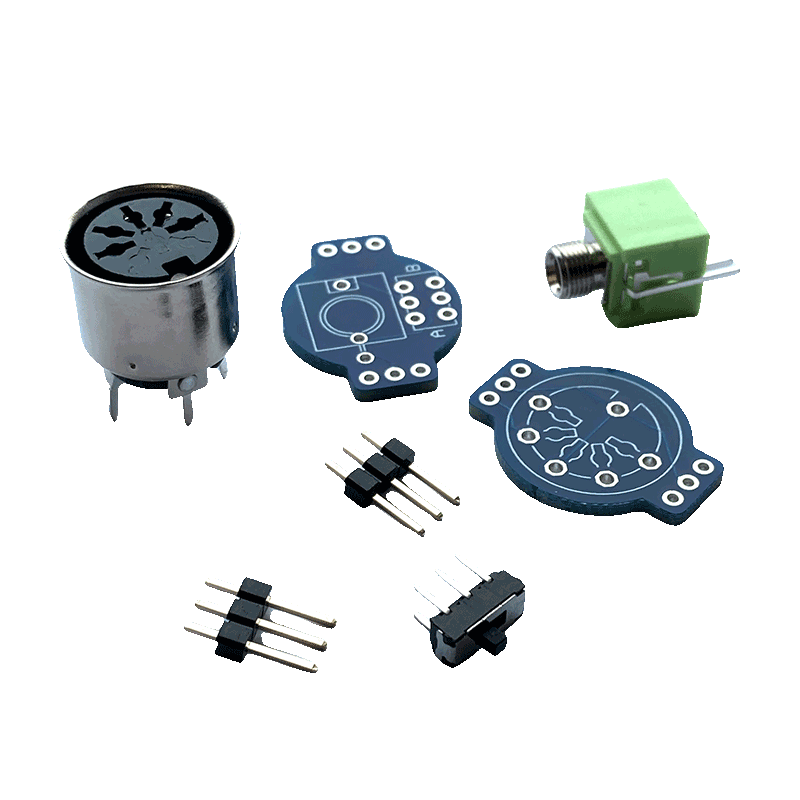

THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
| DIY Level: | Easy |
|---|
