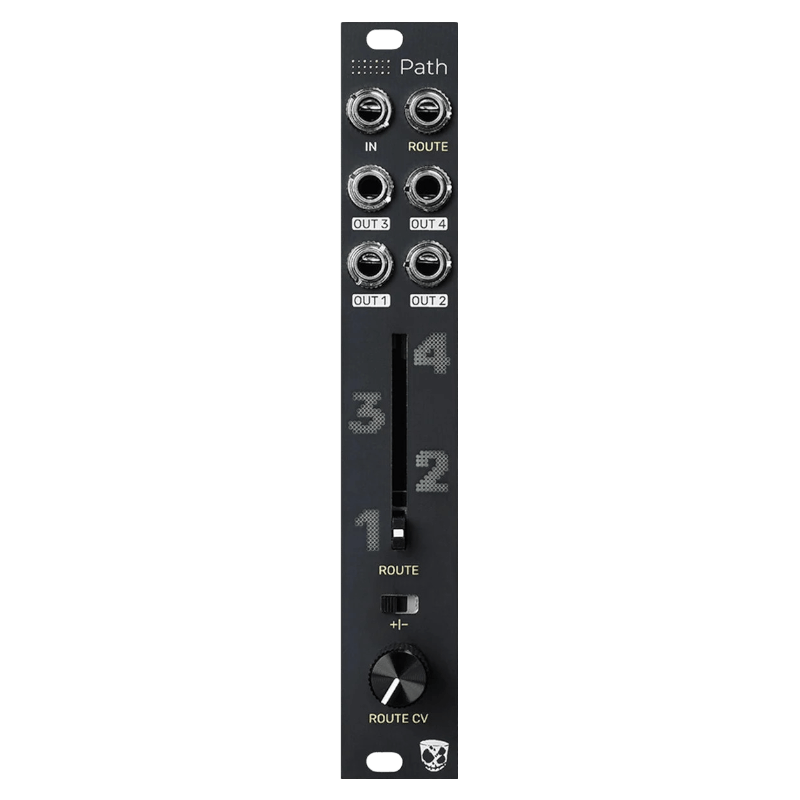

Vostok Instruments / DivKid- Path
Product number:
100939
Product information "Vostok Instruments / DivKid- Path"
Path is a compact 4-channel interpolating router, developed with Ben Wilson (DivKid), and inspired by our previous module, Trace. While Trace blended signals, Path flips the concept—routing one input to four outputs with smooth, slope-based transitions.
Built around the same DC-coupled interpolating core as Trace, Path handles audio and CV signals effortlessly. Its normalized fixed voltage input also transforms it into a powerful modulation source—no patching required.
Designed for flexibility and performance, Path brings fluid, organic movement and creative control to any modular setup in a streamlined footprint.
Features:
• Four channels
• DC-Coupled outputs for use with both audio and CV signals.
• Custom fading slope designed to improve the response on middle positions.
• CV-controlled routing with onboard attenuation and inversion of the modulation signal.
• Fixed voltage normalled at the input.
DIY-Kit-Type:
SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
Built around the same DC-coupled interpolating core as Trace, Path handles audio and CV signals effortlessly. Its normalized fixed voltage input also transforms it into a powerful modulation source—no patching required.
Designed for flexibility and performance, Path brings fluid, organic movement and creative control to any modular setup in a streamlined footprint.
Features:
• Four channels
• DC-Coupled outputs for use with both audio and CV signals.
• Custom fading slope designed to improve the response on middle positions.
• CV-controlled routing with onboard attenuation and inversion of the modulation signal.
• Fixed voltage normalled at the input.
DIY-Kit-Type:
SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
| Current draw +12 V [mA]: | 70 |
|---|---|
| Current draw -12 V [mA]: | 70 |
| DIY Level: | Medium |
| Depth [mm]: | 32 |
| Width [HP]: | 4 |
| Format: | 3U |
| Panel / Color: | Black FR4 |
