Zlob Modular - Dual VCO
Product number:
100162
Product information "Zlob Modular - Dual VCO"

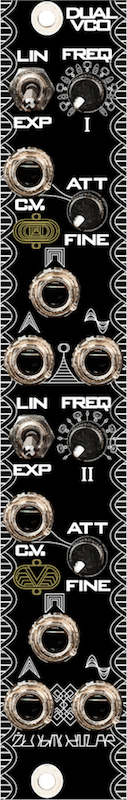

The Dual VCO is a 4 HP Dual Voltage Controlled Analog Oscillator Eurorack Module.
Each VCO has square, triangle, and sine wave out, coarse and fine tuning controls, a control voltage input, and a switch for selecting exponential or linear cv in. When a control voltage is inserted, the fine tune control becomes an attenuator for the incoming voltage. In exponential mode, when the attenuator is fully clockwise, the VCO will track around 5 volts per octave.
The dual vco currently ships with the black/white pcb panel.
DIY-Kit-Type:
SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
Each VCO has square, triangle, and sine wave out, coarse and fine tuning controls, a control voltage input, and a switch for selecting exponential or linear cv in. When a control voltage is inserted, the fine tune control becomes an attenuator for the incoming voltage. In exponential mode, when the attenuator is fully clockwise, the VCO will track around 5 volts per octave.
The dual vco currently ships with the black/white pcb panel.
DIY-Kit-Type:
SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
| Current draw +12 V [mA]: | 20 |
|---|---|
| Current draw -12 V [mA]: | 38 |
| DIY Level: | Medium |
| Depth [mm]: | 45 |
| Width [HP]: | 4 |
| Format: | 3U |
| Panel / Color: | Black FR4 |
