Befaco - 7U Case + Backpack Bundle
€666.66*
sold out at the moment
Product information "Befaco - 7U Case + Backpack Bundle"
The Befaco 7U Case + Modular Backpack Bundle combines Befaco’s powerful DIY Eurorack case with a dedicated transport backpack, giving you a complete solution for building, powering, protecting and carrying your modular system.

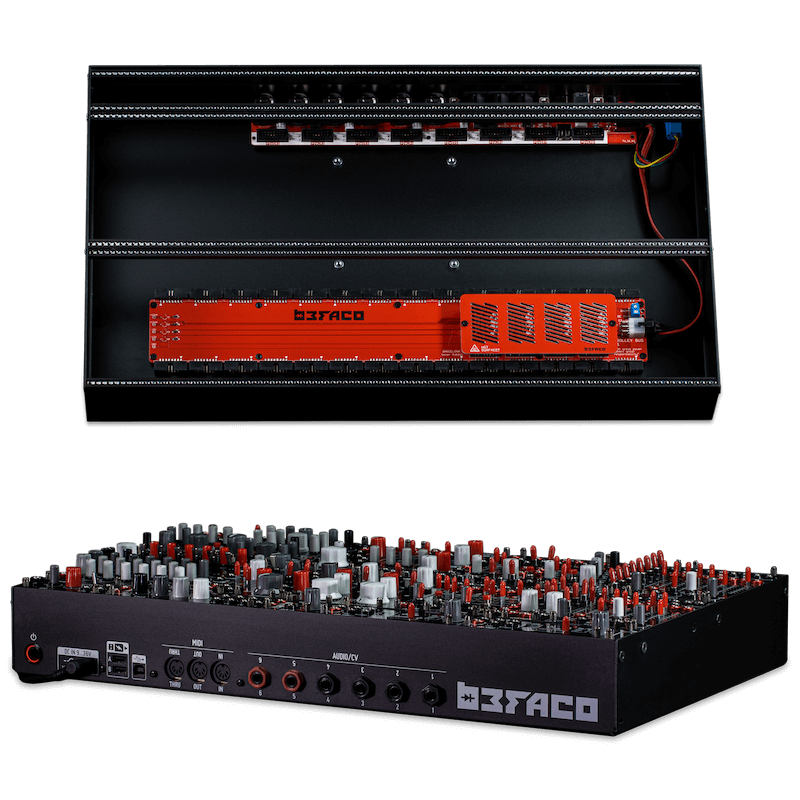

The Befaco 7U Case DIY Kit provides two 3U rows and one 1U row in Intellijel format, offering 104HP per row in a slim black anodised aluminum enclosure. Equipped with Befaco’s Trolley Bus power supply, the case delivers up to 5000mA on +12V, 2500mA on −12V and 4000mA on 5V, making it suitable for demanding Eurorack setups. The rear panel adds extensive connectivity, including balanced or unbalanced 6.3mm jack I/O, MIDI DIN In/Out/Thru, USB Device Type B and Apple-compatible USB-A charging ports. A clear PET-G cover is included to keep modules protected, even while patched.

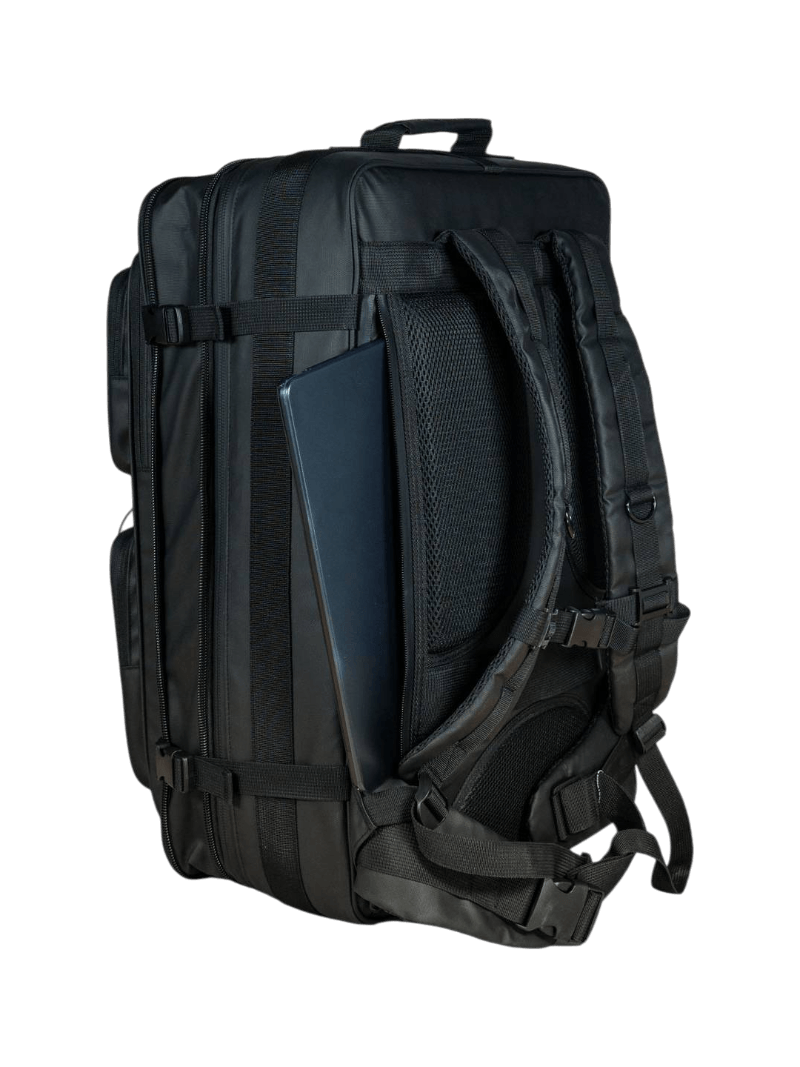

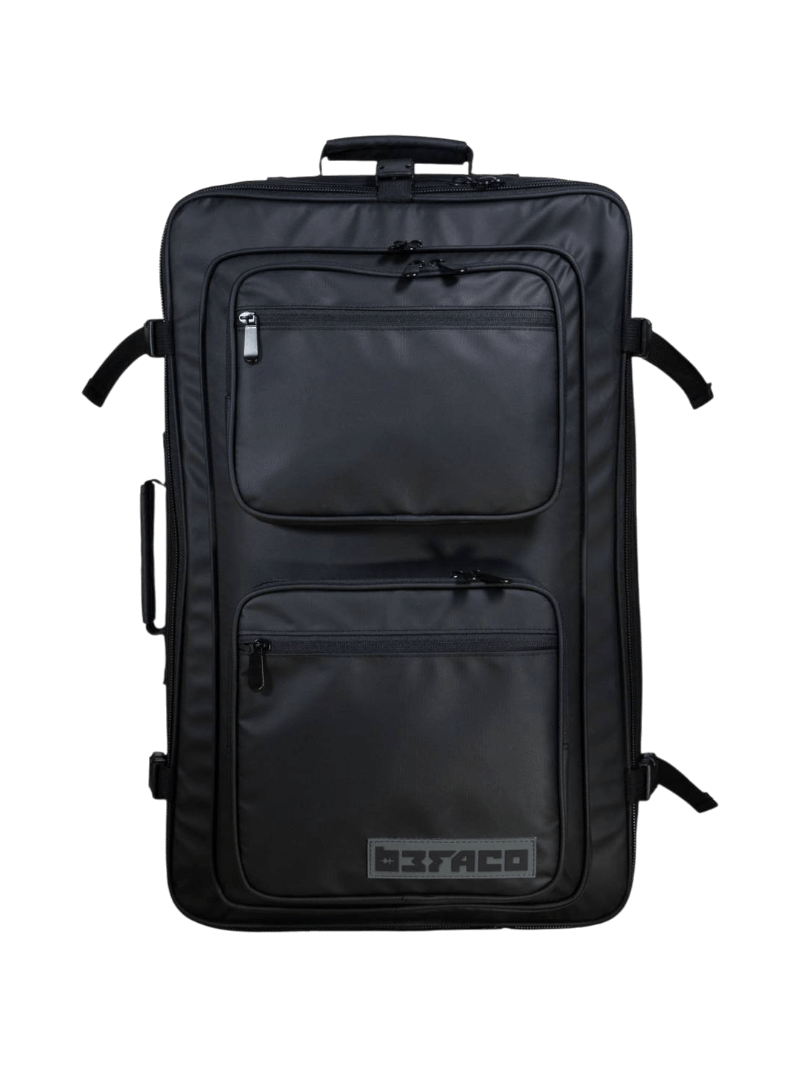

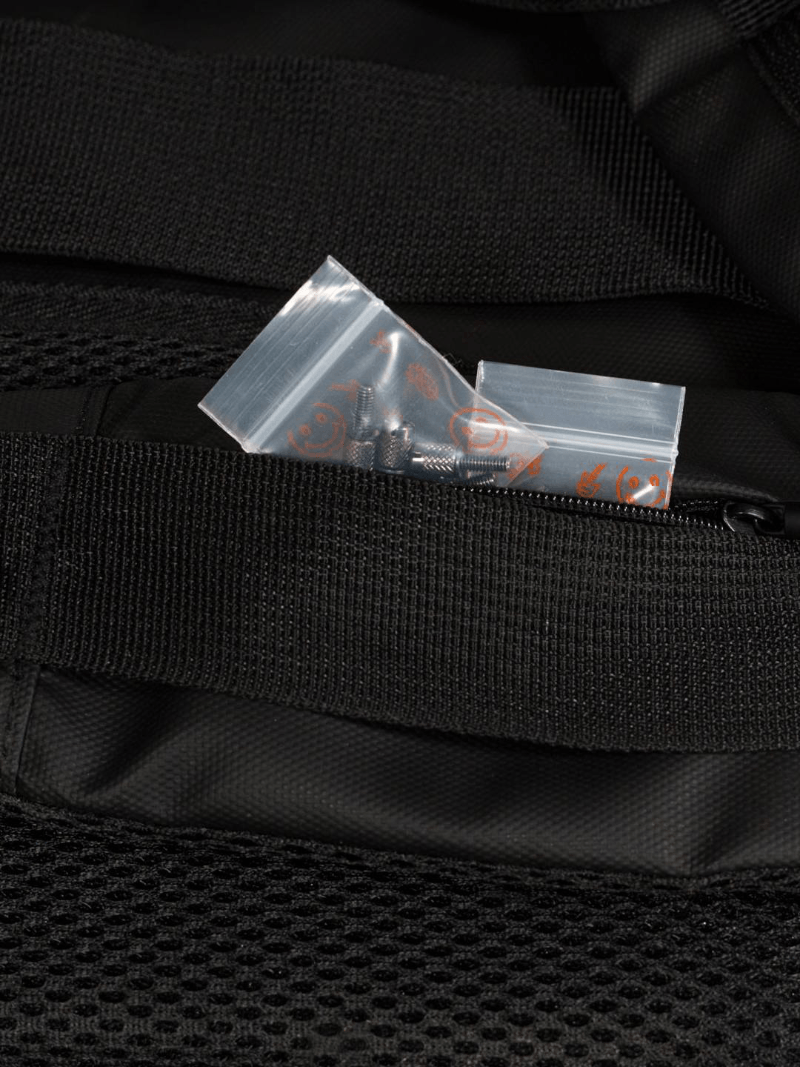

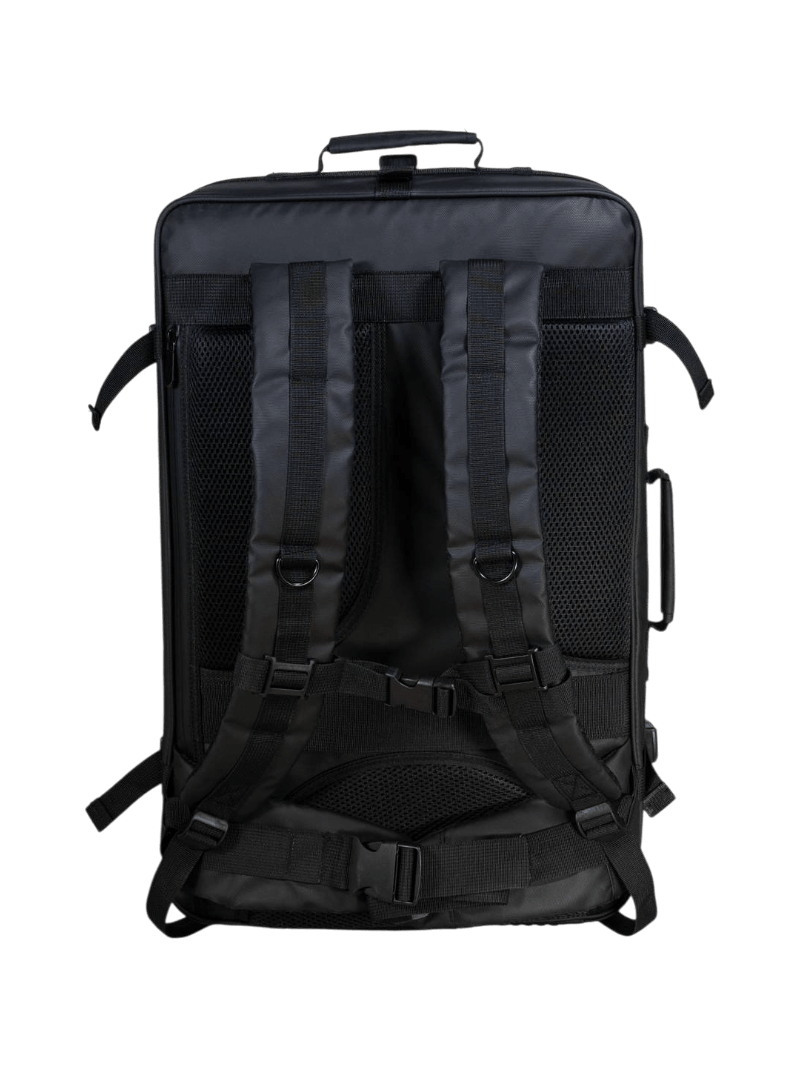

The included Befaco Modular Backpack is designed specifically for the 7U Case, making it easier to travel with your modular system. Its padded main compartment protects the case during transport, while the expandable design adds extra storage when needed. A rear laptop compartment, three front pockets, internal cable organizers and a hidden hip pocket provide space for cables, headphones, power supplies, Knurlies, screws and other small essentials.
Together, the case and backpack form a practical mobile Eurorack system for studio work, rehearsals, gigs and travel. The bundle is made for musicians who want a sturdy powered case and a matching carry solution that keeps the entire setup organized, protected and ready to move.
Features
• Complete bundle with Befaco 7U Case DIY Kit and Modular Backpack.
• 7U Eurorack case with 2 × 3U rows and 1 × 1U row, 104HP each.
• Intellijel-format 1U row and rear-panel connectivity.
• Powerful Trolley Bus power supply: +12V 5000mA, −12V 2500mA, 5V 4000mA.
• Slim black anodised aluminum case with clear PET-G cover.
• Rear connectors: 6 × 6.3mm jack I/O, MIDI DIN In/Out/Thru, USB-B and USB-A charging.
• Backpack designed specifically for the Befaco 7U Case.
• Soft padded main compartment and expandable storage.
• Laptop compartment, front pockets, cable organizers and hidden hip pocket.
• Travel-friendly solution for modular musicians, live setups and studio transport.
Case technical specs
• External dimensions without cover: 53.5 × 31 × 8 cm.
• External dimensions with cover: 53.5 × 31 × 14 cm.
• Internal rows: 2 × 3U 104HP + 1 × 1U 104HP.
• Module depth: 53mm on power supply side, 70mm elsewhere.
• Module slots: 36.
• Weight without cover: 2.6kg.
• Weight with cover: 3.4kg.
• Power brick: 135W, 2.5mm barrel connector, center positive, included.
• VESA 100 mounting threads and Kensington lock.
Backpack technical specs
• Outer dimensions, closed: 56 × 40 × 20 cm.
• Outer dimensions, expanded: 56 × 40 × 25 cm.
• Inner dimensions with padding: 53.5 × 31 × 14 cm.
• Inner dimensions without padding: 55 × 36 × 16 cm.
• Materials: external PU and polyester, nylon zipper, PP cotton padding.
• Country of origin: Spain; materials sourced from China.
| Color / Material: | Black Alu |
|---|---|
| Current out +5 V [mA]: | 4000 |
| Current out +12 V [mA]: | 5000 |
| Current out -12 V [mA]: | 2500 |
| DIY Level: | Medium/Advanced |
| Depth [mm]: | 70 |
| Max power input [W]: | 135 |
| Number of Power-Pinheader: | 36 |
| Power Input Type (pri.): | 9 - 36 Vdc / Barrel (5,5/2,5) |
| Width [HP]: | 208 |
| Format: | 3U + 3U + 1U |
Befaco is an Eurorack manufacturer that also offers DIY kits, organizes workshops and releases their designs under Creative Commons license.
In February 2010 Befaco was created as an open hardware platform focusing on professional DIY musical hardware, materializing the previous electronic, musical and artistic research of its members.
Our main activity has been developing synthesizer modules in eurorack
format and making them available in workshops. All this research is
published under CC-NC-SA License, so people can download the schematics,
and technical assembly guides, to make their own variations of the
projects for personal and educative purposes. Also build all our designs
during our regular workshops in cities as Barcelona, Madrid, London or
Berlin.
During the past twelve years, apart of these regular four
cities, we have visited cities as Tokyo, Kyoto, Toronto, Montreal,
Chicago, Frankfurt, Helsinki, Lyon, Stuttgart and Amsterdam, amongst
many other European cities.
These workshops are a huge test playground where we can track each module being built by different worldwide users, get direct feedback and quickly improve them with, develop new ones, or adapt these instruments to users demands constantly.
Direct contact with DIY enthusiasts allows an implication of users in the structure, allowing them to design their own modules and develop them in a professional way. This has developed into an incubation environment for several new modular initiatives, allowing different makers to start their own similar projects.
Befaco initiative is possible thanks to the support of Hangar, an artistic production centre in Barcelona, Barcelona city hall and the titanic work by the whole Befaco team.
Login
Manufacturer / Hersteller:
BEFACO Modular, S.L.
Pere IV 29-35
7° 6a
08018 Barcelona
Spain
sales@befaco.org
Product Safety Information
Please read this safety guide before installation or use.
Intended use
• The DIY case is intended for end-customer assembly as a housing for electronic or mechanical devices.
• If a closed plug-in or desktop power supply unit is included or later used, it is intended exclusively for supplying power to compatible devices.
• Both products must only be used as described in these instructions. Any other use may result in damage or safety risks such as fire, electric shock or injury.
Installation and use
DIY case
• Assemble only with the supplied parts and screws, following the instructions. Use suitable tools and avoid overtightening.
• Wear protective gloves to prevent injury from sharp edges. Work in a well-lit, ventilated environment.
• Ensure all parts are firmly fixed to avoid instability.
• Only install devices that fit properly within the housing and are suitable for operation in an enclosure with the given dimensions and ventilation.
Power supply units (if included or used)
• Insert the unit fully into the socket and connect only to devices with matching voltage, current and polarity.
• Use indoors only. Avoid damp, wet or dusty environments.
• Do not cover ventilation slots. Keep away from heat sources, direct sunlight and flammable materials.
• Do not pull the plug by the cable. Avoid kinking, pinching or damaging the cable. Replace the unit if the plug or cable is damaged.
• Use only original or manufacturer-approved power supply units.
Warnings
• Sharp edges on the DIY case may cause cuts. Wearing protective gloves during assembly is mandatory.
• Small parts such as screws pose a choking hazard for children.
• Improper assembly of the case may cause instability and injury.
• If electrical devices or a power supply unit are used, risk of overheating, sparking or fire exists.
• Power supply units operate with mains voltage. Never open the housing; risk of electric shock.
• Do not use a power supply unit if it is excessively warm, noisy or visibly damaged.
• Prevent contacts of the power supply unit from touching conductive objects to avoid short circuits.
• Keep both products out of reach of children. Improper handling may cause injury or damage.
Storage and cleaning
• Store both products in a dry, cool place, avoiding strong temperature fluctuations.
• Clean the DIY case with a dry cloth only. Do not use aggressive cleaning agents.
• Disconnect the power supply unit before cleaning. Wipe with a dry or slightly damp cloth only. Never use water or detergents.
Contact Information
For further information visit the manufacturers homepage our shop support team at:
Tech Creation Lab Leipzig UG (haftungsbeschränkt)
Selneckerstr. 26, 04277 Leipzig, Germany
support@exploding-shed.com
Product Safety Information
Please read this safety guide before installation or use.
Intended use
• The case is intended solely as a housing for electronic or mechanical devices.
• If a closed plug-in or desktop power supply unit is included or later used, it is intended exclusively for supplying power to compatible devices.
• Both products must only be used as described in these instructions. Any other use may result in damage or safety risks such as fire, electric shock or injury.
Installation and use
Case
• Use only with devices that fit properly within the housing and are suitable for operation in an enclosure with the given dimensions and ventilation.
• Ensure that devices installed in the case do not overheat and are used according to their specifications.
Power supply units (if included or used)
• Insert the unit fully into the socket and connect only to devices with matching voltage, current and polarity.
• Use indoors only. Avoid damp, wet or dusty environments.
• Do not cover ventilation slots. Keep away from heat sources, direct sunlight and flammable materials.
• Do not pull the plug by the cable. Avoid kinking, pinching or damaging the cable. Replace the unit if the plug or cable is damaged.
• Use only original or manufacturer-approved power supply units.
Warnings
• Sharp edges on the case may cause cuts. Handle with care and wear gloves if necessary.
• Small parts such as screws pose a choking hazard for children.
• If electrical devices or a power supply unit are used, risk of overheating, sparking or fire exists.
• Power supply units operate with mains voltage. Never open the housing; risk of electric shock.
• Do not use a power supply unit if it is excessively warm, noisy or visibly damaged.
• Prevent contacts of the power supply unit from touching conductive objects to avoid short circuits.
• Keep both products out of reach of children. Improper handling may cause injury or damage.
Storage and cleaning
• Store both products in a dry, cool place, avoiding strong temperature fluctuations.
• Clean the case with a dry cloth only. Do not use aggressive cleaning agents.
• Disconnect the power supply unit before cleaning. Wipe with a dry or slightly damp cloth only. Never use water or detergents.
Contact information
For further information visit the manufacturer’s homepage or our shop support team at:
Tech Creation Lab Leipzig UG (haftungsbeschränkt)
Selneckerstr. 26, 04277 Leipzig, Germany
support@exploding-shed.com
