Black Noise Modular - Eclipse

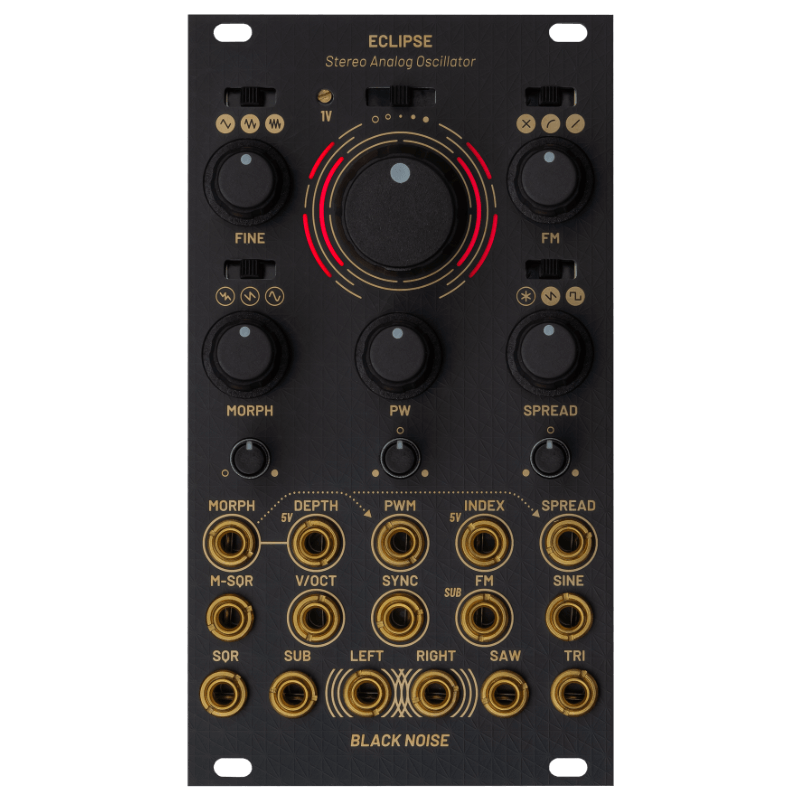

Product information "Black Noise Modular - Eclipse"
At the heart of Eclipse is a high-precision analog triangle oscillator that tracks accurately over ten octaves. The module provides the full set of inputs and outputs you’d expect from a high-quality VCO, ensuring reliable integration into any Eurorack system.
A central feature of Eclipse is its custom waveshaper, inspired by the EMS VCS3. Instead of a conventional wavefolder, this circuit generates rich and complex harmonics with wide-ranging sonic possibilities and dynamic control.
The waveshaper concept is expanded into the stereo domain. The result is a dedicated stereo section that allows waveforms to move and spread across the stereo field while maintaining balance, adding a strong spatial dimension to synthesis.
Eclipse offers full CV control for all parameters, with smart normalization that enables global modulation from a single source. Additional functions such as XFM, ULFO, Stereo Pulse Array Modulation, Stereo Pulsed Saw Modulation, and RM/AM modes extend the module’s capabilities far beyond those of a conventional VCO.
Features:
• Analog Stereo Morphing Oscillator
• 100% Analog Module
• Single high-precision triangle core VCO
• 10-octave tracking range with high temperature stability
• Morphing waveshaper with 3 modes original circuit design
• 2 stereo modes : SPAM Stereo Pulse Array Modulation, SPSM Stereo Pulsed Saw Modulation
• 1 quadrature mode : MorphX can be used for wave blending and RM/AM, sidechain ducking
• LFO and ULFO modes cycles up to 1h
• 3 FM modes: linear, exponential, and custom Xtreme mode
• Index input for dynamic FM
• Voltage control of both waveshaping and CV depth
• Extra square wave based on the waveshaper’s output
• Individual outputs: Sine, Triangle, Saw, Square, Sub, Morph-Square
• Balanced image with voltage-controlled stereo spread
• CV over all parameters
• Global modulation hub normalization
DIY-Kit-Type:
SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
| Current draw +12 V [mA]: | 128 |
|---|---|
| Current draw -12 V [mA]: | 113 |
| DIY Level: | Medium |
| Depth [mm]: | 30 |
| Width [HP]: | 14 |
| Format: | 3U |
| Panel / Color: | Black FR4 |
