Products of Black Noise Modular

Black Noise Modular specializes in the production of handcrafted boutique Eurorack modules in Dijon, France. They design distinctive, innovative and high-quality tools for sound explorers who want to delve into unexplored sonic worlds. Their commitment to quality, sound and functionality is rock solid, allowing you to unleash your creativity with ease.

Black Noise Modular - Cosmos

only 1 left

Cosmos is a new kind of module that will help you to creating complex modulation, sounds, patterns with ease and will lead you to new sounds territories.Inspired by early analog computers, Cosmos is a unique, innovative, very flexible and fully analog module allowing it to be used as: VCO, LFO, Ring Mod, Polarizer, “VCA”, “LPG”, Phase Lock Loop, Cross-Modulation, Minimum, Maximum, Logic Gates, Waveshaper, Complex gate generator, Fuzz, Distorsion, Gate extractor, Trig extractor, Gate generator, Voltage generator, Trig Generator, comparator, window comparator, complex comparator, Half-Rectifier, Full-Rectifier, Inverter, Buffered Multiples, Mixer, Difference, Compressor, Sidechain, compressor, VC Clipper, VC Switch, Clock doubler, Envelope follower, and more.With its wide fields of application Cosmos can replace many modules but it will also bring new colors to your palette thanks to its unique character. This makes Cosmos the ideal module whether you have a small case or a big system. 100% analog and with an intuitive interface Cosmos is also very easy to use, no menu and button combo problems.Inspired by the past and crafted for the future, 100% analog Cosmos was not only thought to be the center of any system but also to blend perfectly with the rest of your case to form a consistent and coherent system.Cosmos was designed not only to be a swiss army knife module but also to push you to explore and you help create new sounds and explore sonic territories that were previously unattainable.DIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.

€291.00*

Black Noise Modular - Dual Buffered Multiple - S (1U)

only 2 left

DBM-S is the simplest yet ultimate 1U solution to distribute incoming signals to up to 8 destinations without signal loss, distortion, or interference.DBM-S clever design provides you maximum flexibility, use it a dual channel to create 4 buffered copies of 2 signals or as single channel and get up to 8 buffered copies of the same signal!Build with high-quality components for low noise and high accuracy, DBM-S create perfect copies of the original signal even for pitch CV. After all, quality isn't just a feature, it's our commitment.We believe that form must follows function, but great design blends them seamlessly. With our black and gold signature, DBM-S is not just a high quality utility, it’s a part of a system where each part contributes to the overall strength and quality of this system.DIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.

€59.00*

Black Noise Modular - Dual Combinator

available

DC is a unique and innovative module that combines the strength of both Averager and Unity Gain mixers without their weaknesses. Along with some additional unique features that make it stand out from other mixers on the market.To create DC we had to rethink the mixer, start from scratch, try new design, prototype many circuits and fail in order to succeed. The result is DC a new type of mixer that offer low noise floor, stable output signal and mix accurately signal without introducing any distortion, clipping, attenuation or unwanted noise and those regardless of the number of inputs signals or their gain.We called this new mixer design a «Combinator,» and the name «DC» stands for «Dual Combinator.» This versatile mixer can function as a dual-channel, mixing up to 3 inputs into a single output, or as a single-channel, allowing up to 5 inputs to be mixed into a single output.We put time and effort into the design of DC because we think that it is an essential module in any Eurorack system. It offers a ratio size, functionality, simplicity that no other mixer offers.DC may seem like a simple utility module, but make no mistake, small things done well can make a big difference.DIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.

€75.00*

Black Noise Modular - Dual Combinator - S (1U)

available

DC-S is a unique and innovative module that combines the strength of both Averager and Unity Gain mixers without their weaknesses. Along with some additional unique features that make it stand out from other mixers on the market.To create DC-S we had to rethink the mixer, start from scratch, try new design, prototype many circuits and fail in order to succeed. The result is DC-S a new type of mixer that offer low noise floor, stable output signal and mix accurately signal without introducing any distortion, clipping, attenuation or unwanted noise and those regardless of the number of inputs signals or their gain.We called this new mixer design a «Combinator,» and the name «DC-S» stands for «Dual Combinator.» This versatile mixer can function as a dual-channel, mixing up to 4 inputs into a single output, or as a single-channel, allowing up to 7 inputs to be mixed into a single output.We put time and effort into the design of DC-S because we think that it is an essential module in any Eurorack system. It offers a ratio size, functionality, simplicity that no other mixer offers.DC-s may seem like a simple utility module, but make no mistake, small things done well can make a big difference.DIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.

€75.00*

Black Noise Modular - Dual Multi

available

DUAL MULTI is a dual buffered multiples.It can be configured as 1 input 6 outputs 1:6 or 2 inputs and 3 outputs each 1:3.Input 2 is normaled to input 1, if nothing is plugged into input 2 you will have 6 copies of input 1 else you will have 3 copies of input 1 and 3 copies of input 2.Buffered multiples have advantages over passive multiples. Since passive multiples split the signal, in case of voltage-critical signal such as V/Oct to VCO, the pitch will vary from one output to the other. With buffered multiples each output will be a perfect copy of the input. Because buffered multis isolate their outputs from the input, any faults or shorts present at the input will not pass through to a connected module.DIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.

€69.00*

Black Noise Modular - Dual Rectifier 2

only 2 left

Dual Rectifier II is a small yet versatile and essential module for any Eurorack system. It can be used as an AC to DC converter, a distorsion, a complex waveform generator, a frequency doubler, a clock doubler or an envelope follower and more.Like all our modules, Dual Rectifier II is built with high-quality components only and designed to offer the best performance.Whether you're starting a small system or have a wall full of modules, Dual Rectifier II is a must-have for any Eurorack system.DUAL RECTIFIER II is divided into two sections:On top section the Positive Rectifier offer 1 input and 3 outputs :-Output 1 is an Inverted copy of input 1.-Output 2 Half-rectified, signal from input 1 below 0V will be remove.-Output 3 Full-rectified, signal from input 1 below 0V will be rectified.On bottom section the Negative Rectifier offer 1 input and 3 outputs :-Output 1 is an Inverted copy of input 2.-Output 2 Half-rectified, signal from input 2 above 0V will be remove.-Output 3 Full-rectified, signal from input 2 above 0V will be rectified.By default input 2 is normaled to output 1 (inverted) of the top section.DIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.

€75.00*

Black Noise Modular - Dual Rectifier 2

available

€75.00*

Black Noise Modular - Dual Rectifier 2 - S (1U)

only 2 left

Dual Rectifier II - S is a small yet versatile and essential module for any Eurorack system. It can be used as an AC to DC converter, a distorsion, a complex waveform generator, a frequency doubler, a clock doubler or an envelope follower and more.Like all our modules, Dual Rectifier II is built with high-quality components only and designed to offer the best performance.Whether you're starting a small system or have a wall full of modules, Dual Rectifier II - S is a must-have for any Eurorack system.DUAL RECTIFIER II - S is divided into two sections:On top section the Positive Rectifier offer 1 input and 3 outputs :-Output 1 is an Inverted copy of input 1.-Output 2 Half-rectified, signal from input 1 below 0V will be remove.-Output 3 Full-rectified, signal from input 1 below 0V will be rectified.On bottom section the Negative Rectifier offer 1 input and 3 outputs :-Output 1 is an Inverted copy of input 2.-Output 2 Half-rectified, signal from input 2 above 0V will be remove.-Output 3 Full-rectified, signal from input 2 above 0V will be rectified.By default input 2 is normaled to output 1 (inverted) of the top section.DIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.

€75.00*

Black Noise Modular - Dual Rectifier 2 - S (1U)

only 2 left

€75.00*

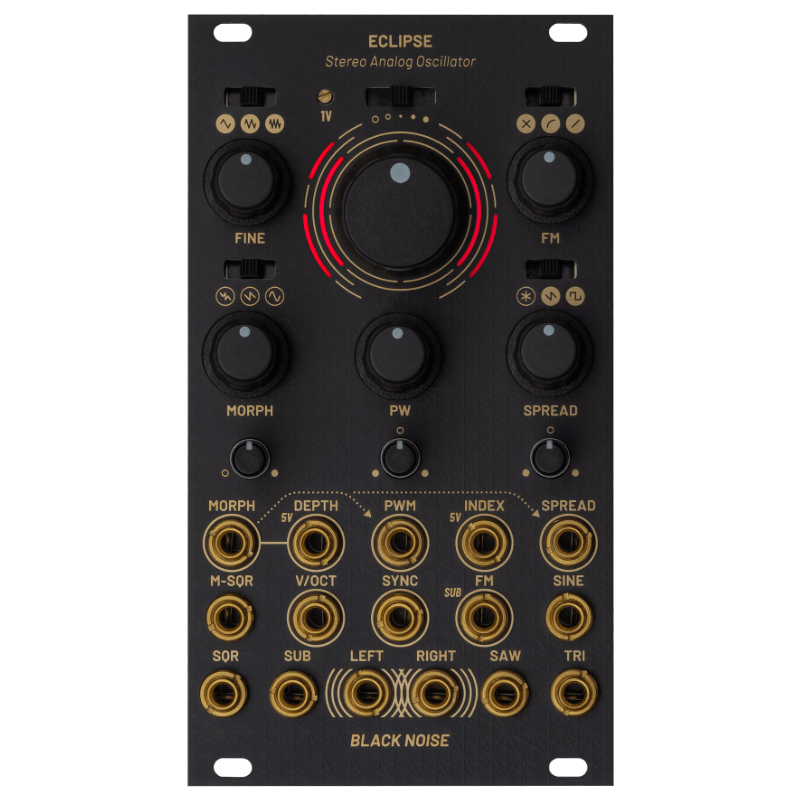

Black Noise Modular - Eclipse

only 2 left

The Eclipse is an analog stereo morphing oscillator that combines the sound character of classic analog oscillators with modern features for advanced sound design.At the heart of Eclipse is a high-precision analog triangle oscillator that tracks accurately over ten octaves. The module provides the full set of inputs and outputs you’d expect from a high-quality VCO, ensuring reliable integration into any Eurorack system.A central feature of Eclipse is its custom waveshaper, inspired by the EMS VCS3. Instead of a conventional wavefolder, this circuit generates rich and complex harmonics with wide-ranging sonic possibilities and dynamic control.The waveshaper concept is expanded into the stereo domain. The result is a dedicated stereo section that allows waveforms to move and spread across the stereo field while maintaining balance, adding a strong spatial dimension to synthesis.Eclipse offers full CV control for all parameters, with smart normalization that enables global modulation from a single source. Additional functions such as XFM, ULFO, Stereo Pulse Array Modulation, Stereo Pulsed Saw Modulation, and RM/AM modes extend the module’s capabilities far beyond those of a conventional VCO.Features:• Analog Stereo Morphing Oscillator• 100% Analog Module• Single high-precision triangle core VCO• 10-octave tracking range with high temperature stability• Morphing waveshaper with 3 modes original circuit design• 2 stereo modes : SPAM Stereo Pulse Array Modulation, SPSM Stereo Pulsed Saw Modulation• 1 quadrature mode : MorphX can be used for wave blending and RM/AM, sidechain ducking• LFO and ULFO modes cycles up to 1h• 3 FM modes: linear, exponential, and custom Xtreme mode• Index input for dynamic FM• Voltage control of both waveshaping and CV depth• Extra square wave based on the waveshaper’s output• Individual outputs: Sine, Triangle, Saw, Square, Sub, Morph-Square• Balanced image with voltage-controlled stereo spread• CV over all parameters• Global modulation hub normalizationDIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.

€339.00*

Black Noise Modular - EG-LFO 2

available

As its name implies, EG LFO is composed of an Envelope Generator and an LFO.The envelope generator offers control over Rise, Hold and Fall time. Two ranges of envelopes are available: slow and fast. You can also modify the speed off the fast mode using the speed expander on the back of the module.At the output you will find the envelope output and an inverted copy of the envelope.EG LFO II also features a LFO mode, the speed can be controlled by using the rise and fall control. Two speed modes are available, LFO range in slow mode and audio range in fast mode. You can modify the speed off the fast mode using the speed expander on the back of the module.At the output you will find the LFO output and an inverted copy of the LFO.DIY-Kit-Type:SMD-Kit-2. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. It includes SMD and through-hole parts! For build guide, more info, videos etc. please check the buttons below.

€79.00*

Black Noise Modular - EG-LFO 2

available

€79.00*

Black Noise Modular - GOMA (discontinued)

sold out at the moment

THERE IS A NEW VERSION: GOMA IIGOMA stands for Generator, Offset, Mixer, Attenuverter.The idea behind GOMA was to make an improved version of the classic 3 Attenuator / Attenuverter modules.We wanted to design a high-end, yet small module so it could fit in any case. We want it to be ergonomic and easy to use despite its size. But we also wanted to pack as much features as possible in it to make it a "swiss knife module".The result is GOMA a 4 HP modules made of high-end components for max precision (low tolerance resistors, low noise/distortion opamps). Each channel can be set as Attenuator or Attenuverter using the dedicate switch. Each channel can be normalized to +5 or +10V using the dedicate switch. We have taken great care in the design and choice of switches to avoid switching by accident when tweaking the knobs. We have added LEDs to make it easy to use in dark environments. We have added feedback LEDs on each channel so you can spot the state of the output at anytime.And we added, which is maybe the best feature, daisy chain! You can easily daisy chain multiple GOMA modules to create virtually infinite mixer/offset generators.GOMA is 100% analog so the switches keep there states even when your rack is off.GOMA is so flexible that we use it in all our patchs, we are very pleased about it and we hope you'll like it as much as we do.DIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.

€75.20* €94.00* (20% saved)

Details

Black Noise Modular - GOMA II

available

GOMA II is our new take on the classic attenuvertermixer concept. It stands for Generator, Offset, Mixer, Attenuverter.Featuring 4 channels within a 4HP width, GOMA II pushes the boundaries of space efficiency, maintaining intuitive operation and high-end components for max precision (low tolerance resistors, low noise/distortion opamps).GOMA II offers 4 channels to attenuate or polarize (attenuverter) any audio or CV signal. Additionally, each channel can act as a high precision voltage generator (–5V to +5V) to offset another channel or control external parameters.The 4 channels can be processed separately or summed through cascade mixing, which can extend further than a single module since all the GOMA family (I, II, Pro) can be daisy chained to unlock virtually infinite mixing.DIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.

€79.00*

Black Noise Modular - GOMA Pro

available

The GOMA Pro pushes the boundaries of the attenuverter-mixer concept.Attenuator, attenuverter, offset generator, voltage generator, waveshaper, distorsion, GOMA Pro can do all of that and more. Engineered for precision, GOMA Pro is crafted using high-quality components to ensure maximum accuracy, including low-tolerance resistors and low-noise op-amps.GOMA Pro offers 3 channels fully analog to amplify (up to x10 gain!), attenuate or polarize (attenuverter) any signal, from CV, audio to line level sources.Additionally, each channel can act as a high precision voltage generator (–10V to +10V) to offset another channel or control external parameters.The 3 channels can be processed separately or summed through cascade mixing, which can extend further than a single module since all the GOMA family (I, II, Pro) can be daisy chained to unlock virtually infinite mixing.DIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.

€110.00*

Black Noise Modular - Pipe

sold out at the moment

Now introducing PIPE in our sleek Black & Gold theme, featuring a reversible faceplate. Feel like installing your PIPE upside down? No worries – just unscrew the 8 jnuts, flip the faceplate, and put everything back together and Voila! You can now use your PIPE with the connector facing down!With the ability to connect up to 8 inputs or outputs via an ethernet cable, the PIPE-S makes it easy to connect multiple cases together or avoid any cable mess accross a case. This makes it the perfect solution for simply setting up your Eurorack system in the studio or a live gig.But that's not all, PIPE can also be used as a multiple passive 3 section. Want to transmit precise signals like pitch CV and want to avoid crosstalk induced by passive multiples? No worries you can easily deactivate this function for each section from the connector at the back of the module.The best part is that PIPE is completely passive which means you can place it anywhere, it doesn't draw any current from your power supply, which perhaps makes it the simplest DIY module!PIPE modules are sold by pair.The ethernet cable is not supplied with the modulesRegarding Ethernet cableWe recommend shielded Straight-Thru RJ45 cable.Using un-shielded or Crossover cable won't damage your modules but you may experience noise and or mixed channels.Due to its passive nature we also recommend to avoid long ethernet cables.DIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.

€79.00*

Details

Black Noise Modular - Pipe

sold out at the moment

€79.00*

Details

Black Noise Modular - Pipe - S (1U)

available

With the ability to connect up to 8 inputs or outputs via an ethernet cable, the PIPE-S makes it easy to connect multiple case together or avoid any cable mess accross a case. This makes it the perfect solution for simply setting up your Eurorack system in the studio or a live gig.But that's not all, PIPE-S can also be used as a multiple passive 3 section. Want to transmit precise signals like pitch CV and want to avoid crosstalk induced by passive multiples? No worries you can easily deactivate this function for each section from the connector at the back of the module.The best part is that PIPE-S is completely passive which means you can place it anywhere, it doesn't draw any current from your power supply, which perhaps makes it the simplest DIY module!PIPE-S modules are sold in pairs.The ethernet cable is not supplied with the modulesRegarding Ethernet cableWe recommend shielded Straight-Thru RJ45 cable.Using un-shielded or Crossover cable won't damage your modules but you may experience noise and or mixed channels.Due to its passive nature we also recommend to avoid long ethernet cables.DIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.

€79.00*

Black Noise Modular - Pipe - S (1U)

available

€79.00*

Black Noise Modular - QBI

available

The idea behind QBI is to fulfill two fundamental functions when patching:• Duplicate a signal• Invert a signalThese are two basic yet important and essential functions when patching. But even though they are important, we wanted them to take up as little space as possible.Therefore we imagined QBI, a module of only 2HP capable of:• Invert 4 different signals with very high precision.• Duplicate a signal on 3 outputs without losses.• Duplicate and invert a signal on 4 outputs without losses.And the best of all is that you can add these different functions together to always meet your needs when patching.DIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.

€75.00*
