Products of Dailywell

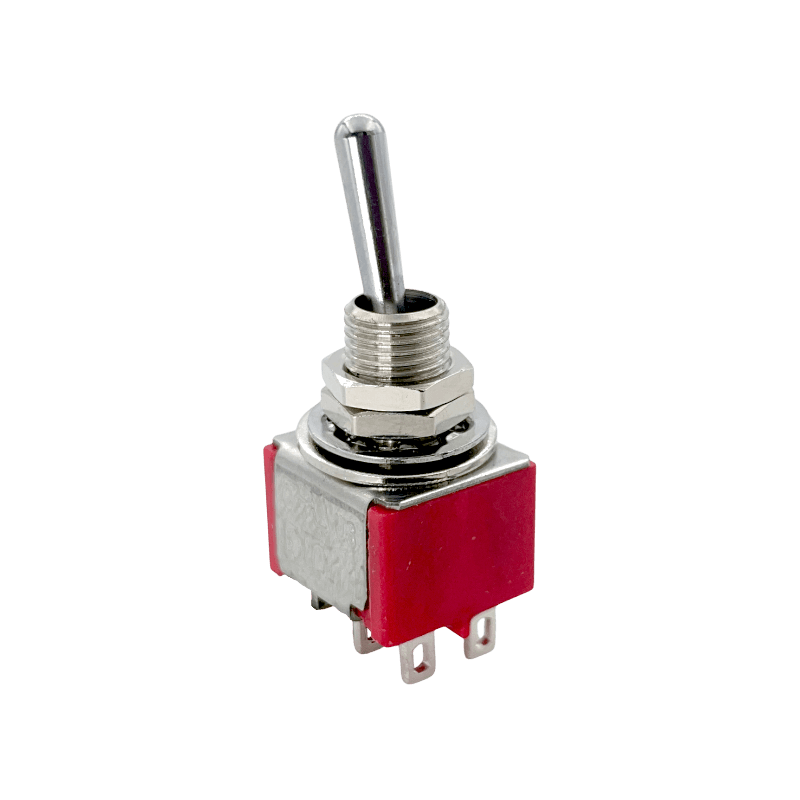

Dailywell - 1M Series (Mini DPDT On-On Lugs & Thread)
available
Lugs & Thread version.High quality subminiatur DPDT switch on/on, made by Daily Well.Technical Specifications:Current Rating: 5A @ 120VAC or 28VDCBody Length: 12.7mmBody Width: 11.43mmBody Height: 8.89mmPin Size(WxTxH): 2.03mmx0.76mmx3.96mmPin Spacing: 4.70mmMounting Hole: 6.35mm diameterOverall Height: 32.15mm
€1.59*
Dailywell - 1M Series (Mini SPDT On-On Lugs & Thread)
available
High quality subminiatur SPDT switch on/on, made by Dailywell.Technical Specifications:Switch Function: ON-ONSwitch Type: LatchingLightweight ConstructionStandard Hole MountingCurrent Rating: 5A @ 120VAC or 28VDCBody Length: 12.7mm, Body Width: 6.86mm, Body Height: 8.89mmActuator Length: 5.08mmPin Size(WxTxH): 2.03mmx0.76mmx3.96mmPin Spacing: 4.70mmMounting Hole: 6.35mm diameterOverall Height: 26.87mm
€1.59*

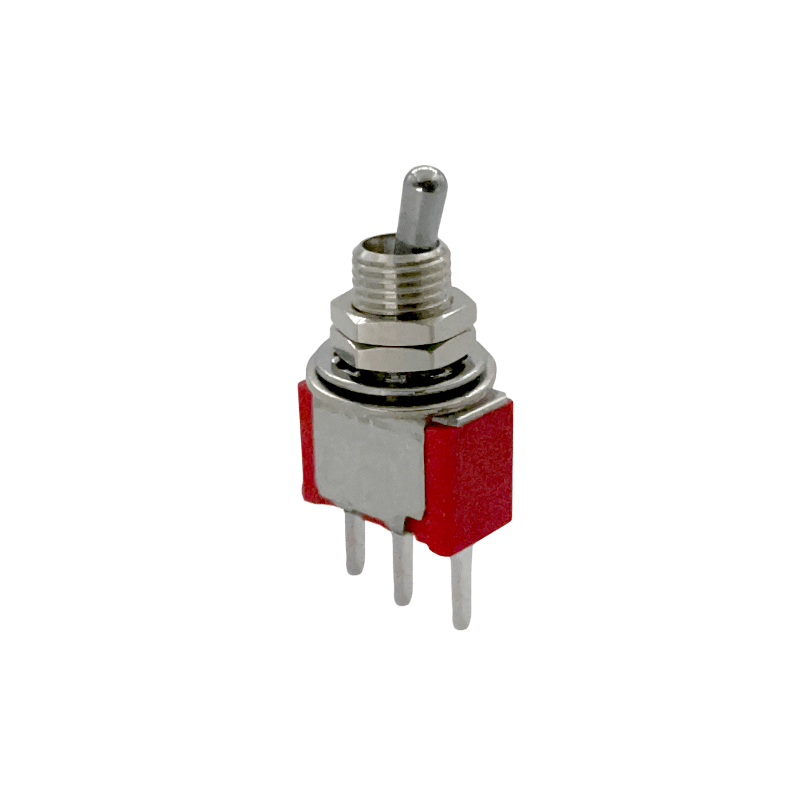

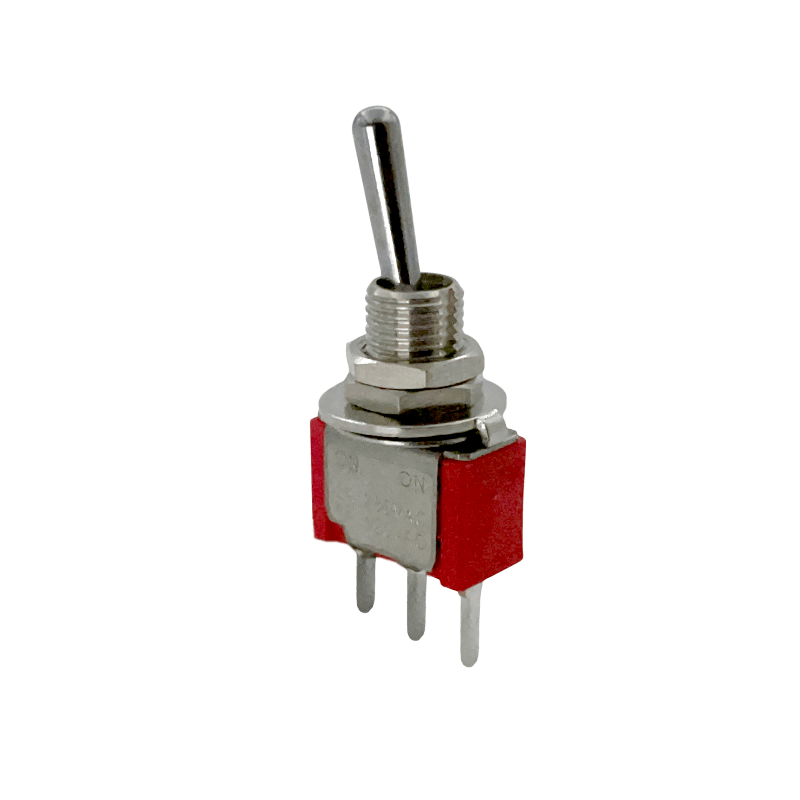

Dailywell - 1M Series (Mini SPDT On-On PC)
available
High quality subminiatur SPDT switch on/on, made by Dailywell.Technical Specifications:Switch Function: ON-ONSwitch Type: LatchingLightweight ConstructionPC Thru-HoleCurrent Rating: 5A @ 120VAC or 28VDCBody Length: 12.7mm, Body Width: 6.86mm, Body Height: 8.89mmActuator Length: 5.08mmPin Size(WxTxH): 1.27mmx0.76mmx5.10mmPin Spacing: 4.70mmMounting Hole: 6.35mm diameterOverall Height: 29.5mm
€1.59*
Dailywell - 1M Series (Mini SPDT On-On PC)
available
High quality subminiatur SPDT switch on/on, made by Dailywell.Technical Specifications:Switch Function: ON-ONSwitch Type: LatchingLightweight ConstructionPC Thru-HoleCurrent Rating: 5A @ 120VAC or 28VDCBody Length: 12.7mm, Body Width: 6.86mm, Body Height: 8.89mmPin Size(WxTxH): 1.27mmx0.76mmx5.10mmPin Spacing: 4.70mmMounting Hole: 6.35mm diameterOverall Height: 34.6mm
€1.59*
