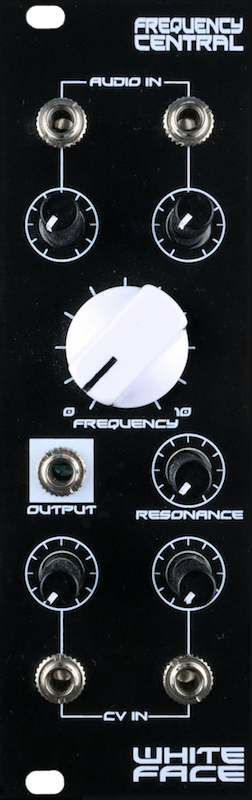

Product information "Frequency Central - Whiteface"
Whiteface is based on the legendary ARP4023 VCF module often found in the “whiteface” ARP Odyssey Mk1. I’ve engineered out the rare parts and the need for matched transistors for the CV input section by using a Roland-inspired circuit there instead, no change to the vibe though!

The audio path remains pure ARP, with one exception – built as specified on the schematic, the resonance would clip in a way which is neither musical or desirable when set too high. I’ve come across a couple of other versions which have this ‘don’t turn it up past 8’ trait, but I went further and engineered that out – a single resistor value change. In Whiteface, the resonance is usable and musical over the entire range!

DIY-Kit-Type:
THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
Current draw +12 V [mA]: 7
Current draw -12 V [mA]: 6
DIY Level: Easy
Depth [mm]: 35
Width [HP]: 8
Format: 3U
Panel / Color: Black Alu
Manufacturer "Frequency Central"
