Music Thing Modular - Workshop System
Product information "Music Thing Modular - Workshop System"
The system includes 14 analog and digital modules, ranging from vintage-style oscillators and filters to a programmable digital Computer module with swappable program cards. It works standalone inside its custom case or can be mounted in a Eurorack system (42 HP).
You can use the system for crafting pure tones, exploring feedback loops, integrating guitar pedals, or writing your own firmware – the Workshop System invites hands-on discovery and creative exploration.
Features:
• Complete modular synth in a compact, case-mounted 42HP format
• Includes 14 modules: oscillators, filters, mixer, ring mod, stompbox loop, envelope generators, and more
• Powerful Computer module with RP2040 brain and reprogrammable program cards
• Runs on USB-C (Power Delivery!) power (15 V) or standard Eurorack barrel input (15-25 V DC)
• Works with audio sources, guitar pedals, microphones, and external MIDI/CV gear
• Designed for experimentation, hacking, education – and serious music making
The kit does not include:

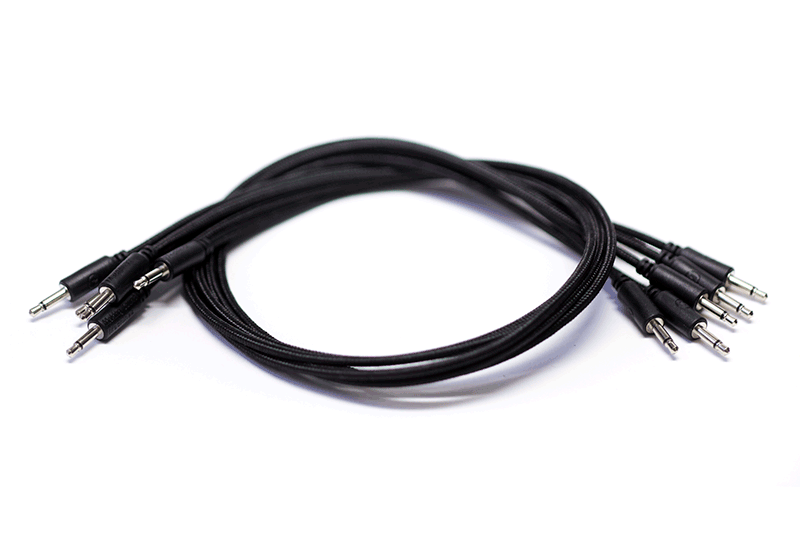

• Eurorack patch cables – we figure that many users of modular synths already have patch cables lying around – but if you’re just starting out and would like a set of short patch cables then we have a cable set available HERE• A power cable – The Workshop System has two power options: The easiest way is via USB-C PD power, but you can also use a regular 15-25 V DC barrel connection like THIS. The system will happily run from battery powerbanks and laptop adaptors. We feel that there are already enough USB-C cables in the world.
DIY-Kit-Type:
SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
| Current draw +12 V [mA]: | 250 |
|---|---|
| DIY Level: | Medium |
| Depth [mm]: | 95 |
| Length [mm]: | 200 |
| Power Input Type (pri.): | 15 - 20 Vdc / Barrel (5,5/2,5) |
| Power Input Type (sec.): | 15 Vdc / USB Type C |
| Width [mm]: | 240 |
| Format: | 3U |
| Panel / Color: | Black FR4 |
Login
Manufacturer / Hersteller:
Thonk Ltd.
Vantage Point
Unit 14, Floor 6
BN1 4GW Brighton
UK
support@thonk.co.uk
EU responsible:
Tech Creation Lab Leipzig UG (haftungsbeschränkt)
Nonnenstrasse 19
04229 Leipzig, Germany
support@exploding-shed.com
WEEE-Nr.: DE94097895
Product Safety Information
Please read this safety guide before installation or use.
Important Notice & Intended Use
• This kit is intended for adult users experienced in electronics and modular synthesis.
• Assembly, including soldering, is required.
• Proper testing and installation are essential to ensure safe and functional operation.
• The completed product is intended as a desktop / standalone unit and is powered by an external DC power supply or battery.
General Warnings
Electrical Hazards:
• Make sure the power supply matches the voltage and current ratings specified for the device (see the product manual). Using the wrong voltage can damage the module and create a safety hazard.
• Wrong polarity can damage your device, make sure the unit is connected with correct polarity.
Heat Generation:
• The device or power supply may generate heat during operation. Do not cover one of them.
Sharp Edges:
• The device’s faceplate and components may have sharp edges. Handle with care to prevent cuts or scratches.
Small Parts:
• Contains small parts that could cause a choking hazard. Keep away from children and pets.
Compatibility:
• This module is intended for use only with devices operating at Eurorack or line level. Connecting it to incompatible systems may cause damage or malfunction.
Assembly Requirements
• Soldering skills are required to complete the unit.
• Ensure a clean, well-lit and ventilated workspace free of flammable materials during assembly.
• Use appropriate tools and safety equipment, such as eye protection.
Testing
• Test the module thoroughly for shorts or incorrect assembly before powering it up. When the unit has malfunctions due to incorrect assembly, the unit or power supply might be damaged.
• Use a multimeter or other appropriate tools to confirm proper functionality.
Installation and Use
• Use only the included or manufacturer-recommended power cable and/or power supply.
• Follow the module's user guide for instructions on operation. Do not exceed the input/output limits specified.
Responsibility
Users are solely responsible for proper assembly and testing. Contact manufacturer support for assistance if needed.
Environmental Safety
• Dispose of the module, its components, and packaging in accordance with local electronic waste regulations.
Liability Disclaimer
• The manufacturer or distributor is not responsible for any injury, damage, or malfunction resulting from improper installation, use, or modification of this product.
